Irritrol - 205TF - 1'' 205 Series Valve w/ Flow Control (FPT x FPT)
Irritrol - 205TF - 1'' 205 Series Valve w/ Flow Control (FPT x FPT) is backordered and will ship as soon as it is back in stock.

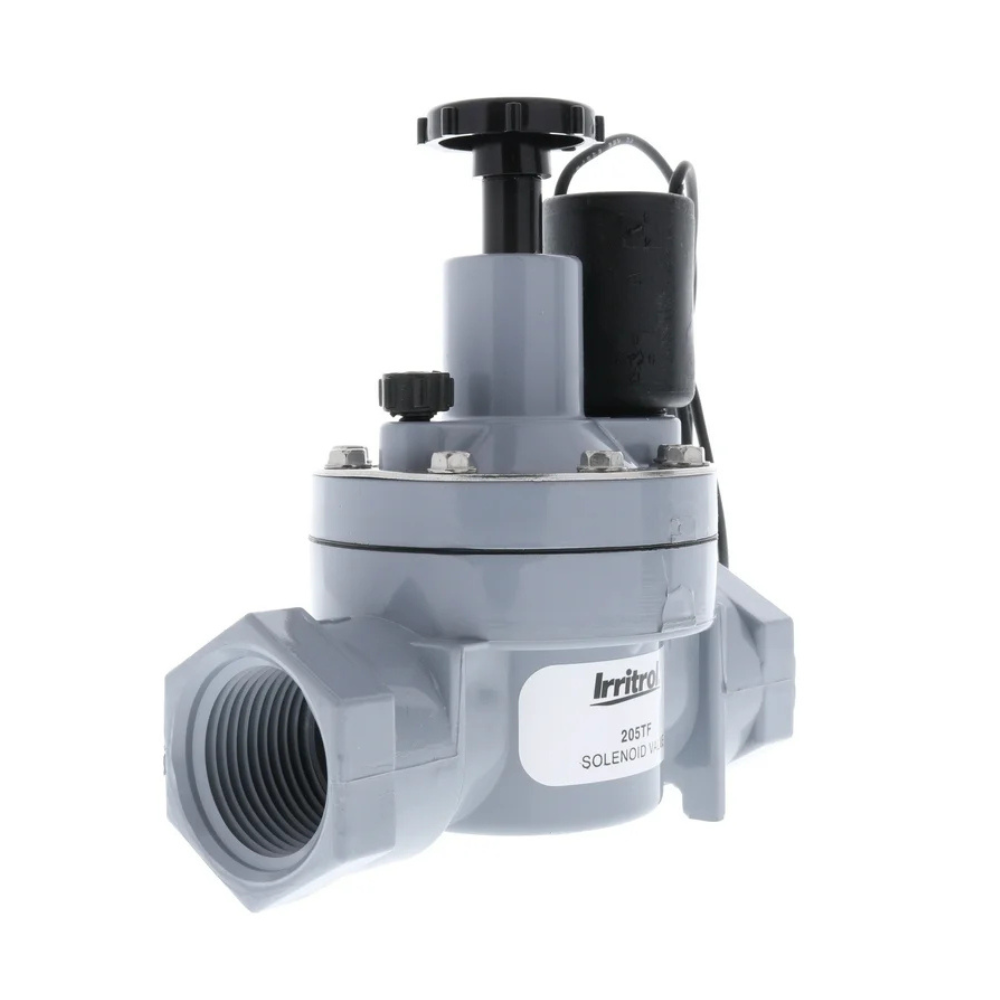

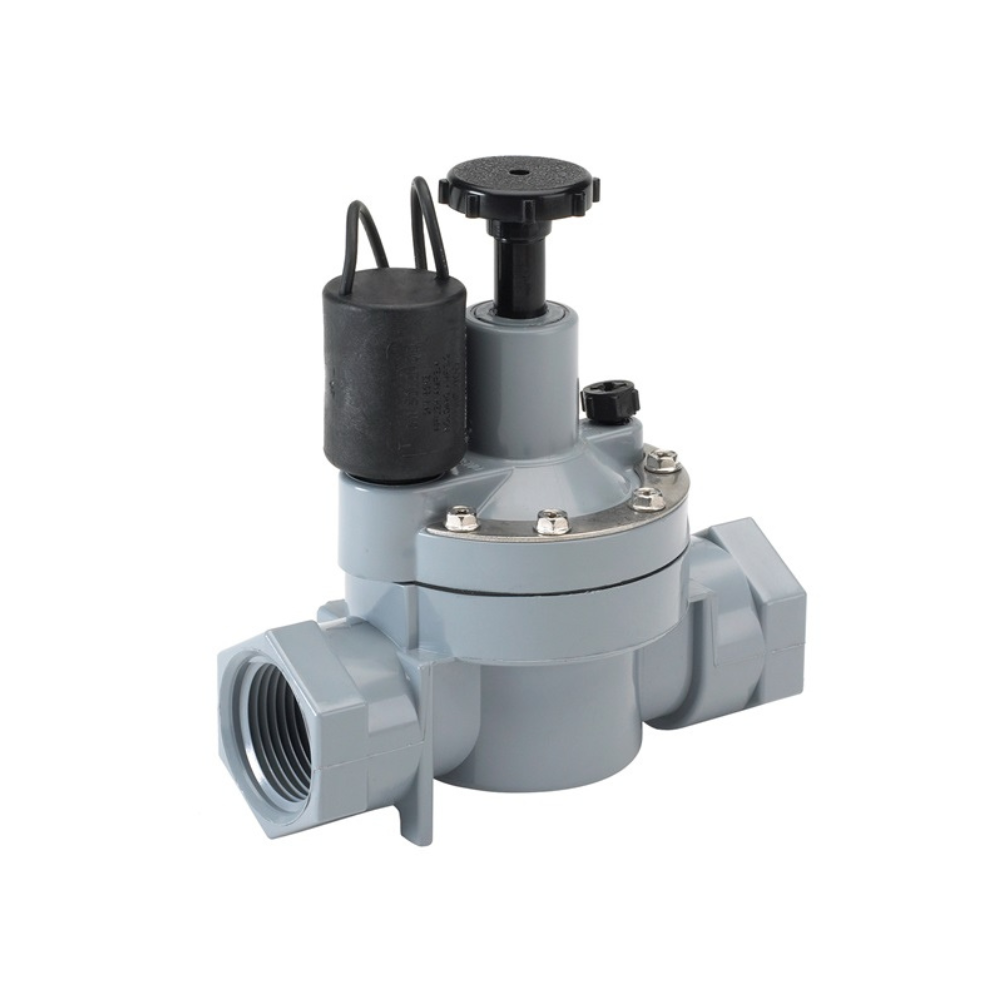

Irritrol 205TF 1 in. FPT Valve with Flow Control

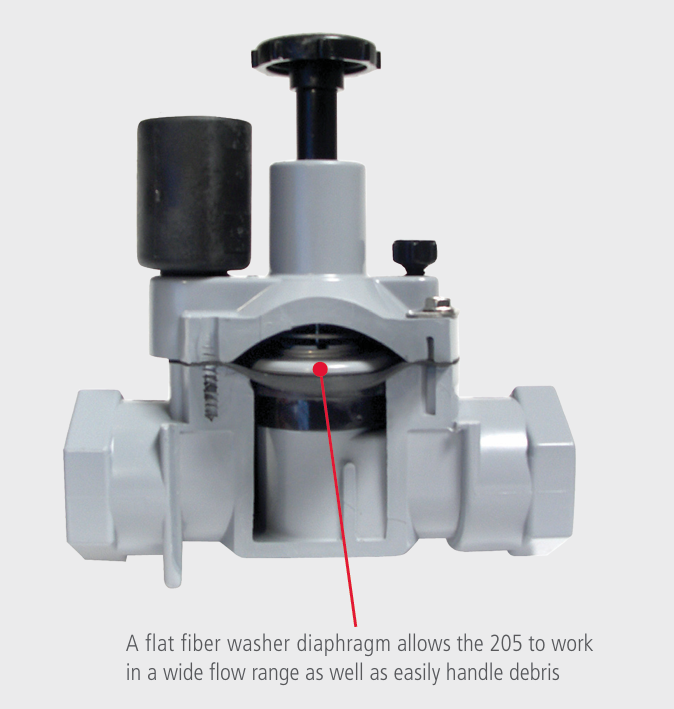

The Irritrol® 205 Series 1-inch plastic valve is the irrigation industry’s time-tested leader for dependable operation in potable and dirty water applications. With a proven track record of success in a wide range of environments, these debris-tolerant valves are available with flow control as an optional feature. Constructed of heavy-duty, corrosion- and UV-resistant PVC, the 205 Series features a high-flow, low-friction-loss-design that has a pressure range of 10-150 psi and flow range of .25-30 GPM. A manual bleed and a rugged, nylon-reinforced Buna-N diaphragm add to this valve’s wide popularity.
Features
- Size: 1'' Female Pipe Thread
- Flow control for precise adjustment and manual shutoff
- Buna-N Valve Seat Seal Ensures a leak proof seal
- Debris-tolerant design
- Encapsulated injection-molded solenoid with a captive hex plunger
- Removable, tamper-resistant flow control handle
- Easily serviced without removal from the system
- Heavy-duty, corrosion- and UV-resistant PVC and stainless steel construction
- High-flow, low friction loss design
- Five-year warranty
Optional Accessories (Sold Separately)
- DCL - DC Latching Solenoid
- R205TFKIT - Repair Kit for 205TF Valve
Operating Specifications
- Flow rate: 0.25 to 30 GPM
- Recommended pressure range: 10 to 150 PSI
Electrical Specifications
- Solenoid: 24 V ac
- Inrush volt-amp: 24 V ac-9.6 VA
- Inrush current: .4 amp
- Holding volt-amp: 24 V ac-4.8 VA
- Holding current: .2 amp
Dimensions
- H: 5 1/8''
- W: 2 3/4''
- L: 5''
