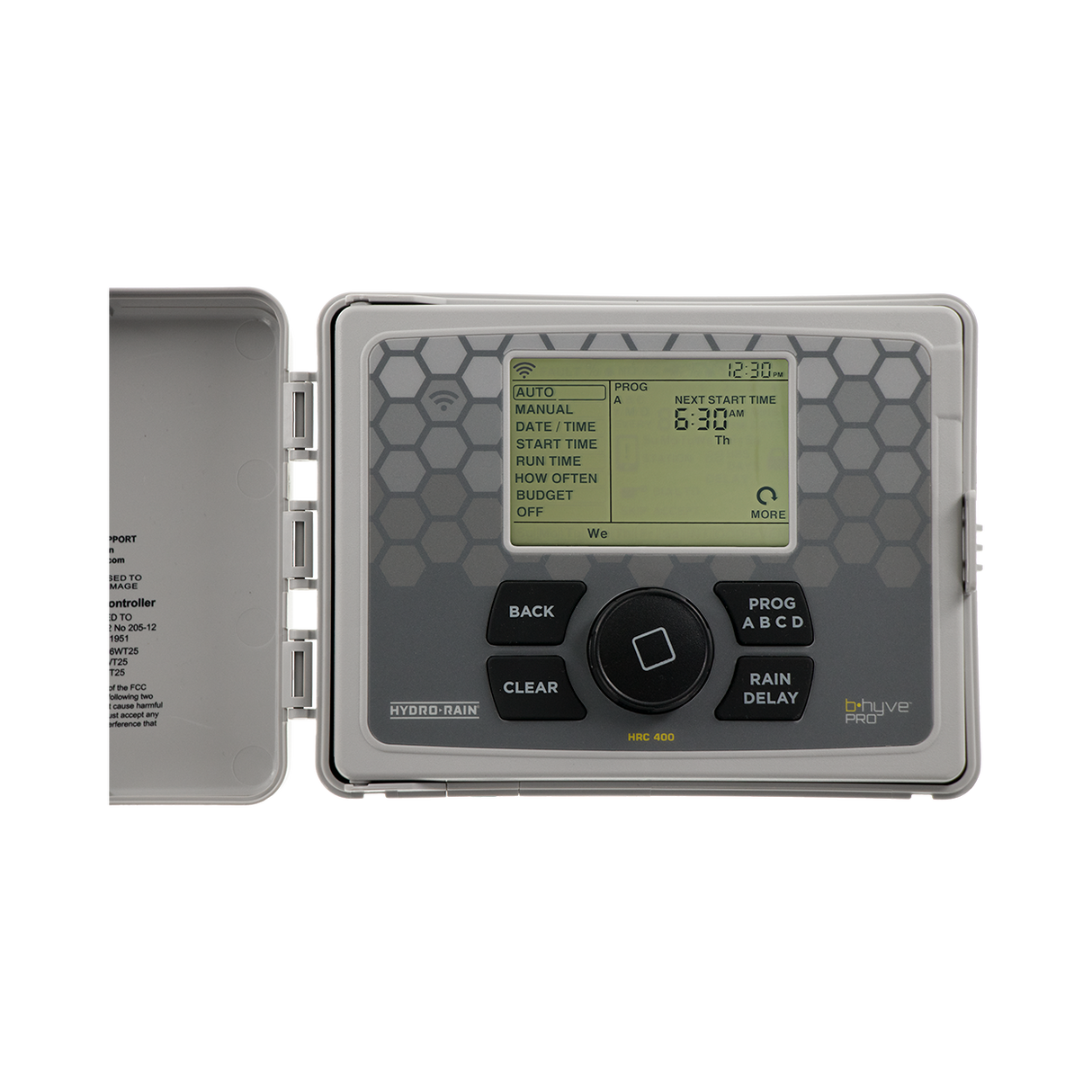

Hydro-Rain - HRC-400 Outdoor WiFi/Bluetooth Irrigation Controller (16 Station) - HRC-400-WF-16

• Bluetooth and 2.4GHz Wi-Fi Enabled
• Four Programs—Programs A, B, C, and D offer multi-use and flexible watering schedules by days of the week, even or odd days, or at intervals of 1 to 32 days.
• 4 Start Times Per Program—Flexibility to manage schedules for variable plant requirements and soil types.
• Program Data Safely Stored—Power out? No worries! All programming information is stored in non-volatile memory.
• Manual Advance—One-button station affords convenience of quick select and advance during manual watering.
• Indoor/Outdoor UL^® Cabinet—Weather tight and locking for safety, security and peace of mind.
• Three Year Unconditional Parts Warranty—Hydro- Rain^® warrants that its product will be free from defects for a minimum of three years from the date of purchase.
• Fast to Program—Interactive, multi input dial and oversized LCD display make programming quick and easy.
• Fast to Install—Factory-installed plug-and-go power cord means no in-field transformer wiring is required. Knock-outs provided for ½, ¾ and 1” conduit.
• Hinged Panel—Door allows quick and easy access to valve wiring.
• Multi-Site Management—Control multiple devices from one mobile app.
• Irrigation Audit App Integration—Integrates over the cloud with our IA award-winning audit app for automatic schedule programming.
• Remote Control—The app provides the ability to remotely control the timer from a smart device for setup and maintenance.
• B-hyve Gateway —The HRC 400 is also a gateway device for other products in the B-hyve eco-system.
• Smart Watering Options—Based on site conditions such as slope, soil type, sun/shade, historical ET and live weather feeds.
• Watering Budgeting—Match seasonal watering requirements by increasing or decreasing the durations of the stations in any of the two programs from 10%~200% of base schedule.
• Rain Delay—Rain sensor bypass technology allows manual or automatic rain delay of 24, 48, 72 hours, or 4 to 32 days.
• 24 Volt Out Rain Sensor Terminals—Make installation of a wireless rain sensor receiver quick and convenient.
• Cycle and Soak Watering—Prevents run-off and provides optimal watering options for different soil types, slopes, and plants.

OPERATING SPECIFICATIONS

• Station Timing: From 1–240 minutes.
• Automatic Starts: Up to 12 start times per day.
• Programming Schedule: Days of week, watering intervals and odd/even days.
• Rain Delay: Setting for 24, 48, 72 hours, or 4 to 32 days.
• Water Budgeting: Adjusts for seasonal watering demands (10% to 200% in 10% increments).

ELECTRICAL SPECIFICATIONS

• Transformer Output: 24VAC/26VAC, 1 Amp.
• Battery Backup: 3V lithium (program saved in non-volatile memory).
• UL/CL: Approved.
• Wire Terminals: Tool-less, color-coded and angled for easy wiring.
• Protection: Built-in fault and surge protection Pump Start Terminal.
