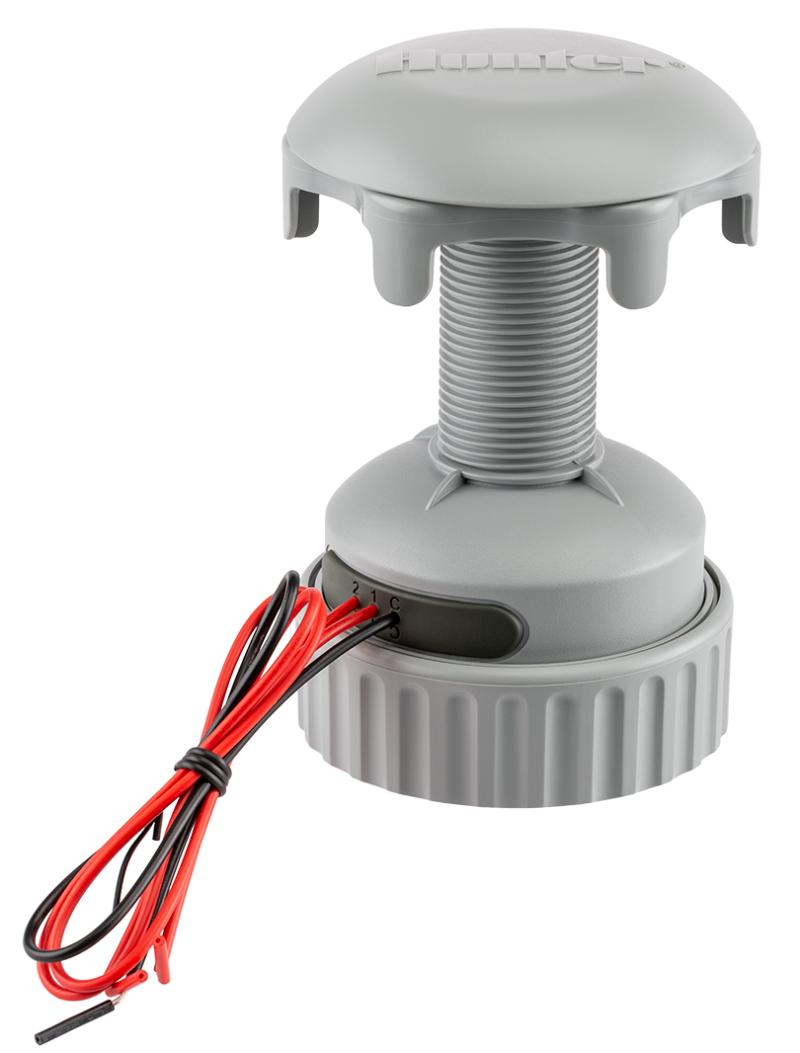

Hunter - WVL-200 - 2-Station Wireless Valve Link (Antenna Included)
Hunter - WVL-200 - 2-Station Wireless Valve Link (Antenna Included) is backordered and will ship as soon as it is back in stock.
Hunter 2-Station Wireless Valve Link (Antenna Included)
The Wireless Valve Link enables wire-free valve control and monitoring for new, existing, and add-on valves in ICC2 or HCC control systems.
With the Wireless Valve Link, you can add valves up to 2,000' (or more with a repeater)* without the need for new valve wiring. Often described as a wireless decoder system, the Wireless Valve Link provides a flexible solution for complex landscapes. Now it’s possible to cross concrete sidewalks and asphalt driveways wirelessly, saving time and money during installation.
This convenient and innovative wireless valve technology simplifies installation for landscapes of all sizes by eliminating the need to run costly field wires or cut into the hardscape.
Operating Specifications
- Low-profile, waterproof valve box lid mount for field durability
- Requires 1½" diameter hole in valve box lid (hole saw supplied with WVOM)
- WVOM Output Module must be installed in your ICC2 or HCC controller to operate the Wireless Valve Link
- Two-way communications confirm field performance
- 900 MHz LoRa radio (North America only)
- 2-station configuration
- Operates Hunter DC-Latching Solenoids
- Maximum distance from WVL to solenoid: 100' with 18 AWG wire
- One or two 9 VDC batteries per WVL (Replace batteries once per season or year)
- Built-in site survey and manual test functions
- Easy, free set up with Bluetooth app (iOS 9.0 or above, Android 5.0 or above)
- Approvals:
- WVL in-box control links: IP68 (submersible)
- RPT Wireless Solar Repeater: IP55 (outdoor)
- UL, cUL, FCC, CE, UKCA, RCM, ISED
- Warranty period: 2 years
Key Benefits
- Works with Hunter ICC2 and HCC Controllers and is compatible with Centralus™ and Hydrawise® Software
- No field wires, wire breaks, or tracking
- No cutting into hardscape, plowing, boring, or lightning surge back to the controller
The Wireless Valve Link product family eliminates some of the biggest contractor costs in irrigation installations: copper wire and unnecessary excavation to connect or repair distant valves. Like decoders, it replaces commodity wire with Hunter ingenuity and provides an efficient alternative to activating irrigation valves. Once connected, wireless signals are immune to issues that commonly afflict wired systems, such as wire degradation and lightning damage.
* Wireless range is subject to terrain, foliage, buildings, and other site factors. Consult product documentation before installing.
