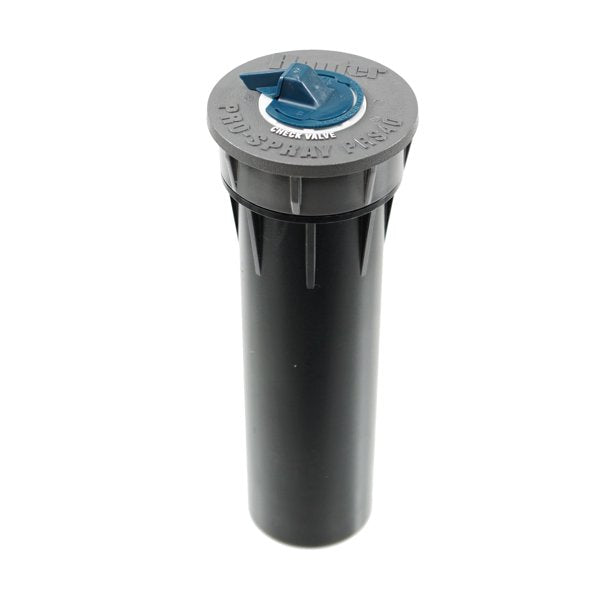

Hunter - PROS-04-PRS40-CV - 40 PSI Regulated 4'' Pro-Spray Pop-Up Sprinkler Body w/ Check Valve

Save 34%
$10.50
$6.98
SKU 476

Hunter designed the Pro-Spray PRS40 spray bodies to be the strongest in the industry. The rugged, extra thick ABS body and cap can withstand the harshest conditions with confidence. The PRS40 is designed for maximum efficiency when used with the MP Rotator heads. The gray capped PRS40 paired with the MP Rotator can decrease water usage by 30% or more over standard sprays. Pro-Spray PRS40 is regulated at 40 PSI to ensure optimal operation for maximum efficiency. The pop-up riser has male threads for connecting any standard spray nozzle or MP rotator with female threads inlet. This rugged Pro-Spray body is recommended for commercial and residential applications . Unit requires a dynamic pressure differential of 10 PSI in system.

Dimensions

Overall Height:5-7/8"
Pop-up Height:4"
Exposed Diameter:2¼"
Inlet Size:½" female NPT

Features:

  • Model: 4"
  • Color coded identification cap (gray) for easy in field identification
  • Superior co-molded wiper seal
  • Compatible with all female threaded nozzles
  • Heavy duty retraction spring
  • Leak proof cap at high pressures
  • Drain check valve installed (14' of elevation) comes standard

Please note: Any MP Rotator or nozzle displayed with the Pro-Spray PRS40 bodies are for demonstration purpose only. All MP Rotators and nozzles must be purchased separately.

Operating Specifications

  • Recommended pressure range: 15 to 100 PSI
  • Required dynamic pressure differential of 10 PSI

ADVANCED FEATURES


EPA WATERSENSE APPROVED

The pressure-regulated Pro-Spray® PRS30 and PRS40 meet the stringent requirements established by the U.S. Environmental Protection Agency to identify products that exemplify water conservation and performance.

CO-MOLDED WIPER SEAL

The industry’s most rugged wiper seal is co-molded from two types of chemical and chlorine-resistant materials. This pressure activated, multi-function wiper seal reduces flow-by, operates at low pressures, and allows more sprinkler heads to be installed on the same zone. Its innovative design prevents debris from entering the seal when the riser is retracted, reducing riser stick-ups.

INDUSTRYʼS STRONGEST SPRAY BODY

The Pro-Spray line incorporates a heavy-duty ribbed body and durable cap engineered to withstand the harshest environments, including the rigors of foot traffic and the abuses of heavy machinery. In addition, the buttress thread design provides superior strength in cap-to-body gripping capacity helping the head to withstand high inlet surge pressures.

HEAVY-DUTY SPRING

The industry's strongest spring for positive retraction under any conditions.

OPTIONAL CHECK VALVE

Optional check valves eliminates drainage at heads installed on slopes, protecting landscapes from damage and erosion while reducing water waste. Choose from the convenience of factory-installed check valves or the flexibility of field installation.

FLOGUARD™ TECHNOLOGY

In the event of a missing nozzle, FloGuard technology reduces the flow of water from the riser to a 0.5 GPM (10' tall) indicator stream, eliminating water waste and preventing landscape erosion while providing a visual indicator for repair.
