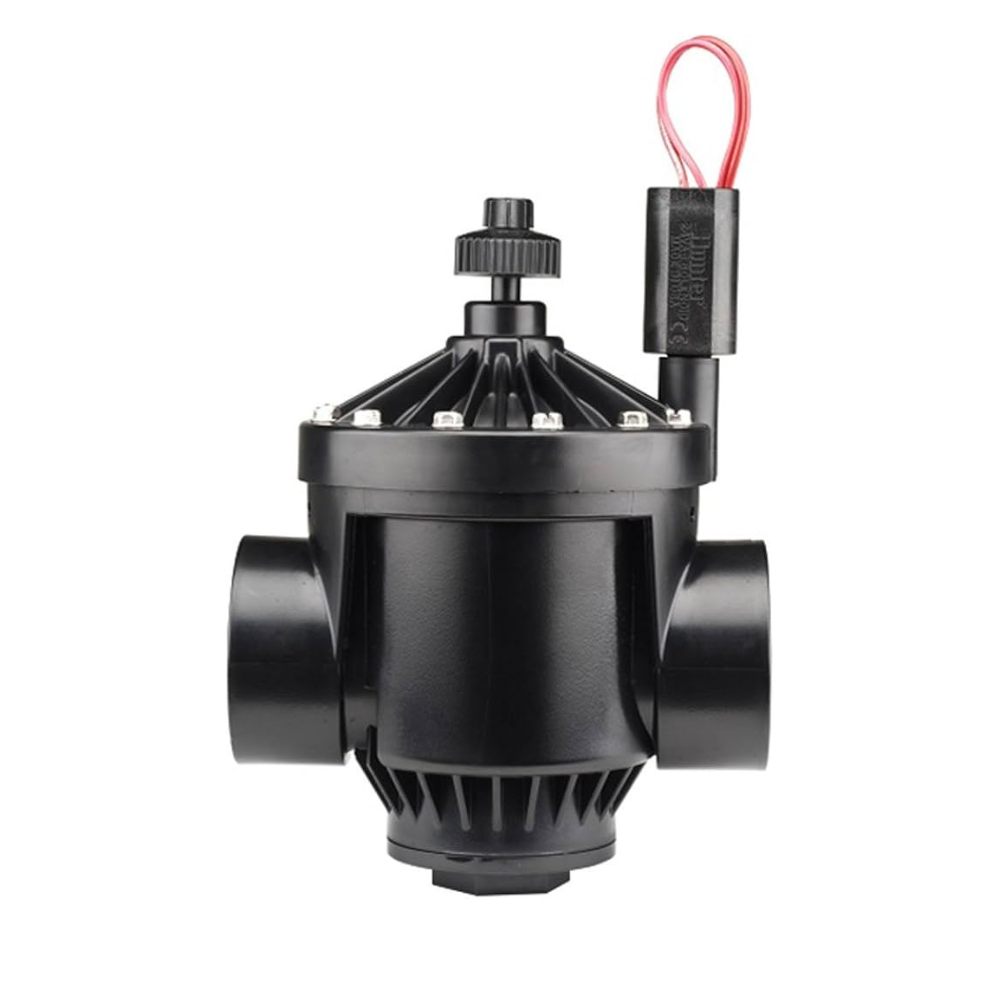

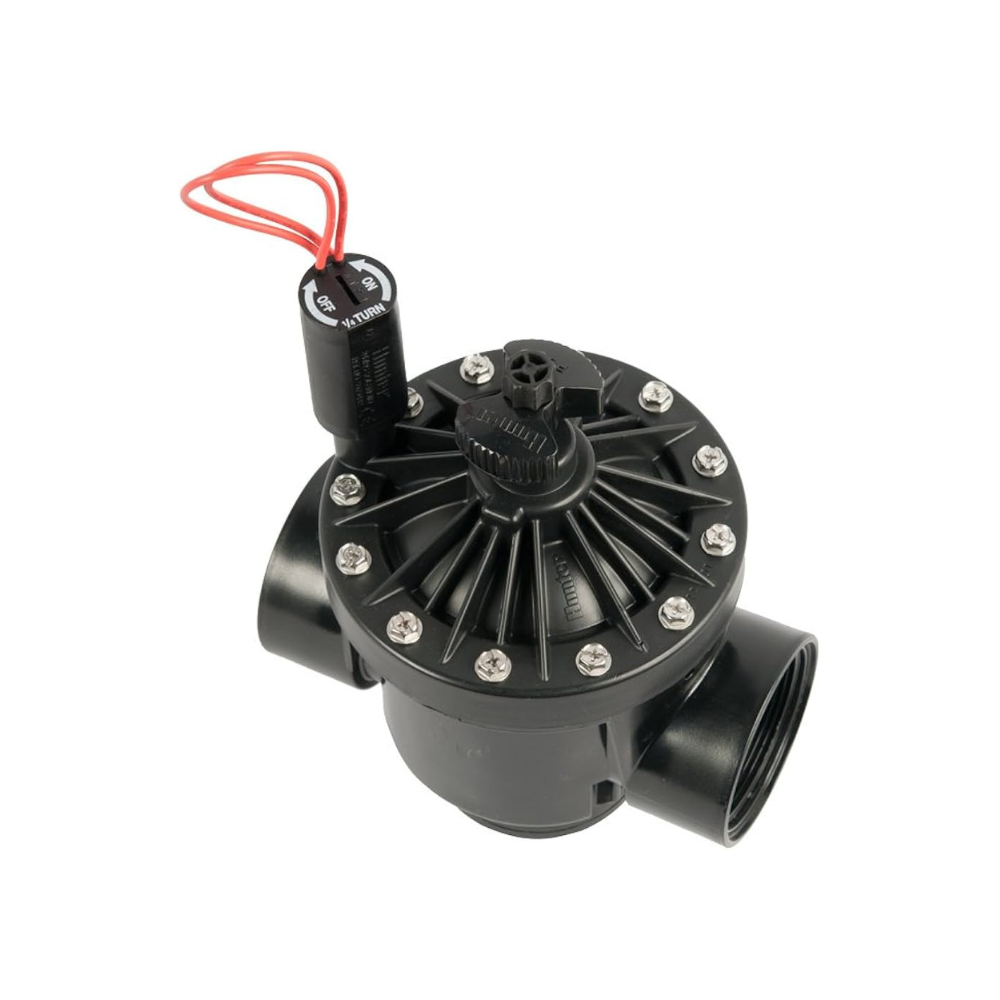

Hunter - PGV-201G - 2'' Globe/Anlge Valve with Flow Control (FPT)

Save 12%
$96.59
$84.98
SKU 479

This hard working, heavy-duty valve offers the best features of Hunter's top-of-the-line valves. Built with enough durability to handle the rigors of most residential and light commercial sites, the PGV is available in an array of configurations. For larger landscape applications, the PGV comes in a 2" globe/angle model (with flow control). All models feature durable high-grade construction and a rugged diaphragm with support to prevent stress failure.

Features

  • Size: 2"
  • External and internal manual bleed allows quick and easy “at the valve” activation
  • Double-beaded diaphragm seal design for superior leak-free performance
  • Optional: DC latching solenoids enable Hunter’s battery-powered controllers
  • Captive bonnet bolts provide hassle-free valve maintenance
  • Low flow capability allows use of Hunter’s micro-irrigation products
  • Encapsulated 24 VAC solenoid with captive plunger for hassle-free service
  • Temperature rating: 150° F
  • Warranty period: 2 years

Operating Specifications

  • Flow rate: 20 to 150 GPM
  • Recommended pressure range: 20 to 150 PSI

Solenoid Specifications

  • 24 VAC solenoid
    • 350 mA inrush, 190 mA holding, 60 HZ
    • 370 mA inrush, 210 mA holding, 50 HZ

Downloads

PGV Instruction Guide

PGV Brochure

Spec Sheet

    PGV Pressure Loss in PSI
    Flow 2"
    GPM Globe Angle
    20 1 1
    30 1 2
    35 2 2
    40 2 2
    50 1 1
    60 2 2
    80 3 2
    100 5 3
    120 6 5
    135 8 7
    150 10 9



    ADVANCED FEATURES


    FLOW CONTROL

    Maximize efficiency and prolong the life of a system by fine tuning flow and pressure for each zone.
