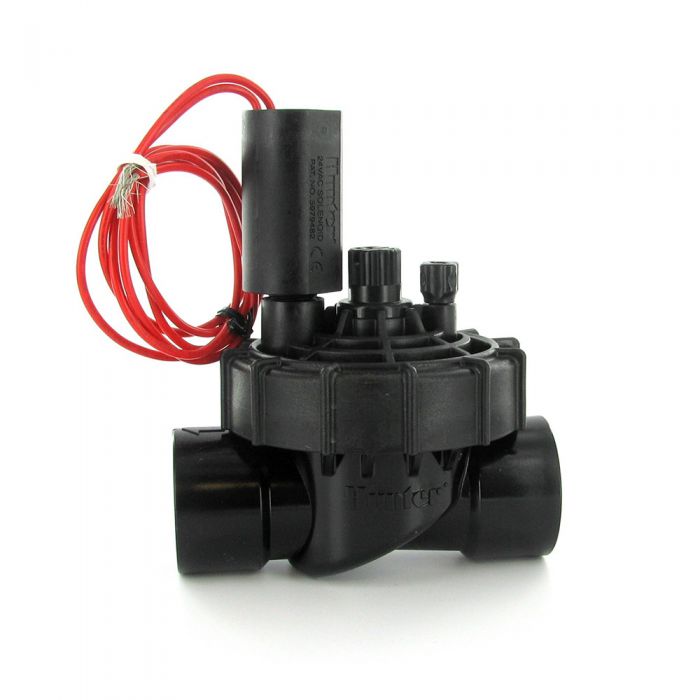

Hunter - PGV-101-JTG - 1'' Jar-Top Valve w/ Flow Control (FPT)

Hunter  |  SKU: PGV101JTG
$1839 $3325

Hunter PGV-101-JTG - 1'' Jar-Top Valve with Flow Control, Female NPT Inlet and Outlet.

For maximum convenience, reliability, and ease of service in a residential valve, the PGV Jar-Top is the solution. With the PGV Jar-Top, its possible to service a Hunter valve without using any tools. Even with this ease-of-maintenance and operational simplicity, the PGV Jar-Top still delivers quality and performance to handle the demands of any residential system. All models feature durable, high-grade, corrosive and UV-resistant PVC construction, glass reinforced jarring and a rugged double-beaded, leak-proof diaphragm with support to prevent stress failure.

Features
  • Size: 1'' Female Pipe Thread
  • The flow control knob works very similar to a hose bib or gate valve as its main function is to either fully allow or restrict the amount of water passing through the valve.
  • External and internal manual bleed allows quick and easy ''at the valve'' activation
  • Captive bonnet screws eliminate the possibility of lost parts during disassembly
  • Triple-tool bonnet screws are compatible with standard or Phillips screwdrivers as well as a nut driver
  • Double-beaded diaphragm seal design for superior leak-free performance
  • Encapsulated 24 VAC solenoid with captive plunger for hassle-free service
  • Optional DC latching solenoids enable Hunters battery-powered controllers (PGV-101-JTG-DC has the DC Latching Solenoid pre-installed)
  • Low flow capability allows use of Hunters micro irrigation products
  • All Hunter valves are 100% water-tested before leaving the factory to verify every valve operates properly and give you total peace of mind after installation.
Operating Specifications
  • Flow rate: 0.2 to 40 GPM
  • Recommended pressure range: 20 to 150 PSI
  • Temperature rating: 150° F
  • Warranty period: 2 years
Solenoid Specifications
  • 24 VAC solenoid
    • 350 mA inrush, 190 mA holding, 60 cycles
    • 370 mA inrush, 210 mA holding, 50 cycles
