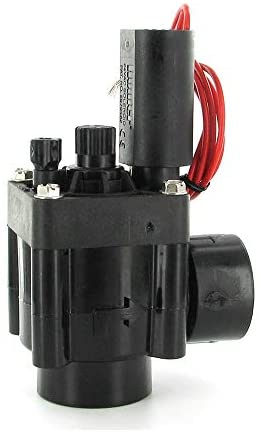

Hunter - PGV-101A - 1'' PGV Angle Valve w/ Flow Control (FPT)

Hunter  |  SKU: PGV101A
$1999 $3551

PGV-101A - 1" Plastic Angle Valve with Flow Control, Female NPT Inlet and Outlet

The Hunter PGV Valve is a professional grade line of valves that are built to work with a broad range of landscaping demands. All models feature durable, high-grade, corrosive and UV-resistant PVC construction, glass reinforced jarring and a rugged double-beaded, leak-proof diaphragm with support to prevent stress failure. This top-of-the-line valve has an internal manual bleed as well as dependable Hunter solenoid for long life and operation. Flow Control maximizes efficiency and prolongs the life of a system by fine tuning flow and pressure for each zone.

Features
  • Size: 1'' Female Pipe Thread, Angle Configuration
  • The flow control knob works very similar to a hose bib or gate valve as its main function is to either fully allow or restrict the amount of water passing through the valve.
  • External and internal manual bleed allows quick and easy ''at the valve'' activation
  • Captive bonnet screws eliminate the possibility of lost parts during disassembly
  • Triple-tool bonnet screws are compatible with standard or Phillips screwdrivers as well as a nut driver
  • Double-beaded diaphragm seal design for superior leak-free performance
  • Encapsulated 24 VAC solenoid with captive plunger for hassle-free service
  • Optional DC latching solenoids enable Hunters battery-powered controllers (458200 Sold Separately)
  • Low flow capability allows use of Hunters micro irrigation products
  • All Hunter valves are 100% water-tested before leaving the factory to verify every valve operates properly and give you total peace of mind after installation.

Operating Specifications

  • Flow rate: 0.2 to 40 GPM
  • Recommended pressure range: 20 to 150 PSI
  • Temperature rating: 150° F
  • Warranty period: 2 years

Solenoid Specifications

  • 24 VAC solenoid
    • 350 mA inrush, 190 mA holding, 60 cycles
    • 370 mA inrush, 210 mA holding, 50 cycles
