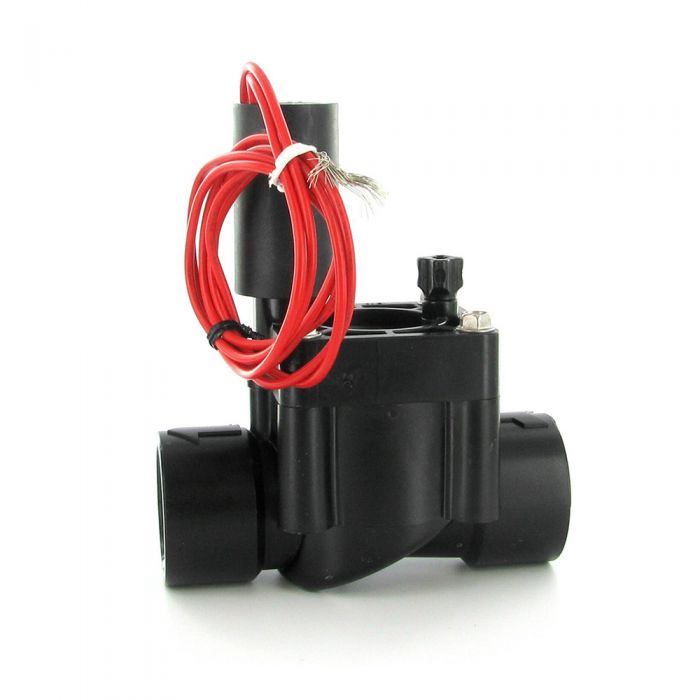

Hunter - PGV-100-GS - 1'' Plastic Globe Valve (Slip x Slip)
by Hunter
SKU PGV100GS
Save 2%
Original price
$15.10
Current price
$14.76
PGV-100-GS - 1" Plastic Globe Valve, No Flow Control, Slip Inlet and Outlet
The Hunter PGV Valve is a professional grade line of valves that are built to work with a broad range of landscaping demands. All models feature durable, high-grade, corrosive and UV-resistant PVC construction, glass reinforced jarring and a rugged double-beaded, leak-proof diaphragm with support to prevent stress failure. This top-of-the-line valve has an internal manual bleed as well as dependable Hunter solenoid for long life and operation.
Features
- Size: 1'' Slip Connection
- External and internal manual bleed allows quick and easy ''at the valve'' activation
- Captive bonnet screws eliminate the possibility of lost parts during disassembly
- Triple-tool bonnet screws are compatible with standard or Phillips screwdrivers as well as a nut driver
- Double-beaded diaphragm seal design for superior leak-free performance
- Encapsulated 24 VAC solenoid with captive plunger for hassle-free service
- Optional DC latching solenoids enable Hunters battery-powered controllers (PGV-100-GS-DC has the DC Latching Solenoid pre-installed)
- Low flow capability allows use of Hunters micro irrigation products
- All Hunter valves are 100% water-tested before leaving the factory to verify every valve operates properly and give you total peace of mind after installation.
Operating Specifications
- Flow rate: 0.2 to 40 GPM
- Recommended pressure range: 20 to 150 PSI
- Temperature rating: 150° F
- Warranty period: 2 years
Solenoid Specifications
- 24 VAC solenoid
- 350 mA inrush, 190 mA holding, 60 cycles
- 370 mA inrush, 210 mA holding, 50 cycles
