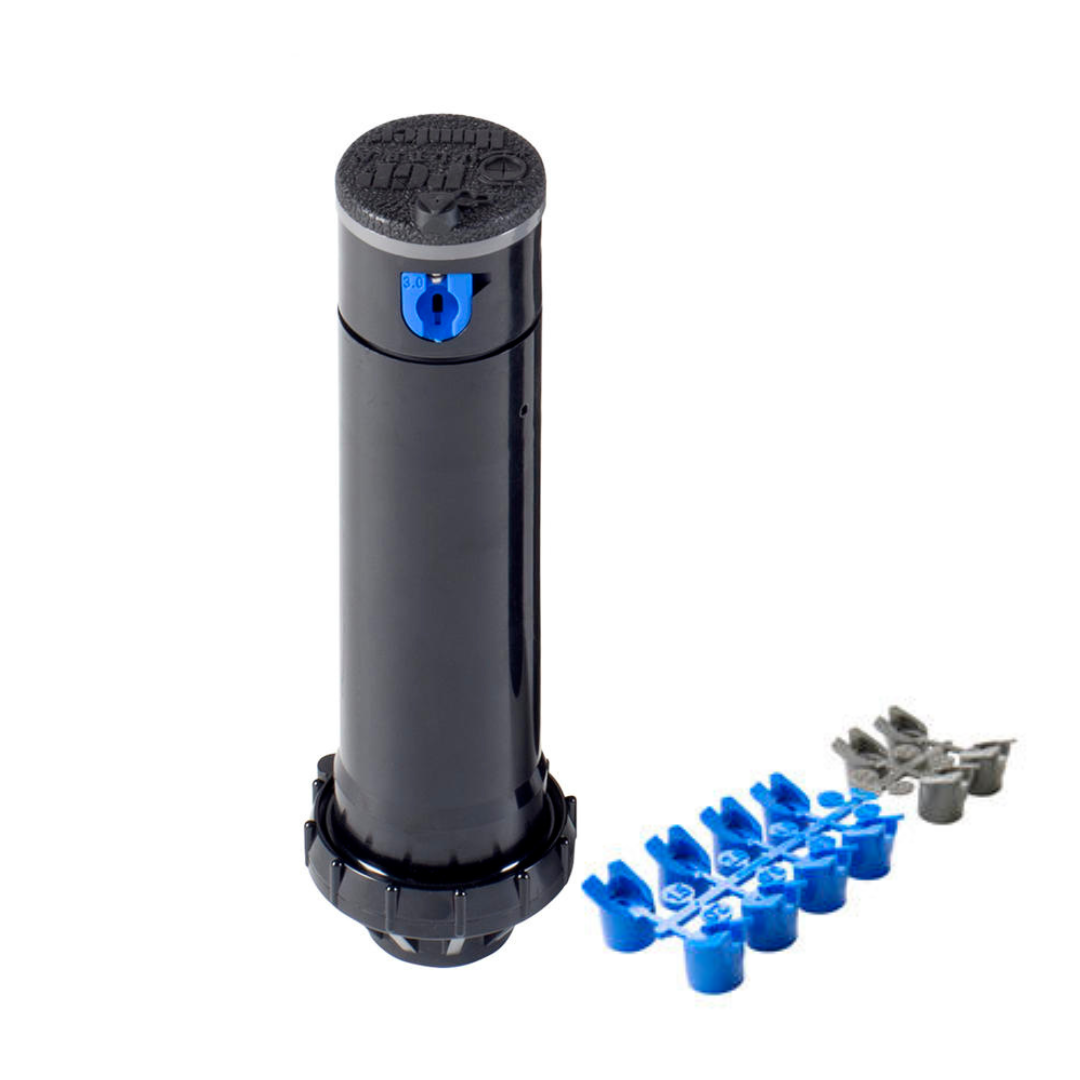

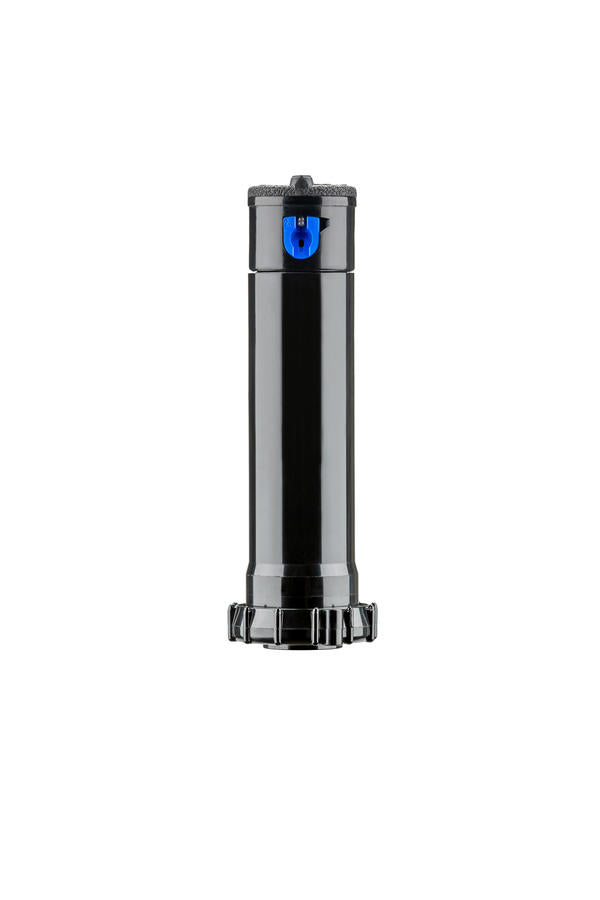

Hunter - PGP-00 - PGP Ultra Shrub Rotor

The PGP-Ultra is an indispensable rotor with 12 nozzle choices included and a 25' to 46' radius. The PGP-Ultra Shrub Rotor is ideal for medium to large-size shrub areas and hillsides.

Includes;

• (1) nozzle tree per rotor.
• (1) Rotor key included in purchase of 10+ Rotors. 2 keys per case of 20.
• If you purchase less than 10 rotors then a rotor key will need to be purchased separately. Rotor key is part 172000.

Operating Specs

• Radius: 25' to 46' (Shorter distance available with Black Short Radius Nozzles #466100)
• Flow rate: 1.6 to 9.8 GPM
• Recommended pressure range: 25 to 70 PSI
• Operating pressure range: 20 to 100 PSI
• Precipitation rates: 0.4 in/hr approx.
• Nozzle trajectory: Std = 25 degrees, Low angle = 13 degrees

Overview

Shrub style rotors should not be used next to sidewalks, paths, driveways, lawn edges, or anywhere near places people walk or play. This is because the shrub sprinklers may trip people and cause injury.

Features / Benefits

• Model: Shrub
• Arc setting: 50 to 360 degrees non-reversing
• Factory installed rubber cover
• Through-the-top arc adjustment
• Quick check arc mechanism
• Water lubricated gear-drive
• Includes: set of 12 nozzles (8 standard and 4 low angle)

Dimensions

• Overall Height: 7-1/2"
• Exposed Diameter: 1-3/4"
• Inlet Size: 3/4" female NPT

Downloads

• PGP-Ultra Installation

• Nozzle Specifications
• PGP-Ultra Brochure
• Spec Sheet
• Residential Rotor Support
