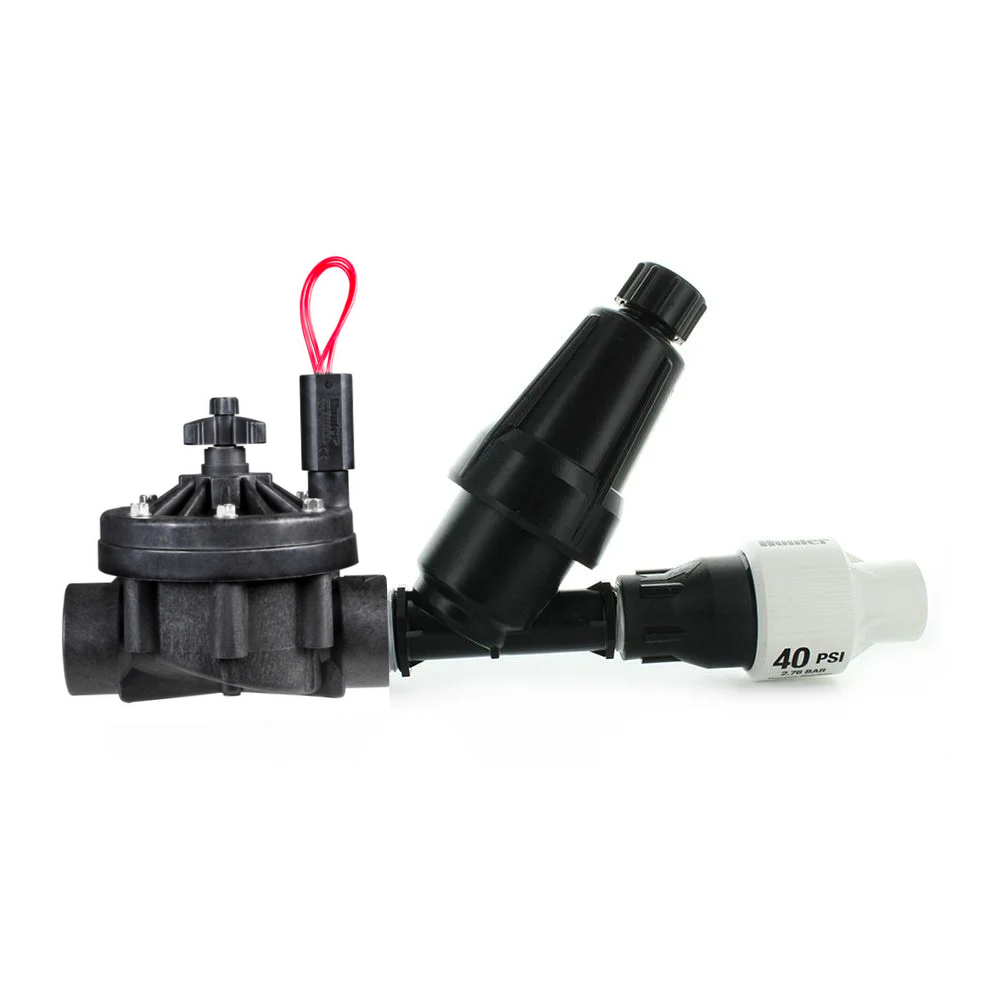

Hunter ICZ-101-40 Drip Control Zone Kit w/ 1" NPT ICV Filter Sentry Valve w/ 1" 40 PSI Pressure Regulating Filter
For the demanding requirements of commercial job sites, Hunter’s ICZ Drip Control Zone Kits are second to none. The convenient, all-in-one kits offer the superior performance of the Hunter ICV Valves along with a stainless steel filter and pressure regulator. Because these kits include pressure regulation that ensures a consistent 40 PSI, the ICZ makes it possible to accommodate drip needs in an environment where it would normally be difficult to do so. With each component preassembled and water tested, the ICZ provides a hassle-free way to install drip zones on commercial jobs.
Features
- Factory-installed Filter Sentry Mechanism
- Pressure regulation: 40 PSI
- Flow: 2 to 20 GPM (120 to 1,200 GPH)
- System operating pressure: Up to 120 PSI
- Operating temperature: Up to 120°F
- 150 mesh stainless steel screen
- 1" inlet and 1" outlet
Key Benefits
- Factory-assembled and water-tested
- Highest quality components (stainless steel filter screen, standard flush cap, top-of-the-line regulator)
- Wide flow range to cover most micro irrigation applications.
- Warranty: 2 years.
Solenoid Operating Specifications
- Heavy-duty solenoid 24 VAC
- 350 mA inrush current, 190 mA holding current, 60 cycles
- 370 mA inrush current, 210 mA holding current, 50 cycles
