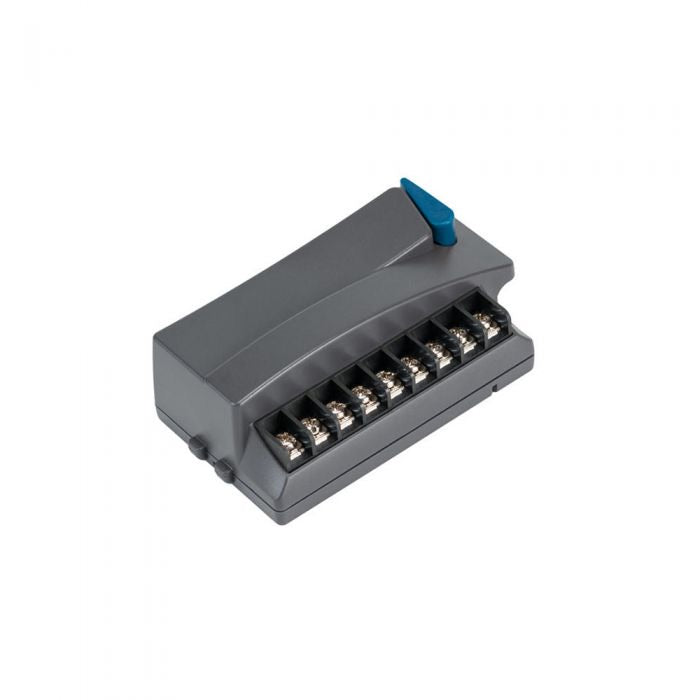

Hunter - ICM-800 - 8 Station ICC2/HCC Expansion Module
Hunter ICC2/HCC - 8-Station Expansion Module
- 8-Station Expansion Module.
- For adding station capacity to base controller - allows up to 54 stations in ICC2/HCC metal enclosures and 38 stations in plastic ICC2/HCC enclosures.
- Plug-in Expansion.
IMPORTANT: The ICM-2200 (22 Station module) must always be installed in the last two module slots to make it compatible. All slots before the ICM-2200 must be filled with ICM-800 station modules.
Each ICC2/HCC controller is supplied with a factory-installed base module for up to 8 stations (ICM-800). Multiple additional modules may be added in increments of 4 (ICM-400), 8 (ICM-800), or one 22-station expansion module (ICM-2200). Each station module has its own common terminal, which runs in conjunction with the corresponding station terminals within the module. Each station output is rated for 0.56 A maximum, which can safely operate up to two Hunter solenoids simultaneously
