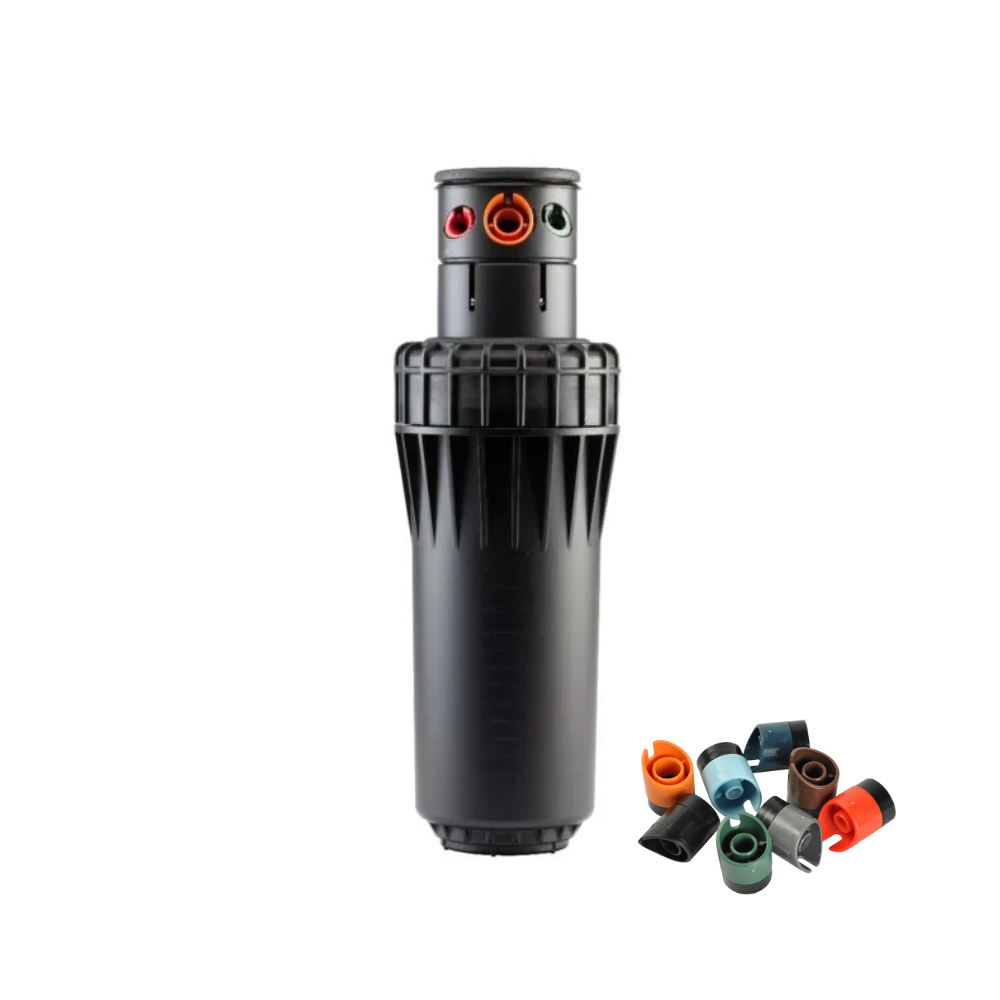

Hunter - I90-ADV - 3'' Pop-Up Large Turf Rotor w/ Check Valve

Hunter  |  SKU: I90ADV
$14582 $19745

With a radius from 66' to 97', the I-90 is Hunter’s longest-distance rotor specifically designed for natural turf, parks, sports fields, and public areas. The I-90 boasts the longest throw capability of all natural turf rotors. Yet its reduced-size diameter and cushioned rubber cover make it the perfect choice for parks and wide-open lawn areas, as well as perimeter watering of athletic fields and horse arenas. The rotor is also easy to service, with a “jar-top” body cap that allows quick access to the filter screen and check valve with no extra pieces, parts, or tools required. The I-90 comes with color-coded nozzles that can be field-changed to match the specific needs of any large site.

Includes:

  • (8) Nozzles are included per Rotor. (Includes #25, #33, #38, #43, #48, #53, #63, #73)

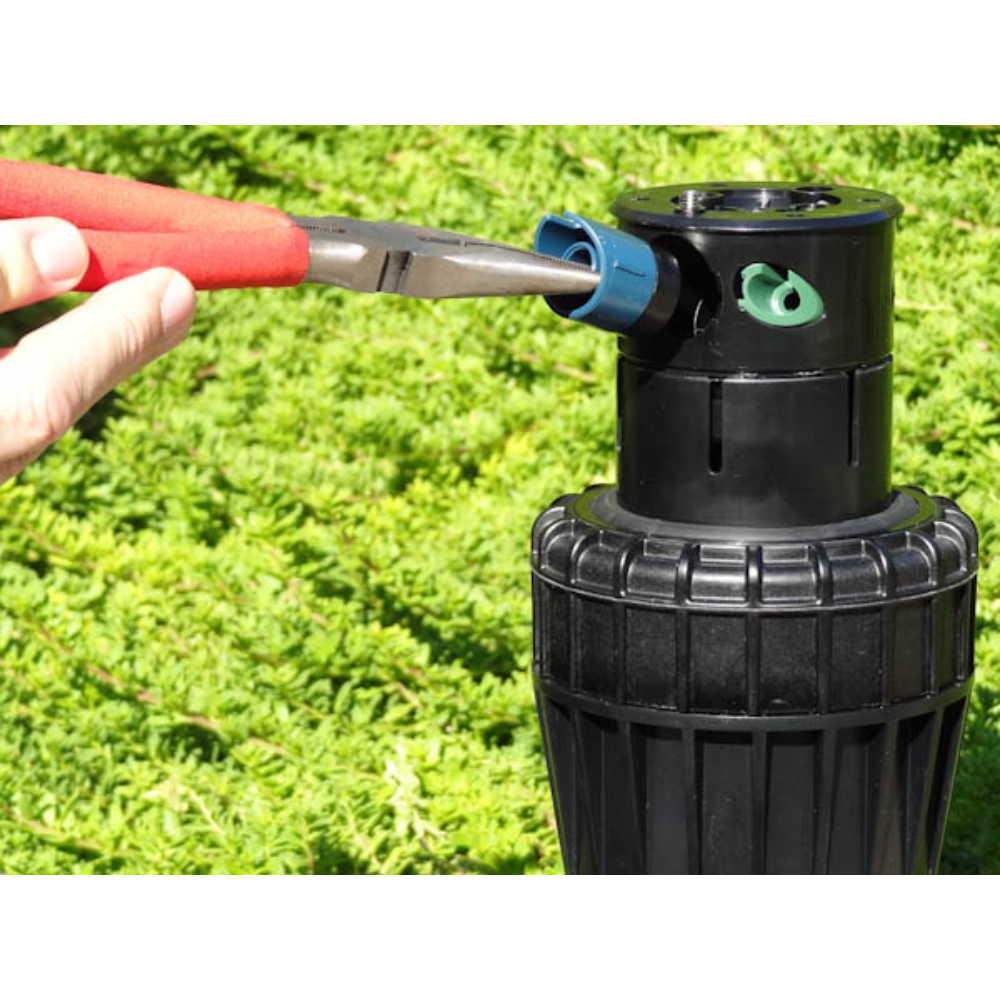

  • 1 Rotor Key included (Phillips-head screwdriver and needle-nose pliers needed for nozzle removal)
Operating Specifications
  • Radius: 66' - 69'
  • Flow rate: 29.5 to 83.8 GPM
  • Recommended pressure range: 80 to 120 PSI
  • Operating pressure range: 80 to 150 PSI
  • Precipitation rates: 0.75 in/hr approx.
  • Nozzle trajectory: 22.5 degrees
Features
  • Model: 3" Pop-Up, Adjustable Arc
  • Riser: Plastic
  • Inlet Size: 1-1/2''
  • Arc setting:40 to 360 degrees (Reversing 360 Action)
  • QuickCheck™ Arc Mechanism for fast arc adjustment and review of the arc setting
  • Advanced Triple Nozzles Ensure Consistent Coverage
  • Pre-Installed Drain Check Valve (UP TO 9 FT. OF ELEVATION). The drain check valve keeps lines from draining when the system is shut off. This saves water, reduces liability, and increases system life.
  • Exclusive PressurePort™ Technology maximizes distribution uniformity
  • Color-coded nozzles make identification easy
  • Nozzle choices: 8
  • Warranty period: 5 years
Specifications
  • Overall height: 11"
  • Pop-up height: 3"
  • Exposed diameter: 3-1/2"
  • Inlet size: 1-1/2" NPT
