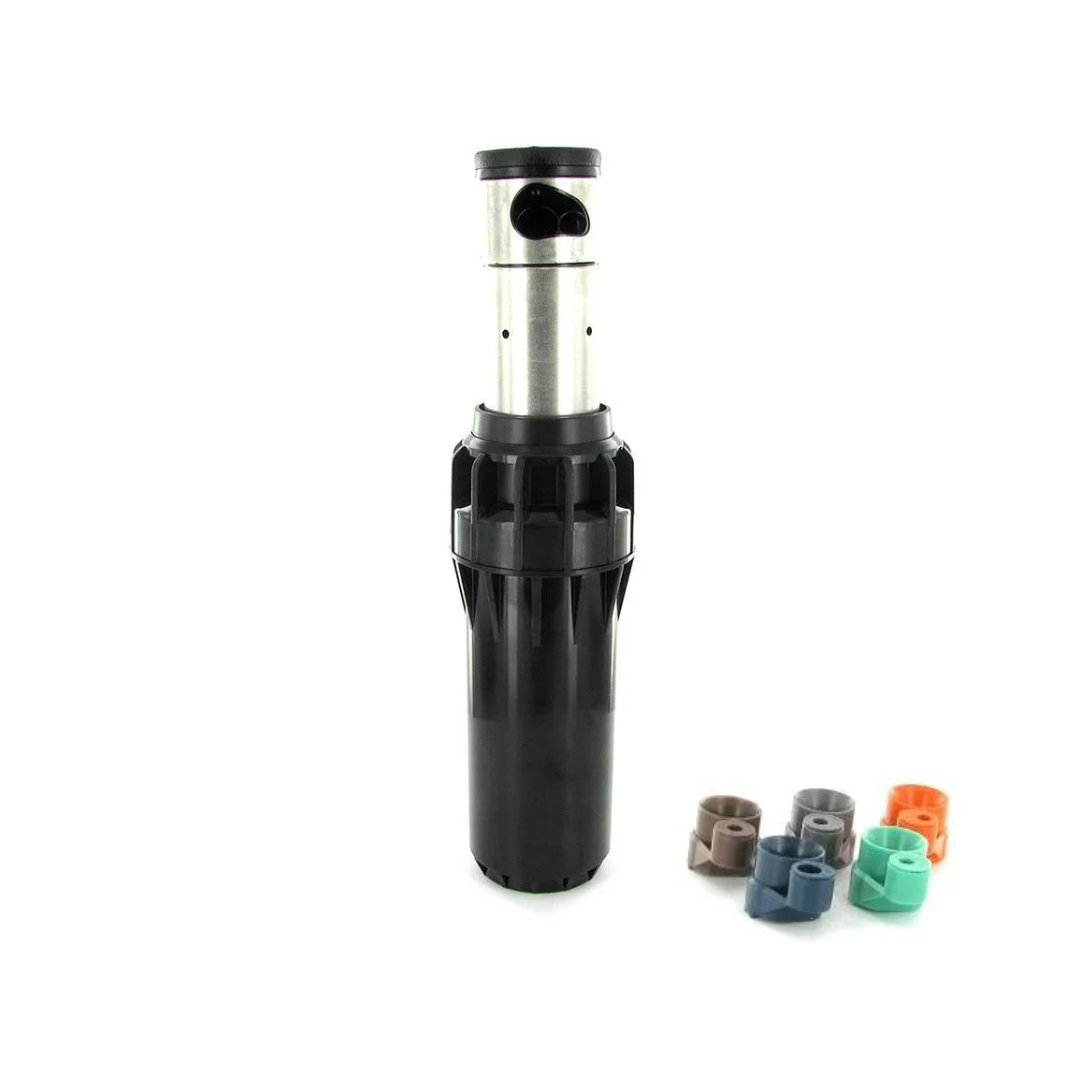

Hunter - I25-04-SS - 4'' Pop Up Stainless Steel Adjustable Arc Rotor
The I-25 gets the job done with power, efficiency, and commercial-grade reliability. With a robust watering radius of 40' to 71', this rotor can be used in a variety of applications and environments. Its compact, highly durable design comes with an optional stainless steel riser for tough-as-nails strength. With a 5-year warranty, the I-25 also has options for reclaimed water ID and high-speed. A standard check valve is built in, and a wide selection of high performance nozzles are available. Efficient, tough, and built-to-last, Hunter's I-25 rotors work hard day in and day out so you don't have to.
- Radius: 37' to 71'
- Flow rate: 3.8 to 31.5 GPM
- Recommended pressure range: 40 to 100 PSI
- Operating pressure range: 40 to 100 PSI
- Precipitation rates: 0.4 in/hr approx.
- Nozzle trajectory: 25 degrees
- Model: 4"
- Stainless Steel Riser
- Arc setting: 50 to 360 degrees
- Factory installed rubber cover
- Through-the-top arc adjustment
- Quick check arc mechanism
- Water lubricated gear-drive
- Nozzle choices: 12
- Nozzle range: #4 to #28
- Warranty period: 5 years
AUTOMATIC ARC RETURN
This patented feature returns the turret to the original arc regardless of where it is turned. This ensures vandal protection in any environment.
The patented, non-strippable, vandal proof drive mechanism enables the turret to be turned without causing damage.
PART- AND FULL-CIRCLE IN ONE MODEL
Patented non-reversing 360 for part- and full-circle in one model, from 50 to 360 degrees.
COLOR CODED NOZZLES
Nozzles are easier to differentiate in the field for quick reference and simple installation.
OPTIONAL RECLAIMED WATER ID
Purple caps indicate where non-potable irrigation water is being used.

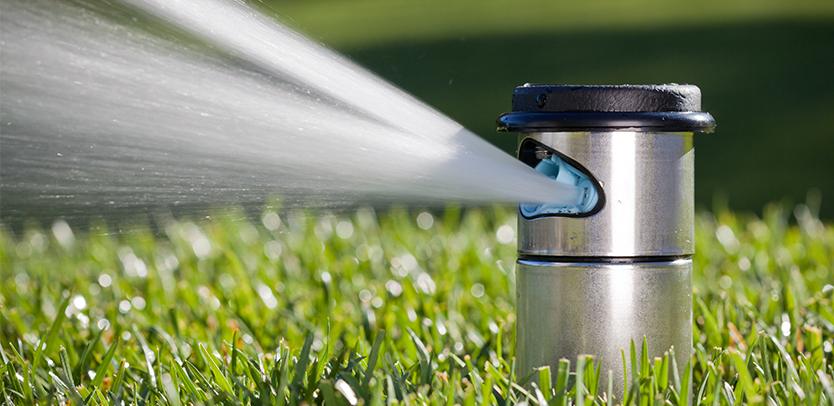

STAINLESS STEEL RISER
For unforgiving soil conditions, unpredictable climates, or heavy foot traffic, stainless steel is the best choice
DRAIN CHECK VALVE (UP TO 10 FT. OF ELEVATION)
The drain check valve keeps lines from draining when the system is shut off. This saves water, reduces liability, and increases system life.
