Hunter - HCC-FPUP - HCC Front Panel Retrofit Kit

Hunter  |  SKU: HCCFPUP
$32927 $54903
HCC-FPUP Retrofit Kit for ICC & ICC2 Controller

Each retrofit kit contains a new:
  • FacePack (Front Panel only, Controller Box not included)
  • Ribbon Cable
  • Power Module
  • WIFI-EXT-KIT
  • Quick Start Guide

The next-generation HCC controller brings the powerful Wi-Fi-based irrigation management capabilities of the industry-leading Hydrawise™ platform to high-end residential, commercial, and public-sector projects. The HCC provides a range of convenient features to monitor larger projects — all with the simple click of a button.

The HCC combines robust features of the popular ICC2 controller with automatic, weather-based daily adjustments of Hydrawise programming to create a smart and economical solution for commercial landscape management. HCC can control up to 54 stations* and effectively operate any two stations simultaneously. The controller’s convenient modular design allows for rapid expandability with the same 4-, 8-, and 22-station output modules as the ICC2. Engineered with a prewired SmartPort®, HCC is also compatible with Hunter’s ROAM and ROAM XL remotes, allowing for fast and reliable manual operation in the field from long-range distances without the need for a smartphone.

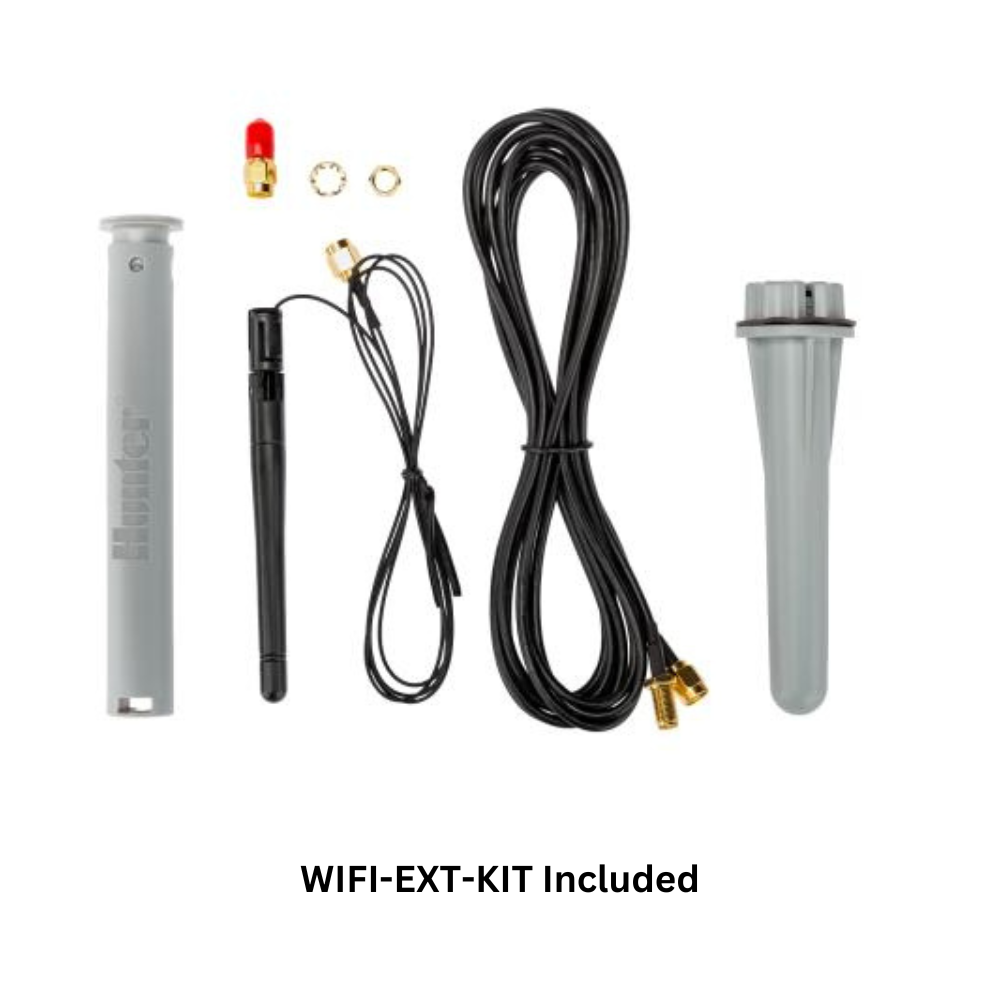

To improve Wi-Fi visibility to the router, we recommend using the included Wi-Fi extension kit (model: WIFI-EXT-KIT). This is not a signal booster, but an option to get the antenna closer to the router. Going around corners, through obstructions, or just reducing the distance are appropriate applications for this product.

Key Benefits
  • Wi-Fi enabled for quick connection to Hydrawise software -  2.4 GHz (only) Wi-Fi router compatible, 802.11 b/g/n 20 MHz
  • Number of stations:
    • Conventional: 8 to 38 (Expansion Modules)
    • With two-wire EZDS: up to 54 (EZ-DM & EZ-1)
  • Standard programming option allows for 6 independent irrigation programs and 6 start times per program
  • Advanced programming option provides station-based programming with up to 6 total start times available
  • Any 2 programs or stations can operate simultaneously, providing more efficient watering
  • 2 sensor inputs available for use with any Clik sensors and HC Flow Meter
  • 1 P/MV output for pump start relay and master valve activation
  • 3 1/4" full-color touchscreen display for simple programming at the control panel
  • Built-in milliamp sensor for wire fault detection and alerts
