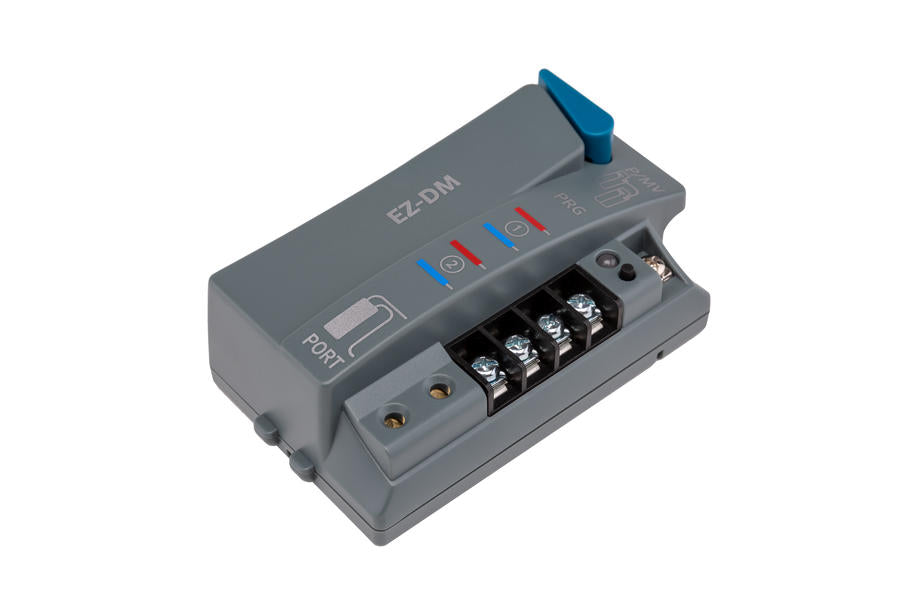

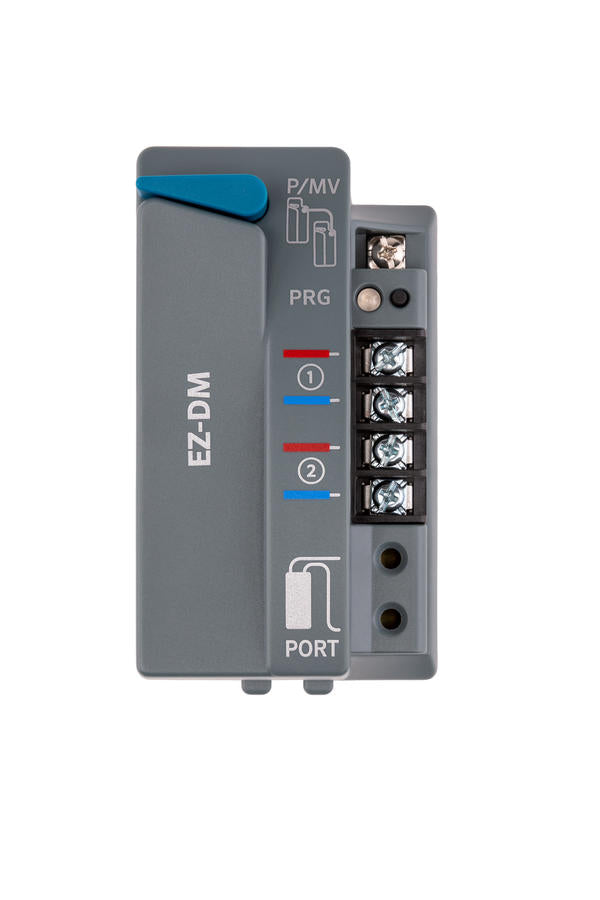

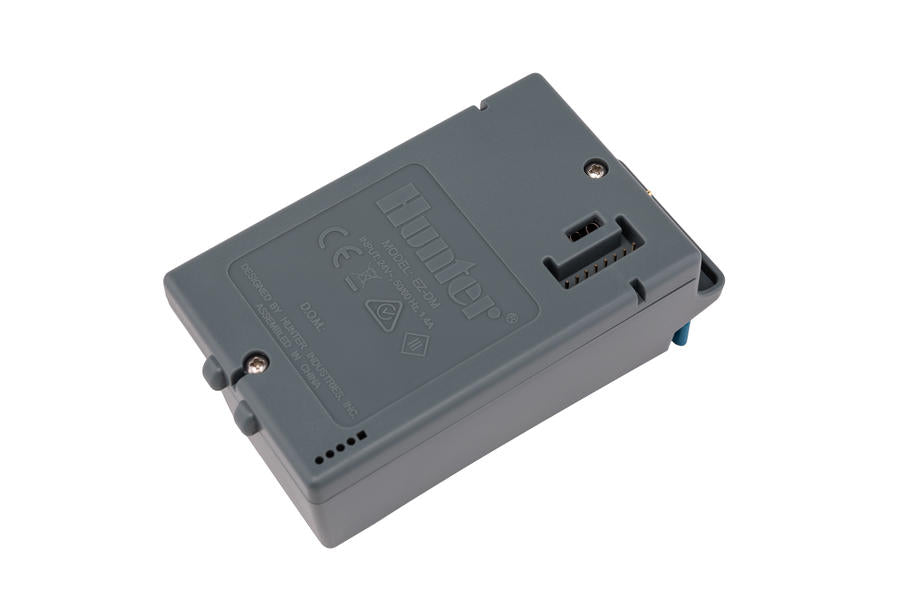

Hunter - EZ-DM - Decoder Output Module for HCC & ICC2 (54 Station)
Bring two-wire technology to more projects than ever before with the revolutionary, low-cost, hassle-free EZ Decoder System for HCC and ICC2 controllers.
Cost and complexity have often limited decoder technology to higher-end systems. However, with the revolutionary EZ Decoder System (EZDS), you get all the advantages of two-wire installations with simpler, more cost-effective technology — so you can bring the power of two-wire control to more projects than ever before.

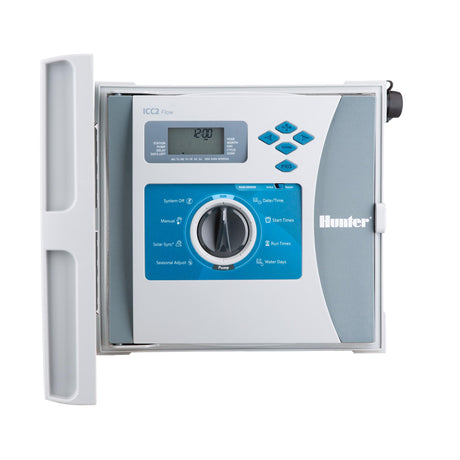

EZDS is compatible with all the features of our Hydrawise™-enabled HCC controller, as well as the ICC2 controller and its web-based Centralus™ management platform. Plug in the EZ-DM two-wire output module to enable up to 54 stations of irrigation, plus a master valve, on a single pair of wires. Then simply place EZ Decoders at each valve!
EZ Decoders are small, waterproof, and come with color-coded wiring and a convenient LED status light. They do not require special wire or connectors to function. Better yet, the system can coexist with conventional output modules, allowing hybrid functionality of both direct-wired valves and decoder operations in the same controller. This technology also permits easy conversion of a conventionally wired system to two-wire using the existing wiring bundle. It’s that easy!
- Number of stations: Up to 54, plus a master valve
- 2 two-wire paths to the field for flexible system design and installation
- No special wire or connectors required
- No special grounding or surge arrestors required in-line, saves time and money during installation
- Programmable decoders with no need to input individual serial numbers
- P/MV can activate via the two-wire path for distant master valves
- Permits hybrid operations of side-by-side conventional and decoder stations (maximum 54 stations) for added flexibility
- EZ-1 decoders have built-in status LED for positive diagnostics
- Electrical output on two-wire path: 24 VAC, 50/60 Hz
- Wire paths possible over 3,000' (see wiring chart below)
- Each EZ-1 decoder has the capability to activate two standard 24 VAC solenoids
- Can operate any two decoders simultaneously for more efficient watering
- Approvals: UL, cUL, FCC, CE, RCM, Industry Canada
- EZ-1 decoders are IP68 rated, submersible
- Warranty period: 3 years
- Centralus™ with ICC2
- Hydrawise® with HCC
- ICV or PGV valves
- Pump start relays (PSR)
EZ Decoders are compatible with standard wire and connectors, making it cost-effective and simple to install.
EZ Decoders have built-in status LED for postive diagnostics.
|American Wire Gauge||Distance (Feet)|
Distances in the Wiring Table are calculated based on 60 Hz for American Wire Gauge, with wire temperature of 122°F, and a 10% safety factor.
