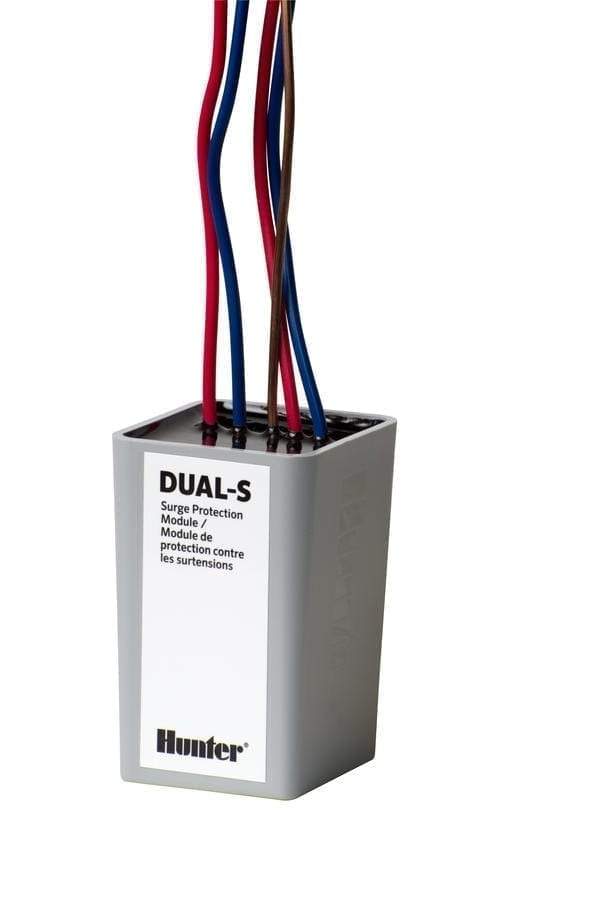

Hunter - Dual-S - Surge Suppression Module

Save 48%
$138.67
$72.48
SKU 1115

Surge Suppression Module

  • For use with I-Core DUAL Controller

    Dual Model Specifications

    • Dual-S external surge protectors (add in-line every 12th decoder or 1000 ft/300 m, minimum)
    • Max. distance to decoder
      • 14 AWG wire path; 5,000 ft.
      • 12 AWG wire path; 7,500 ft.
    • Max recommended distance, decoder to solenoid: 100 ft.
    • Field programmable:
      • Dual decoder module display and push button programming makes it easy to program decoders at the controller itself
      • Dual decoders can also be field programmed with the Hunter ICD-HP. No need to remove decoders from the two-wire path
    • Decoder module displays decoder operation and diagnostic information including current draw in milliamps
    • Can operate up to 48 stations of combined decoder and conventional control making system retrofit easy

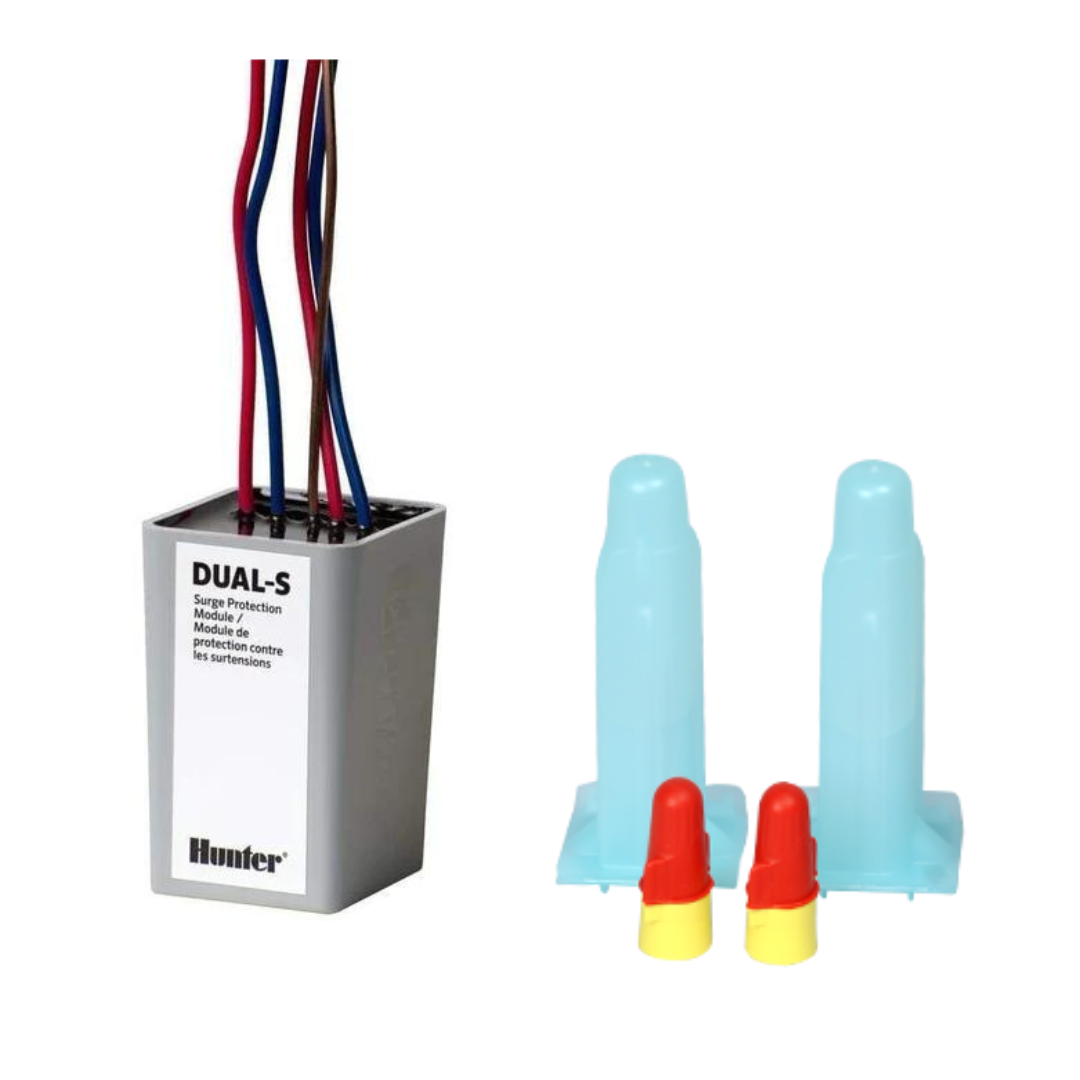

    • Waterproof connectors for connection to two-wire path supplied with all Dual decoders and Dual-S surge protection
    • Number of two-wire paths: 3

    Dual Specifications

    • Max. recommended distance, decoder to solenoid: 100 ft.
    • Max. distance to decoder
      • 14 AWG wire path: 5,000 ft.
      • 12 AWG wire path: 7,500 ft.

    Approvals

    • CE, UL, C-UL, C-tick, FCC

    Downloads

    Dual-S Installation Guide

    Dual Decoder Owner's Manual

    Decoder Worksheet
