• For use with I-Core DUAL Controller

Dual Model Specifications

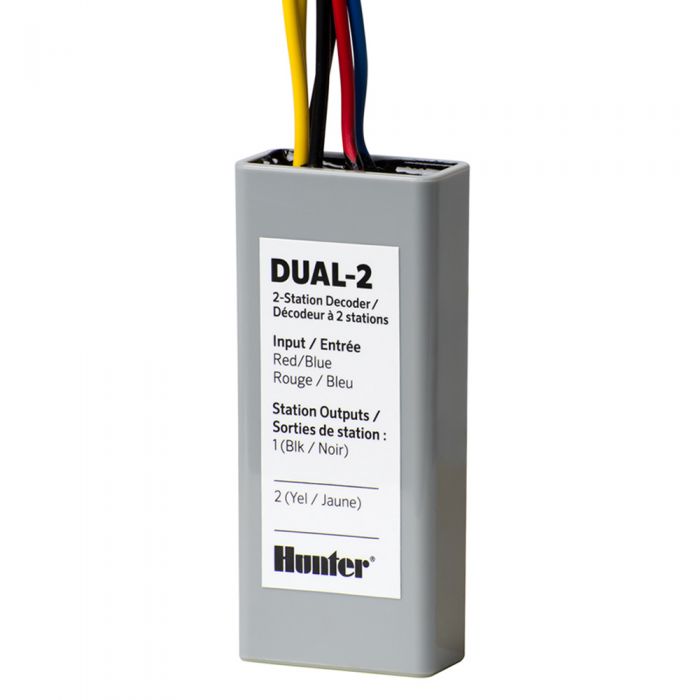

• Decoder station size: 2
• Dual-S external surge protectors (add in-line every 12th decoder or 1000 ft/300 m, minimum)
• Max. distance to decoder
  • 14 AWG wire path; 5,000 ft.
  • 12 AWG wire path; 7,500 ft.
• Max recommended distance, decoder to solenoid: 100 ft.
• Field programmable:
• • Dual decoder module display and push button programming makes it easy to program decoders at the controller itself
  • Dual decoders can also be field programmed with the Hunter ICD-HP. No need to remove decoders from the two-wire path
• Decoder module displays decoder operation and diagnostic information including current draw in milliamps
• Can operate up to 48 stations of combined decoder and conventional control making system retrofit easy

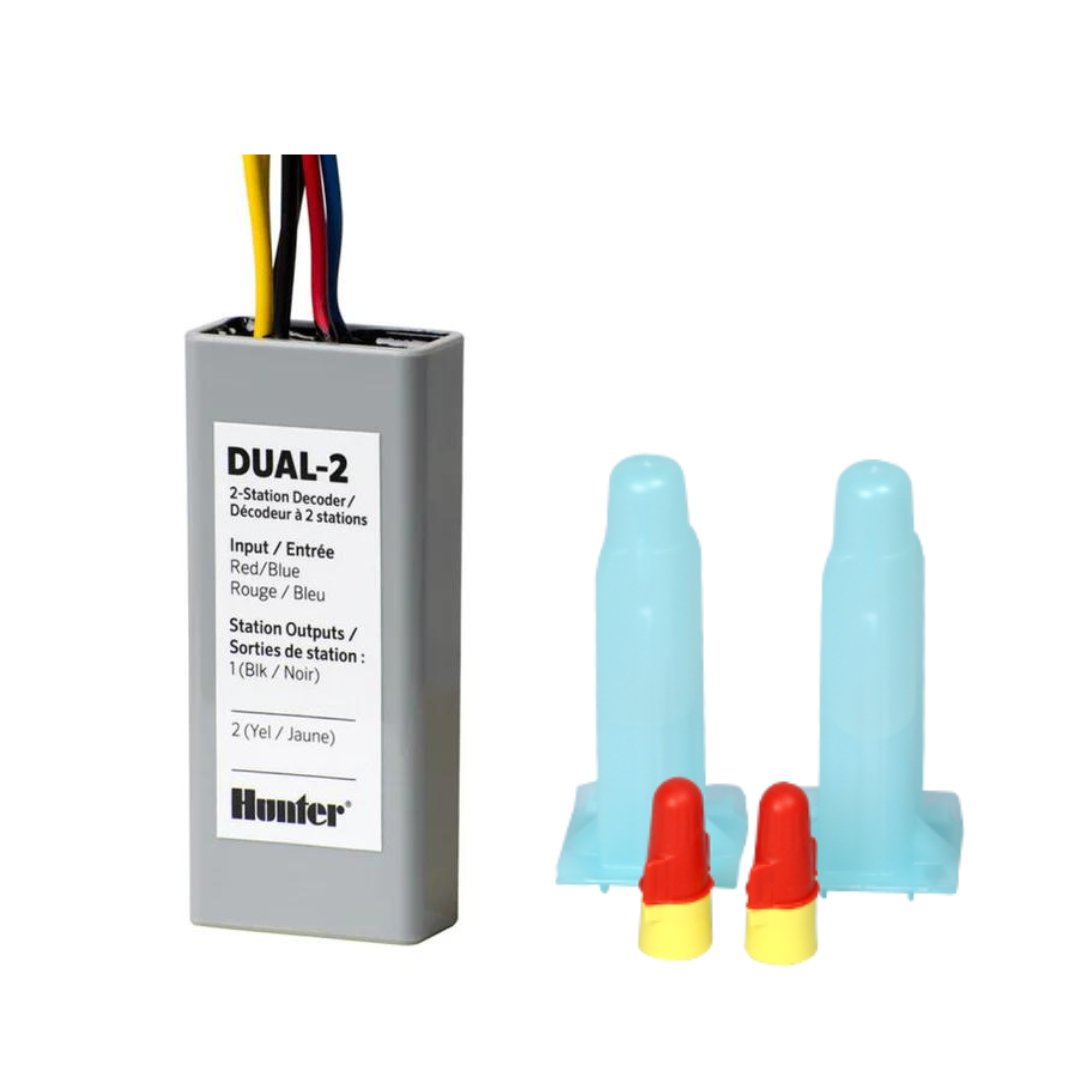

• Waterproof connectors for connection to two-wire path supplied with all Dual decoders and Dual-S surge protection
• Number of two-wire paths: 3

Dual Specifications

• Max. recommended distance, decoder to solenoid: 100 ft.
• Max. distance to decoder
  • 14 AWG wire path: 5,000 ft.
  • 12 AWG wire path: 7,500 ft.

Approvals

• CE, UL, C-UL, C-tick, FCC
