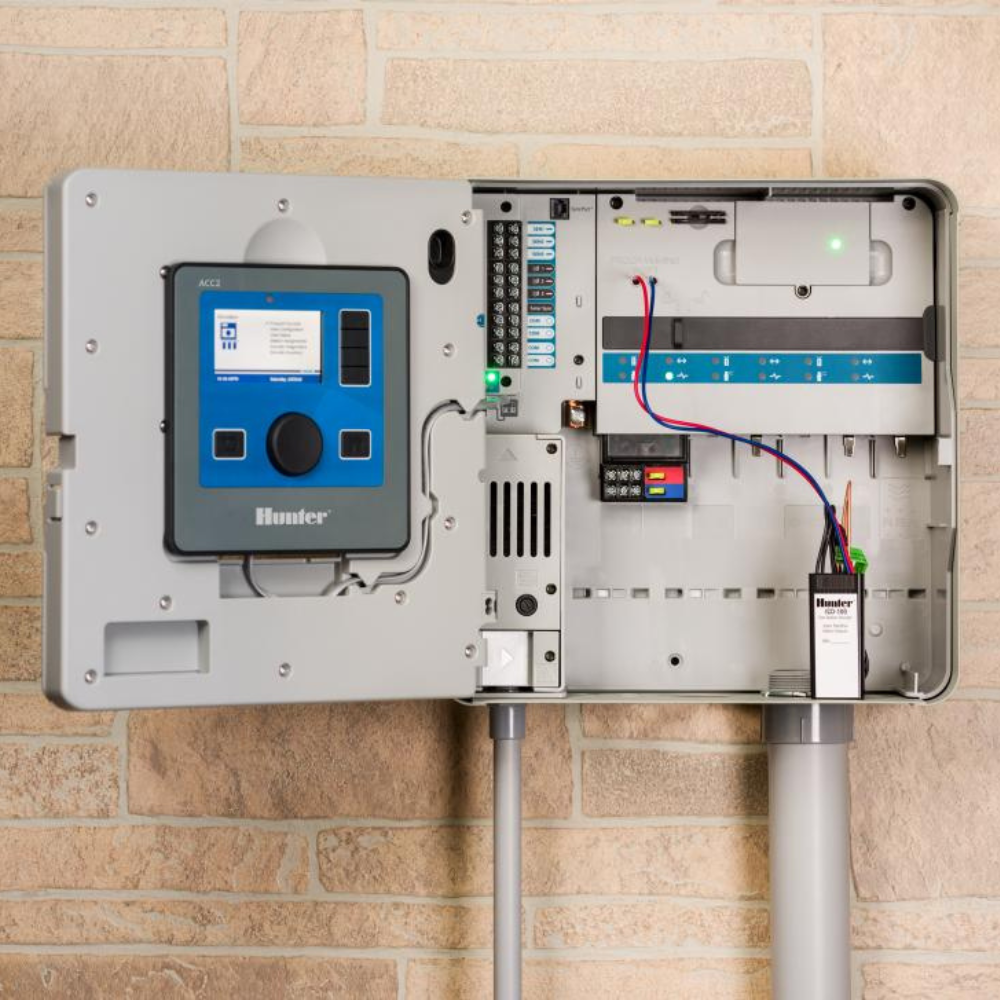

Hunter - A2C-75D-P - ACC2 Decoder Controller, 75-Station Base Model (Plastic)
Hunter - A2C-75D-P - ACC2 Decoder Controller, 75-Station Base Model (Plastic) is backordered and will ship as soon as it is back in stock.
ACC2 Decoder Controller, 75-station base model, plastic wall mount cabinet
The ACC2 Decoder Controller brings intelligent, flexible, and powerful decoder control to the largest landscapes. 75-225 station capability (Expansion modules sold separately).
FEATURES
- 75 Station Base model (Expandable up to 225 with expansion modules)
- 75-Station Expansion Modules Sold Separately (A2C-D75)
- Type: Modular decoder
- Enclosure: Outdoor plastic wall mount
- Full-color, high-resolution backlit display (reversible)
- Independent programs: 32
- Start times per program: 10
- Station run times: 15 seconds to 12 hours
- Optional Block Programming for up to64 groups of up to eight stations
- Up to 30 simultaneous solenoids (20 per output module)
- Optional Cell, Wi-Fi, or LAN interfaces for Centralus connections
- Real-time flow monitoring (up to six flow meters and flow zones)
- Up to six Pump/Master Valve outputs, normally open or normally closed
- Flow Management (runs flow zones to specified capacity)
- Monthly flow budgeting
- Built-in Solar Sync® logic/Solar Sync Delay feature
- SD card updates and log storage
- 12 selectable languages
Advanced Features
- Operates all Hunter ICD Decoders
- Three two-wire paths per output module
- Up to 10,000' on 14 AWG
- Up to 15,000' on 12 AWG - Replaceable automotive fuses included in each output module
- P/MV and flow sensor assignments either locally or via two-wire path
- Decoder inventory and update via two-wire path
- Decoder/solenoid finder
- Wire Test Mode for field diagnostics
- Compatible with wireless ICD-HP Programmer
- Conditional Response Programming allows program or station activation on sensor input
- Compatible with Centralus web-based control systems
OVERVIEW
The ACC2 Decoder Controller is specifically designed to manage Hunter ICD Decoders on large projects, and it’s expandable to 225 stations. The controller offers extreme flexibility, with 32 independent programs, 10 start times, and a variety of overlapping, stacking, and management configurations.
The powerful Flow Manager takes full advantage of sophisticated irrigation designs, watering as much as possible in the shortest amount of time — up to 30 simultaneous solenoids (20 per output module).
The all-new design features a full-color, backlit LCD display in a reversible facepack that operates all functions in either position, making field service a breeze. Finally, advanced features such as Flow Monitoring deliver fast diagnostics of abnormal flow conditions and accurate histories for up to six flow zones.
Now available with a variety of communications options for the cloud-based Centralus™ Irrigation Management Platform, the ACC2 Decoder Controller is truly second to none.
OPERATING SPECIFICATIONS
- Transformer input: 120/230 VAC
- Maximum AC current draw: 120 VAC, 2 A/230 VAC, 1 A
- Transformer output: 24 VAC, ~3 A
- P/MV outputs (24 VAC): up to six; three dedicated outputs (0.8 mA) or optional assignment to decoders
- Simultaneous solenoid operation: up to 30 (20 per output module)
- Sensor inputs: 3 Clik, 1 Solar Sync, and up to 6 Flow sensors (3 included)
- Approvals: Wall Mounts IP44, Plastic Pedestal IP34,NEMA 3R, UL, cUL, FCC, CE, RCM
- Warranty period: 5 years
Communication Options (Sold Separately)
- Wi-Fi: 2.4 GHZ, 802.11 b/g/n (antenna included)
- LAN: Ethernet with RJ-45 connection
- CELL: A2C-LTEM for CATM1 and NB-IoT 4G cell service connection
