Hunter - A2C-1200-P - ACC2 12-Station Indoor/Outdoor Controller (Plastic)
Hunter | SKU:
A2C1200P
$94596
$1,78063
Unit price
/
Unavailable
Hunter - A2C-1200-P - ACC2 12-Station Indoor/Outdoor Controller (Plastic) is backordered and will ship as soon as it is back in stock.

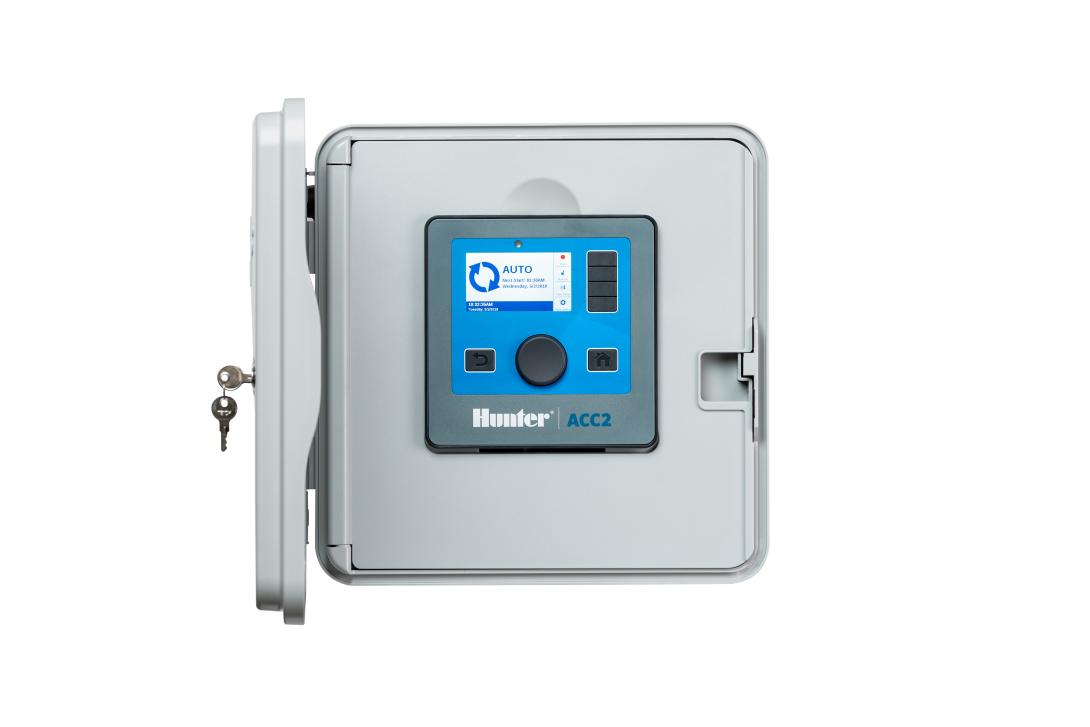

Hunter ACC2 Conventional Controller, 12-station base model, plastic wall mount cabinet
Powerful. Intelligent. Flexible. Hunter’s new ACC2 Controller delivers advanced water management to meet the demands of large-scale commercial projects.
FEATURES
- 12 to 54 stations (Operates up to 14 simultaneous solenoids)
- Expands in 6 Station increments with expansion modules (Sold Separately)
- Up to 6 flow sensor inputs and 6 P/MV outputs
- 32 automatic programs (10 start times each) for precise plant management
- Block function to group stations and consolidate large systems
- Built-in Solar Sync® logic for smart water savings
- Real-time flow monitoring detects and diagnoses leaks in up to 6 flow zones
- Flow management optimizes watering at safe velocities
- High-visibility, full-color display with reversible facepack
- Conditional Response “if/then” programming for active responses to sensor inputs
- User management password protection, with two levels of access
- Optional plug-in communications modules for cloud or network control (Sold Separately)
- Detailed alarm logs in plain language Extreme service lightning protection
- Easy Retrieve™ Memory programming backup and restore
- Non-Water Windows to inhibit accidental irrigation
OVERVIEW

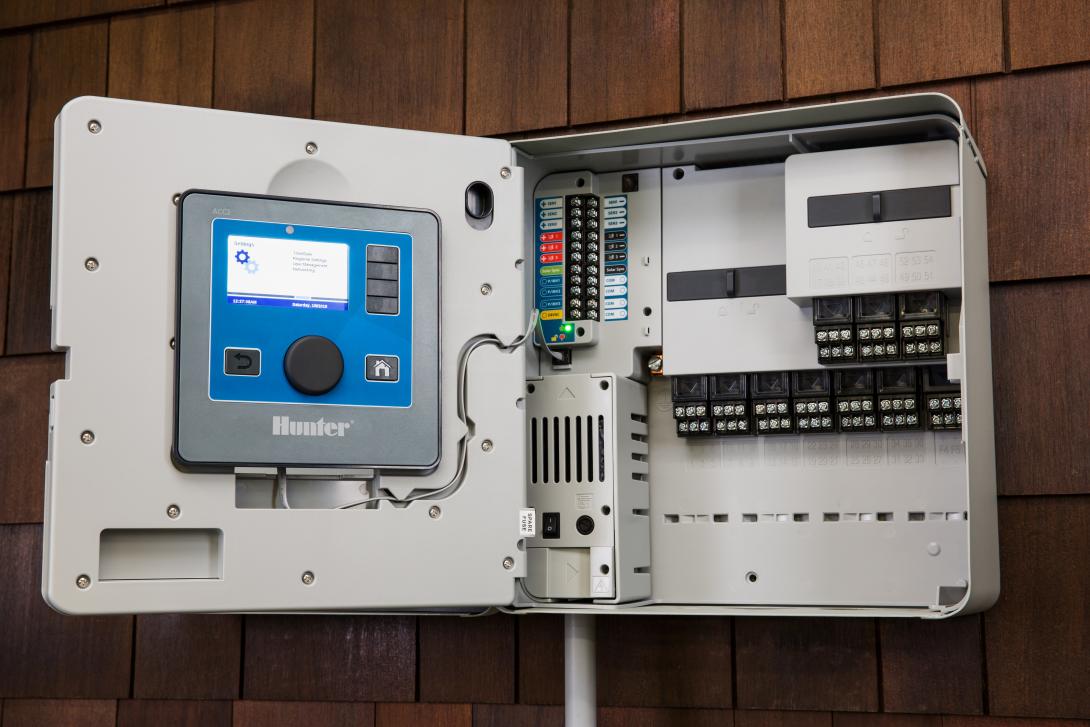

At its core, the ACC2 has a powerful transformer, allowing it to safely run up to 14 valves simultaneously, bringing maximum efficiency to large watering schedules. The ACC2 can be configured for any commercial project, from 12 to 54 stations, with up to 6 flow meter inputs, and up to 6 pump/master valve outputs. Its easy-to-read, backlit display and unique reversible facepack make program setup and diagnostics fast and efficient.
The ACC2 has built-in intelligence, with the ability to maintain preset flows on up to 6 flow zones simultaneously. It continually monitors the system for breaks, leaks, and electrical faults, interrupting irrigation and pinpointing the source should problems arise. It can even respond to sensor input with specific actions like switching water supplies when water levels drop, initiating a program when soil moisture is low, and enabling other creative, special applications.
The ACC2 offers extreme flexibility with 32 independent programs, 10 start times, and a variety of overlapping, stacking, and flow management configurations. Innovative Conditional Response features use sensor input and other conditions to automatically take pre-programmed actions. Optional external alarm output alerts maintenance personnel to alarm conditions, and the available Wi-Fi module works with nearly any mobile device.
With the ACC2, you’ve got the most advanced commercial controller available, with maximum capability for your largest projects.
OPERATING SPECIFICATIONS
- Transformer input: 120/230 VAC
- Maximum AC current draw: 120 VAC, 2 A/230 VAC, 1 A
- Transformer output: 24 VAC, ~3 A
- P/MV outputs (24 VAC): Up to 6; 3 included, 0.8 A each
- Sensor inputs: 3 Clik, 1 Solar Sync, and up to 6 Flow sensors (3 included)
- Approvals: Wall Mounts IP44, Plastic Pedestal IP34,NEMA 3R, UL, cUL, FCC, CE, RCM
- Warranty period: 5 years
