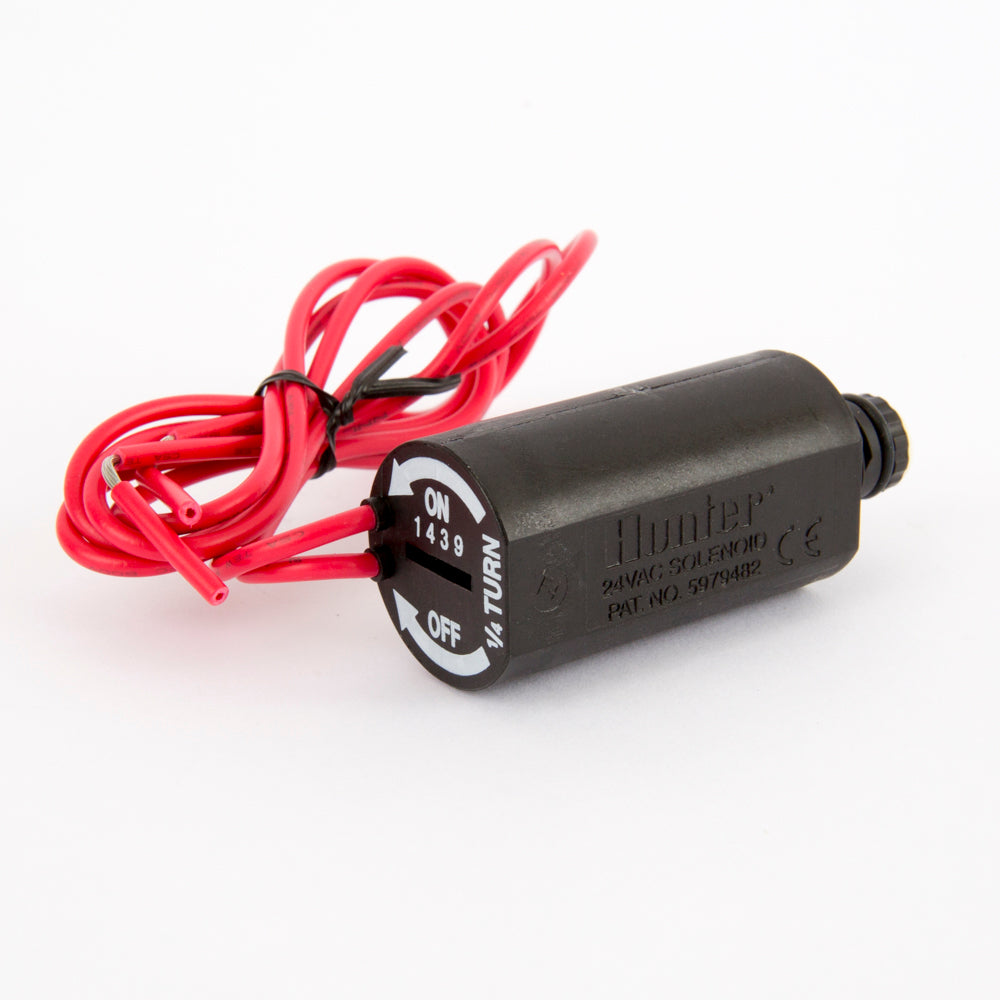

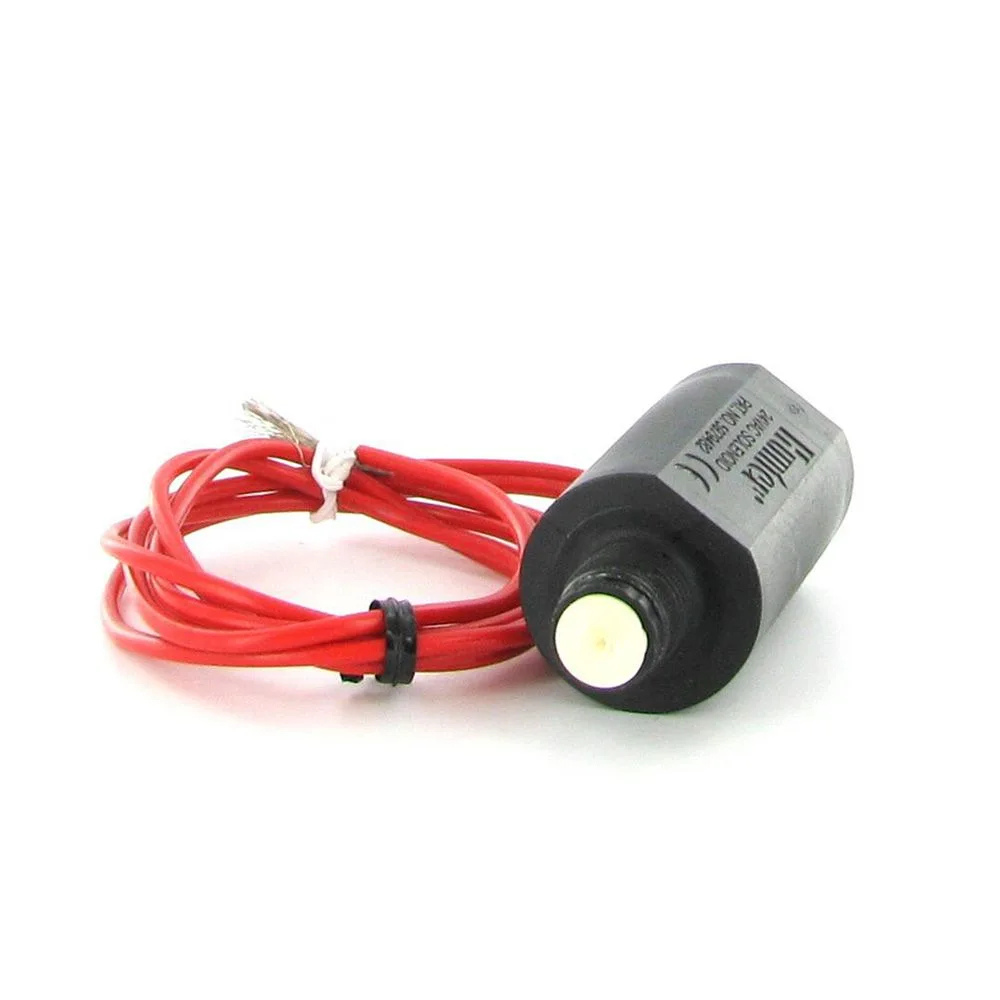

For maximum protection against water intrusion, the 24 V Hunter AC Solenoid features an encapsulated design that completely seals the electronic components in heavy-duty plastic. The captured plunger simplifies servicing by reducing the risk of lost internal parts.

Features

• Compatible with all Hunter irrigation valves; ASV, PGV, SRV, ICV, HPV, and the PGV Jar Top Valves
• Replacement Solenoid
• Energy-efficient, low-power design
• Engineered with ultra-durable, heavy-duty materials for maximum longevity
• Stops water intrusion and protects critical electrical components
• Pre-wired with 18" of valve-control wire
• Captive plunger offers easy servicing of solenoid
• Manual quarter-turn on/off control
• Easy installation with no tools required

Electrical Specifications

• Minimum opening/operating voltage: 19 VAC
• Maximum recommended voltage: 28 VAC
• Current at 24 VAC:
• 350 mA inrush, 190 mA holding, 60 Hz
• 370 mA inrush, 210 mA holding, 50 Hz
• Maximum operating pressure: 220 PSI
• Wire leads: 18'' of 18 AWG UL-approved wire

Manuals

• Solenoids Brochure
