Hunter - 468000 - Replacement Transformer for Pro-C & X-Core Outdoor Series Timers

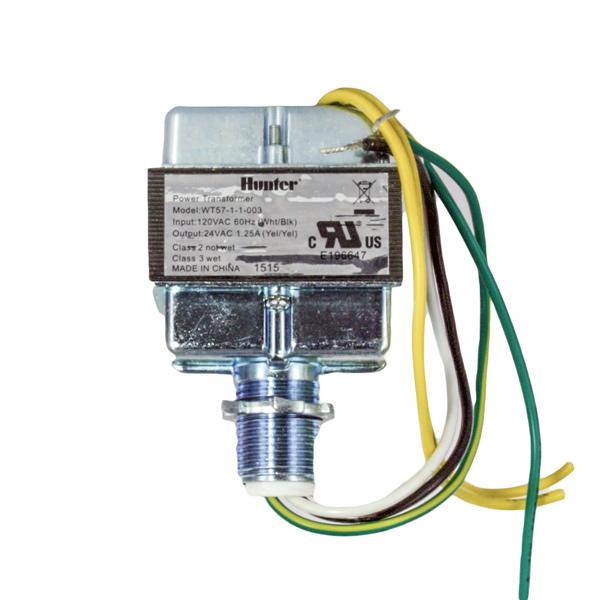

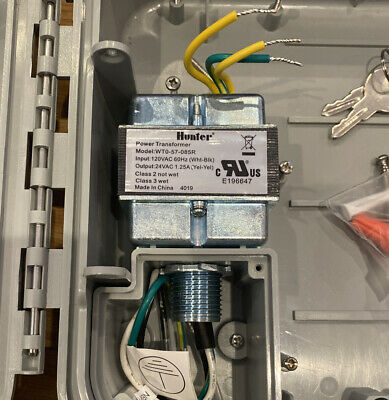

Hunter 468000 Replacement Internal Transformer

• For Outdoor Models Only: PC, PCC, & XC Controllers
• Internal Transformer
• 120V/24VAC
• Class 2 Power Unit

BLANK DISPLAY / NO AC MESSAGE on Controller

The "NO AC" or "Blank" display is a diagnostic message telling you that the controller has stopped receiving AC power. For the "NO AC" message, the controller is most likely running on the power supplied by the backup battery.

• Check the power source by plugging a lamp or radio into the wall outlet to verify there is power at the outlet. If your controller is not plugged into a wall outlet, the power source is hardwired.

Caution: High voltage testing on the transformers primary power side should only be done by a professional electrician or irrigation contractor.

If you have power at the outlet, the next thing to check is the transformer output. Use a voltmeter to check the voltage either on the two transformer wires or at the two AC screw terminals on the controller. The transformer should have an output in the range of 24VAC to 28VAC.

• If the wall outlet has 110VAC and the transformer has no voltage output, you need to replace the transformer.
