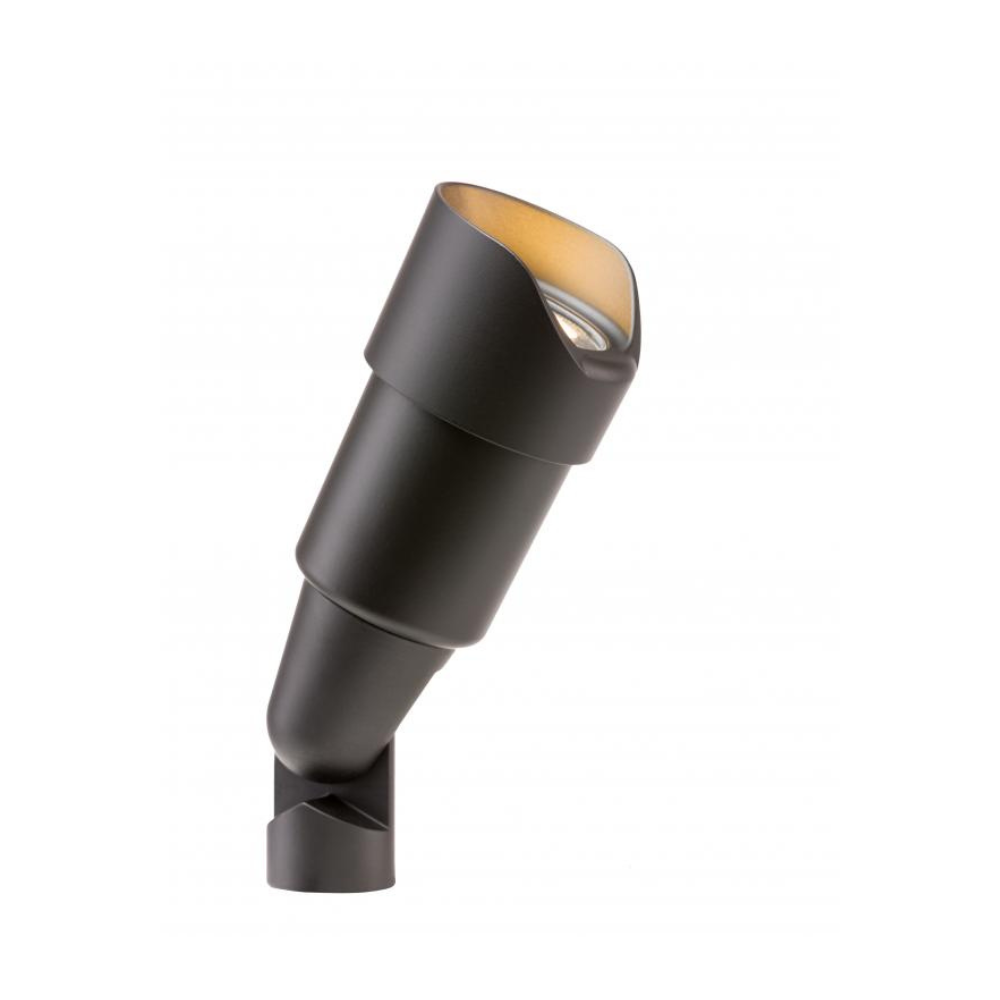

FX Luminaire - RS Up Light (Black, No Lamp) - Vantage Collection
The Core of the FX Up Light Family. The RS allows designers to use different lamps to create custom effects while maintaining consistency in style. With knowledge of the science and art of lighting, a professional designer can choose a lamp source to suit the desired effect or emotional response.
Included Accessories & Parts
- 10' (3 m) lead wire, lock ring (1), and spike (1).
*Lamp Not Included (MR16 Lamp Sold Separately),
Features:
- Die-cast zinc/aluminum alloy
- TGIC powder coat finish (Black Color)
- MR-16 lamp type (Sold Separately)
- Compatible with Luxor® technology
- ProAim™ adjustability
- Input voltage: 10-15V
Specifications:
- Materials - Zinc/aluminum alloy housing, shroud, and knuckle with stainless steel hardware
- Socket - MR16 GU5.3 socket with retaining clips. Ceramic socket base with heat-resistant contact pad. Stainless steel retaining clips ensure high spring force retention.
- Lamp - No Lamp Included. (Sold Separately). Compatible with any MR16 LED Lamp up to 8 Watts and Halogen MR16 lamps up to 35 Watts.
- Wiring - 18 AWG (1 mm); SPT-1W; 220°F (105°C); 300V; 10' (3 m) length.
- Power - Input 10–15 VAC/VDC, 50/60 Hz. Remote transformer required (specify separately)
-
Optics - Stainless steel spring in housing ensures the lamp and additional lenses stay flush against the glass lens, optimizing output and beam angles. Recess the lamp farther inside the housing to hide additional glare with the Recessor Ring (specify separately).
- Lens - Tempered, low-iron, soda-lime glass lens with shock resistance and high tolerance for thermal expansion and stress.
- Hardware - Stainless steel angle lock screw. Includes 10" (254 mm) ABS slotted installation spike.
- Finish - Durable polyester TGIC powder coat finish, providing superior outdoor weathering in all conditions. Tested to ASTM standards.
- Knuckle - Machined brass knuckle with ½"-14 (13 mm) NPSM threads. Compress and lock features prevent slip after installation. Complete adjustability over 220° of vertical adjustment.
- Installation Requirements - Designed for installation in the upward direction only. Use waterproof, weather resistant wire connectors.
- Warranty - 10-year limited warranty
Downloads & Resources
- Spec Sheet
- Up Lights Install Sheet
- Up Lights Designer/Standard
- Up Lights Support
- Vantage Collection Brochure
-
