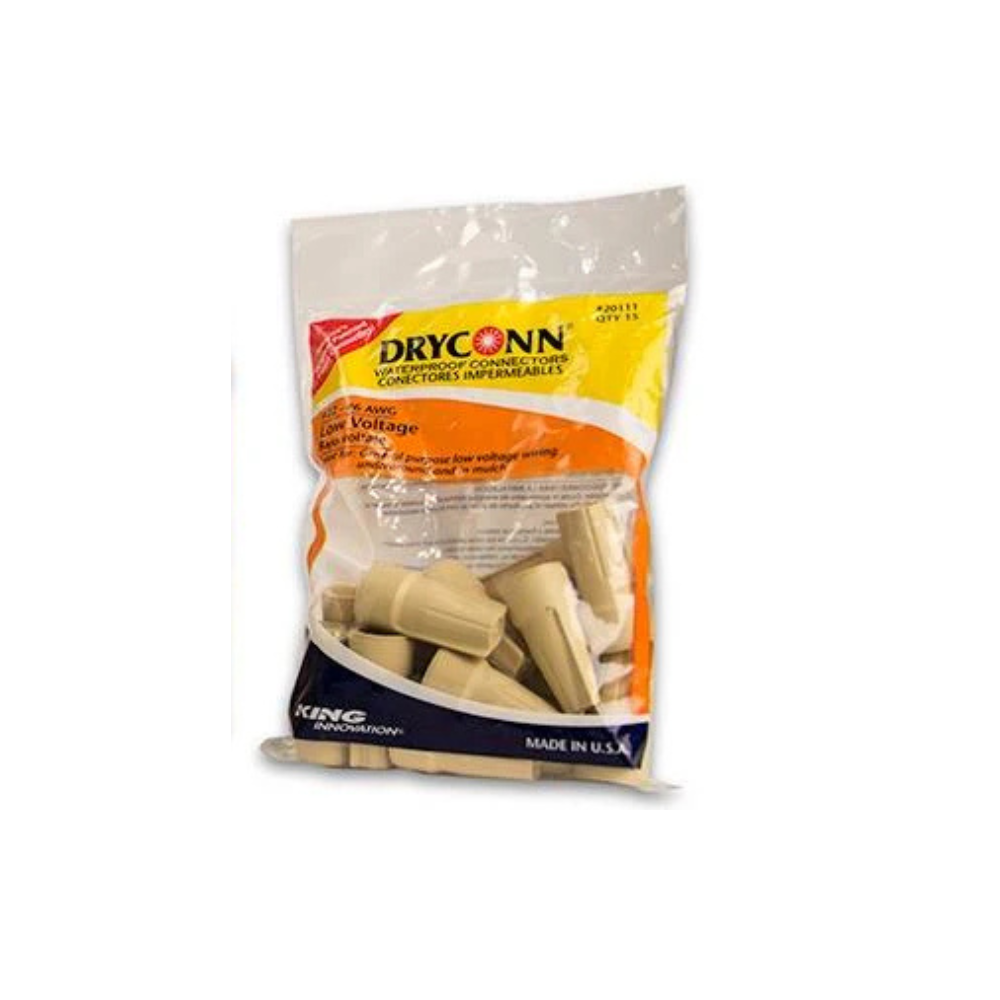

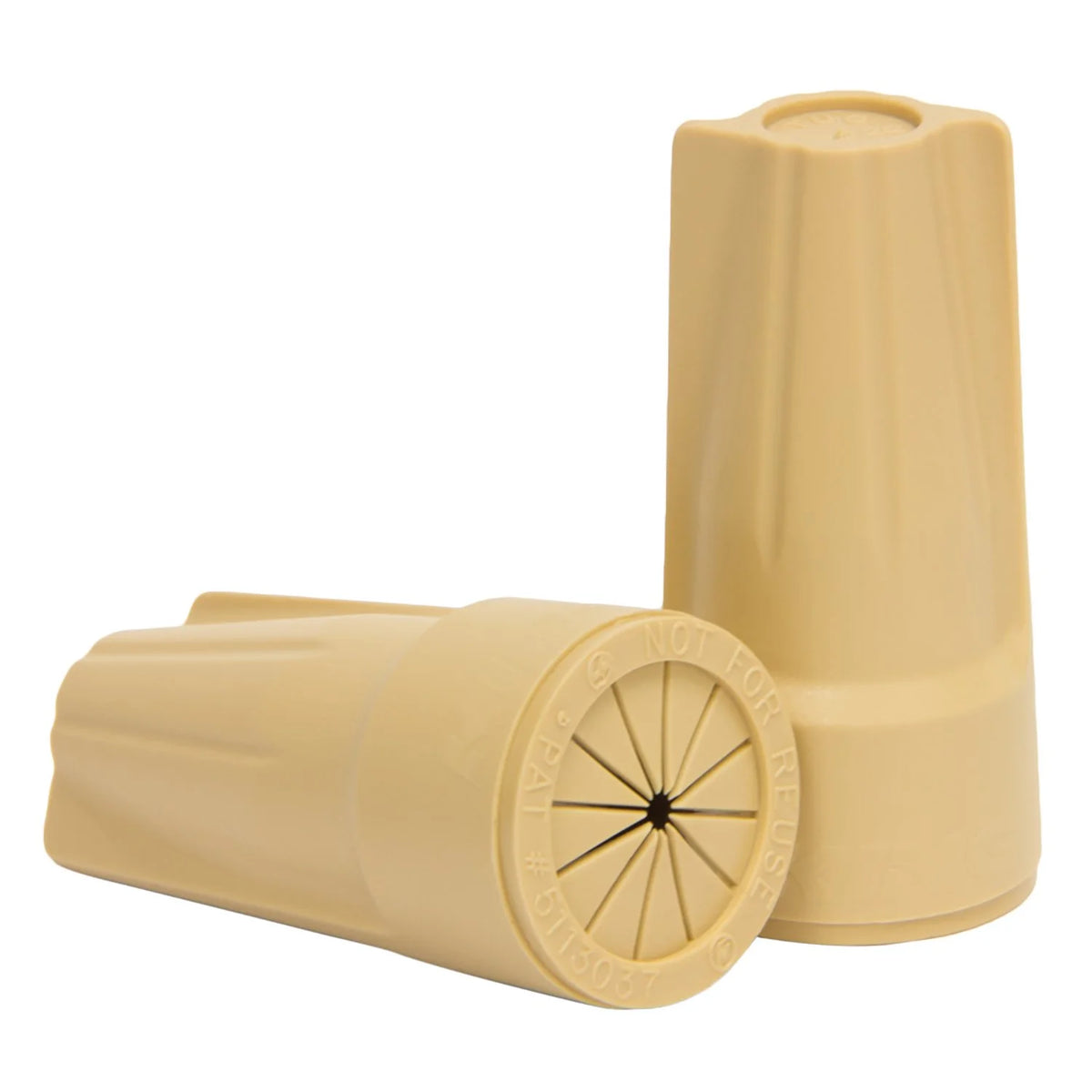

20111 - Tan Low Voltage, 15pc. Bag

FEATURES & BENEFITS:

• 30V/10 AMPS Max
• No junction box required
• Filled with petroleum based sealant
• Suitable for all low voltage applications
• For use in lighting, irrigation, and low voltage underground wiring

PRODUCT SPECIFICATIONS & MEASUREMENTS:

Max. Voltage: 30V/10 AMP
Connector Size: 13/16" x 1 9/16"
Wire Type: Copper/Copper
Wire Range: Min #22/Max #6
Temperature Rating: 75°C (167°F)
Petroleum Sealant: -29°F to 250°F

Documents

Tan Low Voltage Specification Sheet

Low Voltage Wire Combinations
