DOTDAY TERRA is a non-woven, needle-punched polypropylene geotextile in 4, 6 and 8 oz weights for French drains, filtration behind retaining walls, soil separation, driveways and access roads, and erosion control. Water passes through the thickness of the fabric while soil fines are held back. Black, calendered on both sides. UV-stabilized. Choose the weight by the job: 4 oz for light-duty drainage and separation, 6 oz for mid-weight stabilization and drainage, 8 oz for driveways, access roads and heavy stabilization.
Wrap your drain trench with TERRA so it does not silt up.
Best for: French drains, Filtration behind walls, Soil separation, Driveways and access roads, Erosion control, Retaining walls.
Install Tips: Line the whole trench with enough extra to fold over the top. Add washed stone and pipe, then wrap the fabric over the stone with a 12 inch overlap before backfilling. Use heavier weights under heavier loads.
Specifications (typical values, DOTDAY TDS Rev 1.0, September 2026):
- 4 oz: 4.0 oz/yd²; thickness 1.0 mm; grab tensile 100/100 lb; trapezoid tear 45/45 lb; CBR puncture 300 lb; AOS 0.20 mm; water flow 4,800 l/min/m²
- 6 oz: 6.0 oz/yd²; grab tensile 160/160 lb; trapezoid tear 60/60 lb; CBR puncture 400 lb; AOS 0.20 mm; water flow 4,000 l/min/m²
- 8 oz: 8.0 oz/yd²; grab tensile 205/205 lb; trapezoid tear 85/85 lb; CBR puncture 500 lb; AOS 0.16 mm; water flow 3,300 l/min/m²
- All weights: grab elongation greater than 50% (MD and CD); non-woven needle-punched polypropylene; black; calendered both sides

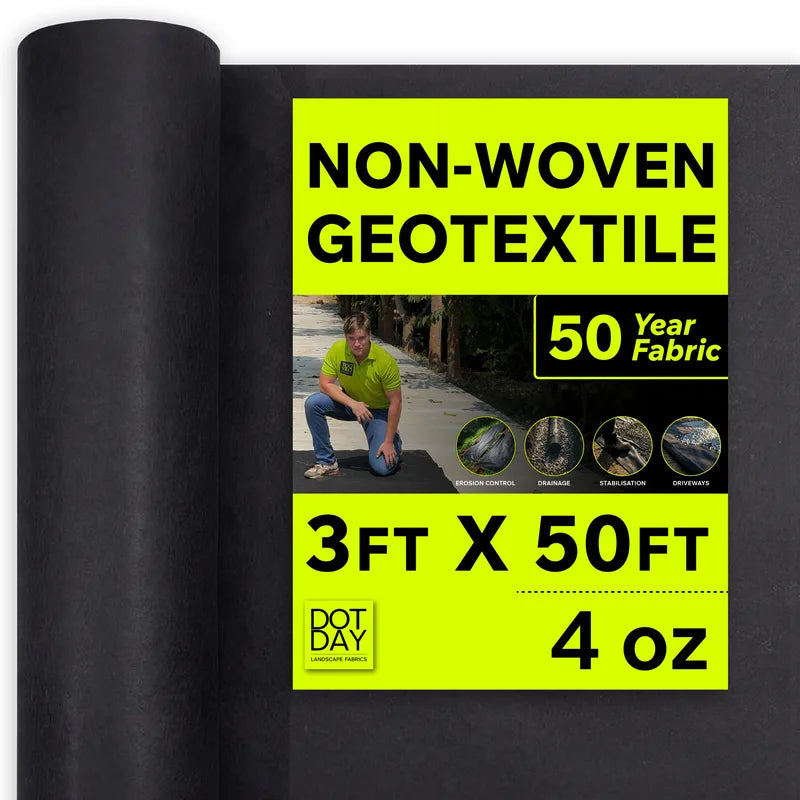

Roll sizes: 4 oz: 3 ft x 50 ft; 8 oz: 6 ft x 50 ft.
Shipping: Free US shipping, no minimum order value.
Best Jobs for an Irrigation Customer
- French drains: line the trench, add stone and perforated pipe, wrap the top
- Channel drain and catch basin trenches, downspout and pop-up emitter lines
- Behind retaining walls, under driveway and access road base
FAQs
- Can drip tubing go under or over the fabric? Over is easiest for maintenance: lay SHIELD, run drip on top, then mulch. Emitters stay accessible.
- Which fabric for a French drain? TERRA. Woven fabrics like SHIELD are not made for filtration. Use 4 oz for typical yard drains, 6 oz for heavier soils or longer runs.
- Which fabric under gravel? XBAR. SHIELD is for mulch and is not rated for stone loads.
- Does water pass through? Yes, all three are permeable. TERRA and XBAR carry published flow rates.
- How do I secure it? Overlap seams and secure with landscape staples. Rolls ship as fabric only.
- Where are the specs? thedotday.com/technical-data-sheets. Values are typical, not MARV.
-
