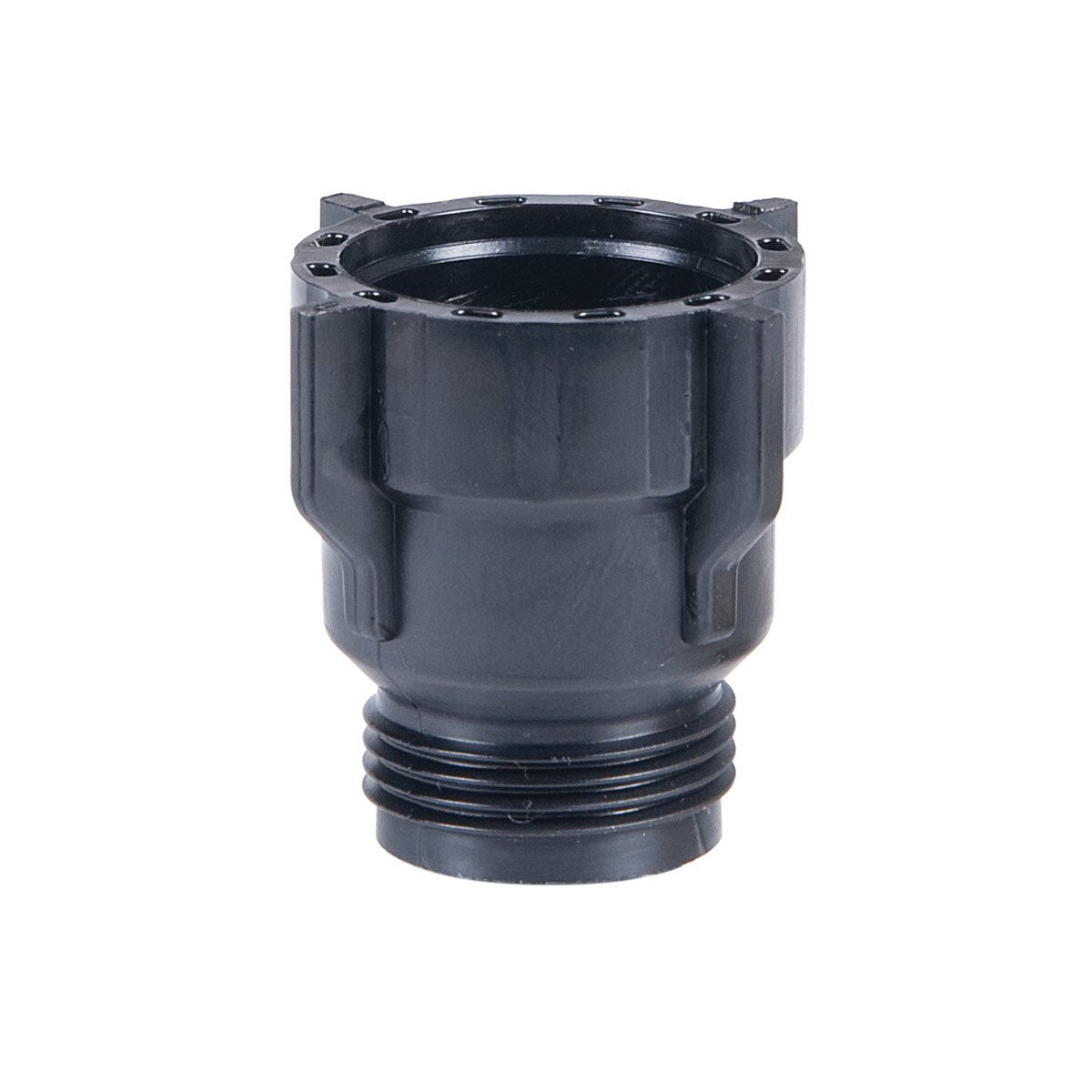

DIG - Valve Adapter for use with LEMA 1600HE and S-305DC solenoids - 30-920

$4.35
SKU 30-920

Valve adaptor for BERMAD series 200, HIT series 500, DOROT series 80,GRISWOLD series 2000, DW and BUCKNER series VB valves

The LEMA 1600HE solenoid actuator is designed to be used in conjunction with the LEIT system including LEIT 4000, LEIT X and LEIT XRC ambient light powered controllers. It is an encapsulated, watertight, two-way magnetic solenoid actuator that requires minimal power to operate with the LEIT 4000, X and XRC series controllers. Once the original solenoid is removed, the LEMA 1600HE solenoid actuator can be installed with one of our seven adapters, allowing conversion of most brand name valves.

Solenoid Actuator Features

  • Designed to work with LEIT 4000, LEIT X and XRC controllers only
  • Potted technique for sealed, waterproof construction
  • Captured plunger and spring for reliable operation
  • Uses two 18 gauge color-coded 18” wires
  • Made of durable plastic

Adapters Features

  • For use in conjunction with the 1600HE and S-305DC solenoids
  • Easy to install
  • Seven adapters are available to fit most brand name valves
  • Made of durable plastic

Specifications

  • Solenoid actuator thread: 11/16"-12 UN
  • Pressure range: 10-150 PSI (.7-10.5 BAR)
  • Control orifice: .065 (1.7 mm)
  • Weight: 5.3 oz. (150 g)
  • Weight with adapter: 5.6 oz. (160 grams)
  • Dimension top: 1.375" (3.5 cm) L X 1.880" (4.8 cm) W
  • Dimension bottom: 1.180 (3.0 cm)
  • Overall length: 3.1 (7.9 cm)
  • Overall length with adapter: 3.45 (8.76 cm)
  • Lead wires: 18” (45 cm) UL 1015, AWG 16, 300V - red and white wires
  • Temperature range: 32°F to 150°F (3°C to 65°C)
  • Materials:
    • Solenoid housing: glass-reinforced nylon
    • Plunger & spacer: 430F stainless
    • Plunger rubber cap: EPDM
    • O-ring: Buna-N
