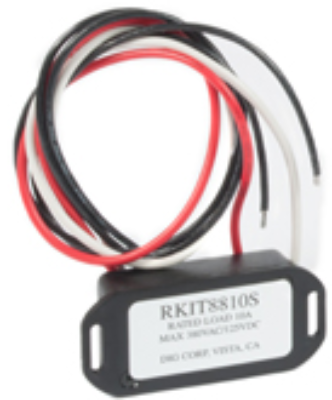

DIG - RKIT Waterproof Relay Interface - RKIT-8810S

The RKIT waterproof relay interface provides a simple way to switch a relay of an AC or DC circuit allowing the LEIT series controllers to turn a pump on and off. To enable a LEIT controller to turn on a pump the RKIT must be connected to the station connector strip unit labeled MV/P. If any other AC or DC equipment is needed for relay switching, it can be connected to any other available station connector strip.

Relay Interface Kit Features

• Waterproof construction

• Easy to install Choosing the Correct RKIT Model

LEIT System Relay Interface Kit Specifications

• High power V2 pulse input

• Rated load 10A, 250 AC or 30V DC

• Maximum voltage 380 VAC 125 VDC
• Length: approx. 1.9" (4.7 cm)

• Diameter: approx. 1.1" (2.7 cm)

• Weight: approx. 8 oz (220 g)
