DIG - Patio Drip Watering Kit - FM01AS

DIG's FM01AS Patio Drip Watering Kit is a starter kit with pressure compensating (PC) drip emitters to water up to 10 hanging baskets, pots or containers in or around a patio or pool area. It can be used to start an installation from a faucet or a garden hose. The kit can be expanded to cover up to 15 small-to-medium-sized hanging baskets using additional micro tubing and PC drip emitters with the same flow rate. It includes a 3/4" in. backflow preventer, 3/4" in. FHT x 1/4" in. compression adapter, 60' of 1/4" in. micro tubing, 10 PC drip emitters, 1/4" in. tees and all necessary parts to complete the installation.

• Use to water hanging baskets, pots or containers in or around a patio or a pool area
• Contains 10 1-GPH PC button drip emitters for up to 10 pots or baskets
• Applies water at a low application rate leading to less surface evaporation from leaves and soil
• Offers flexibility in watering frequency and application rate, minimizing surface compacting and runoff
• No special tools or glue are needed
• Saves money by significantly lowering the cost of system
• DIG's drip irrigation products may be exempt from residential and commercial watering restrictions (check local codes)
• Ease of watering with lower water use and less water waste

Product Specifications

• Maximum incoming operating pressure: 50 PSI
• Recommended operating pressure: 25 PSI
• Maximum recommended flow rate @ 25 PSI: 15 GPH (.25 GPM)
• Drip micro tubing length & size: 60' x 1/4" in.
• PC drip emitter flow rates: 1 gallon per hour (GPH)
• Total flow rate for this kit: 10 GPH (.166 GPM)

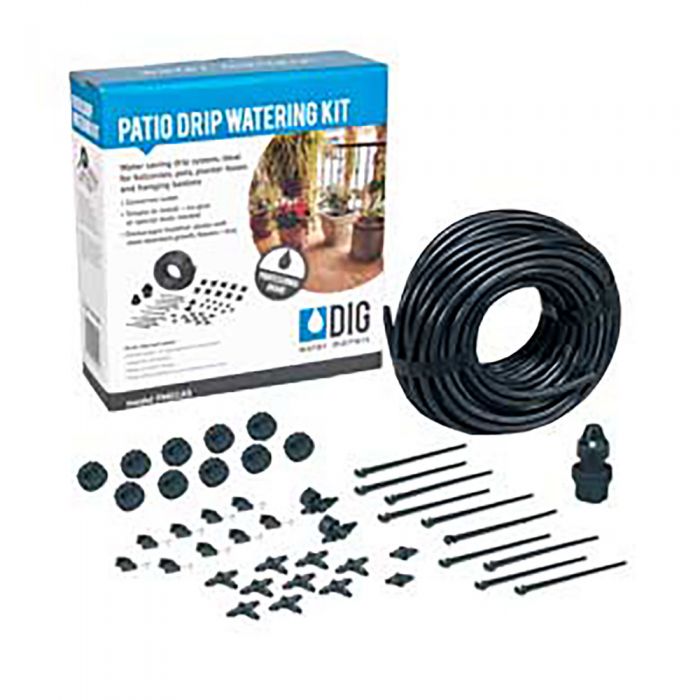

Kit includes

• 1 - 25 PSI FHT X MHT Pre-set Pressure Regulator
• 1 - 3/4" in. Backflow Preventer
• 1 - 3/4" in. Adapter with Screen Filter
• 10 - 1 GPH PC Drippers
• 9 - 1/4" in. Tees
• 2 - 1/4" in. Barbed Connectors
• 10 - 14 Mounting Clips
• 10 - Tubing Holder Stakers
• 1 - 60' of 1/4" in. Micro Tubing
• 2 - 1/4" in. Ball Valves
• 1 - Installation Instructions

Manuals & Literature

• Installation Instructions
• How to Use
