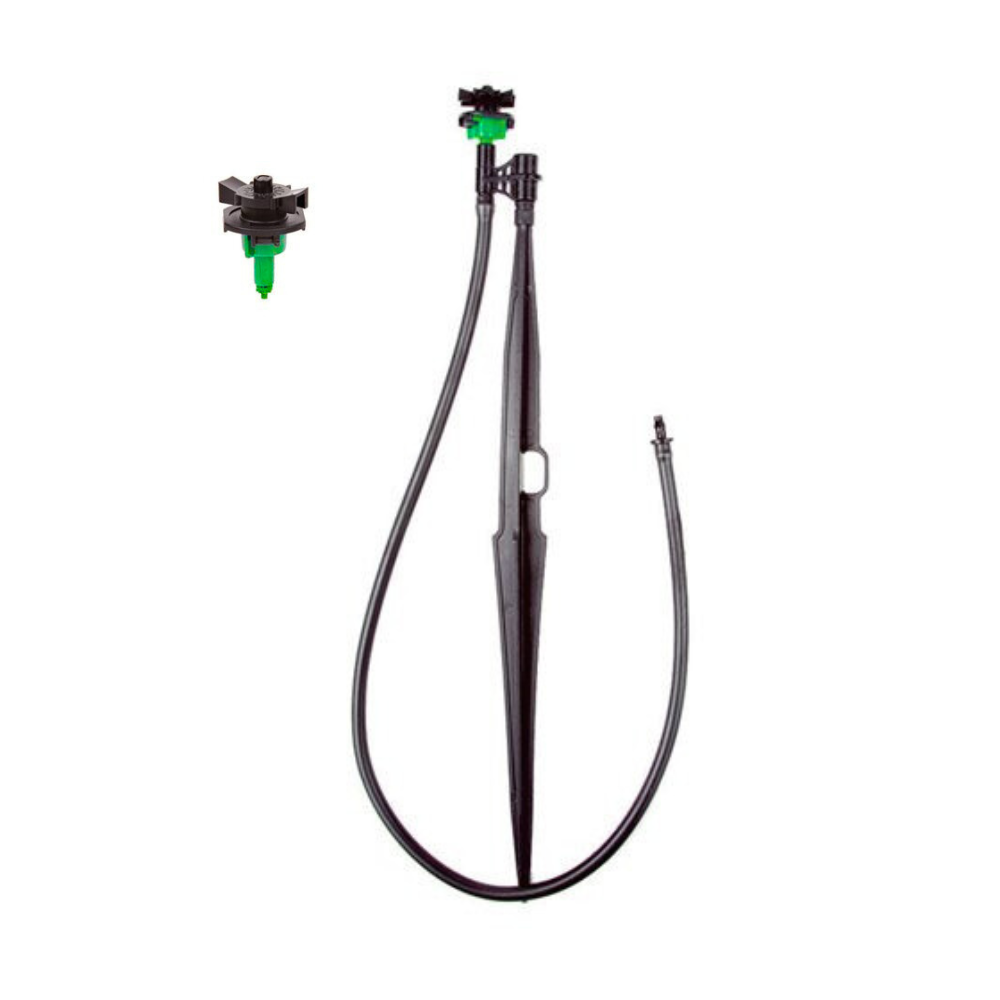

DIG - Mini Compact Micro Sprinkler Stake Assembly (24', 24 GPH, 360°) - 52-861-24-24
DIG - Mini Compact Micro Sprinkler Stake Assembly (24', 24 GPH, 360°) - 52-861-24-24 is backordered and will ship as soon as it is back in stock.
Why so “cheap” at CheapSprinklers? Low prices by design — same parts, no compromise
Our prices are lower because of how we run our business — not because the product is different — and we pass those efficiencies directly on to you.
You’re receiving the same brand-new, factory-sealed item sold by big-box, supply-house, or bloated online-warehouse sellers — delivered direct to you, for less.
- Bulk Purchasing: We buy in high volume to lower per-unit cost
- Low Overhead: No physical storefronts or unnecessary middlemen
- Price-First Model: Our business is built around keeping everyday prices as low as possible — so you can put the savings toward other projects or your business.
- Fast & Efficient Fulfillment: Streamlined US warehouse operations keep costs down and orders moving fast.
The Result: Genuine products with full manufacturer warranty — delivered fast, without paying inflated big-box, supply-house, or bloated online-warehouse markups for the same parts.
CheapSprinklers Product Guarantee How we guarantee authenticity and warranty coverage
All products sold by CheapSprinklers are brand new and factory sealed. This DIG Drip Emitter (52-861-24-24) is sourced directly from DIG and ships from us in new-in-box retail packaging.
We’ve been sourcing and supporting irrigation products for professionals and DIYers through both brick-and-mortar and online channels since 1981.
If there’s ever an issue, CheapSprinklers stands behind what we sell and will help coordinate any warranty claim or replacement.
- Genuine New DIG Drip Emitter: no knockoffs, no refurbished, no old stock
- Factory Sealed: shipped in original new-in-box retail packaging
- Current Production Inventory: no discontinued or clearance stock
- Complete DIG Warranty: full manufacturer coverage begins when your order is delivered
The Result: Peace of mind. You’re installing top-quality equipment — and if there’s ever an issue with this Drip Emitter, you’re fully supported by CheapSprinklers and DIG.

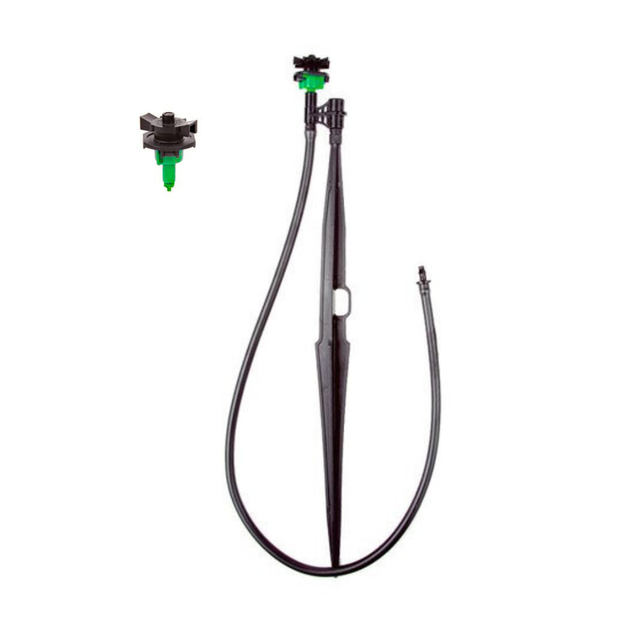

Mini Compact Micro Sprinkler Assembly with 24” micro tubing, .270 OD barb and 24 GPH Insect Proof Spinner (24' Diameter, 24 GPH, 360° Pattern)
DIG’s mini-compact micro sprinklers, series 861, present an advanced and economical solution for overhead micro irrigation of vegetables, row crops and under or between trees canopies. The micro sprinklers’ unique drive mechanism achieves strong spinner propulsion at lower pressure. A small backup filter ensures extra protection and serves as a secondary nozzle, keeping the droplet size even and providing excellent distribution uniformity. The mini-compact micro sprinklers use interchangeable components with a wide selection of nozzles suitable for applications in the irrigation of seedlings, young saplings and mature trees. The 360° Insect Proof Micro Sprinkler has a wetting diameter of 24 feet and a flow rate of 24 GPH.
Features
- Green Color Mini-Sprinkler for flow identification
- Excellent performance with uniform water distribution
- Large water passage
- Large droplets
- Head closes downwards after operation to prevent dirt and insects from entering the sprinkler (insect-proof)
- Built-in filter
- Trouble-free operation even at low pressure
- Strong spinner propulsion at low pressure
- Frame construction without a bridge allows a complete 360° circle
- Completely assembled on a 13” spike with 24” of .160″ ID x .270″ OD micro tubing
- Made of durable materials, ensuring resistance to most chemicals and fertilizers
- The micro sprinkler has a small backup filter for extra protection
Specifications
- Material: polyacetal
- Flow rate: 24 GPH
- Diameter of coverage: 24’
- Operating pressure: 15 - 30 PSI (1 - 2.0 BAR)
- Pattern: 360°
- Trajectory angle: approximately 12°
- Droplet size: medium
- Filter requirement: minimum of 120 mesh (130 micron)
Applications
- Used in orchards, greenhouses and nurseries
- Can be used for frost protection and cooling
- For overhead irrigation of vegetables and row crop
- For irrigation under trees (ideal for walnuts)
Manuals & Literature
-
Box QuantityN/A
