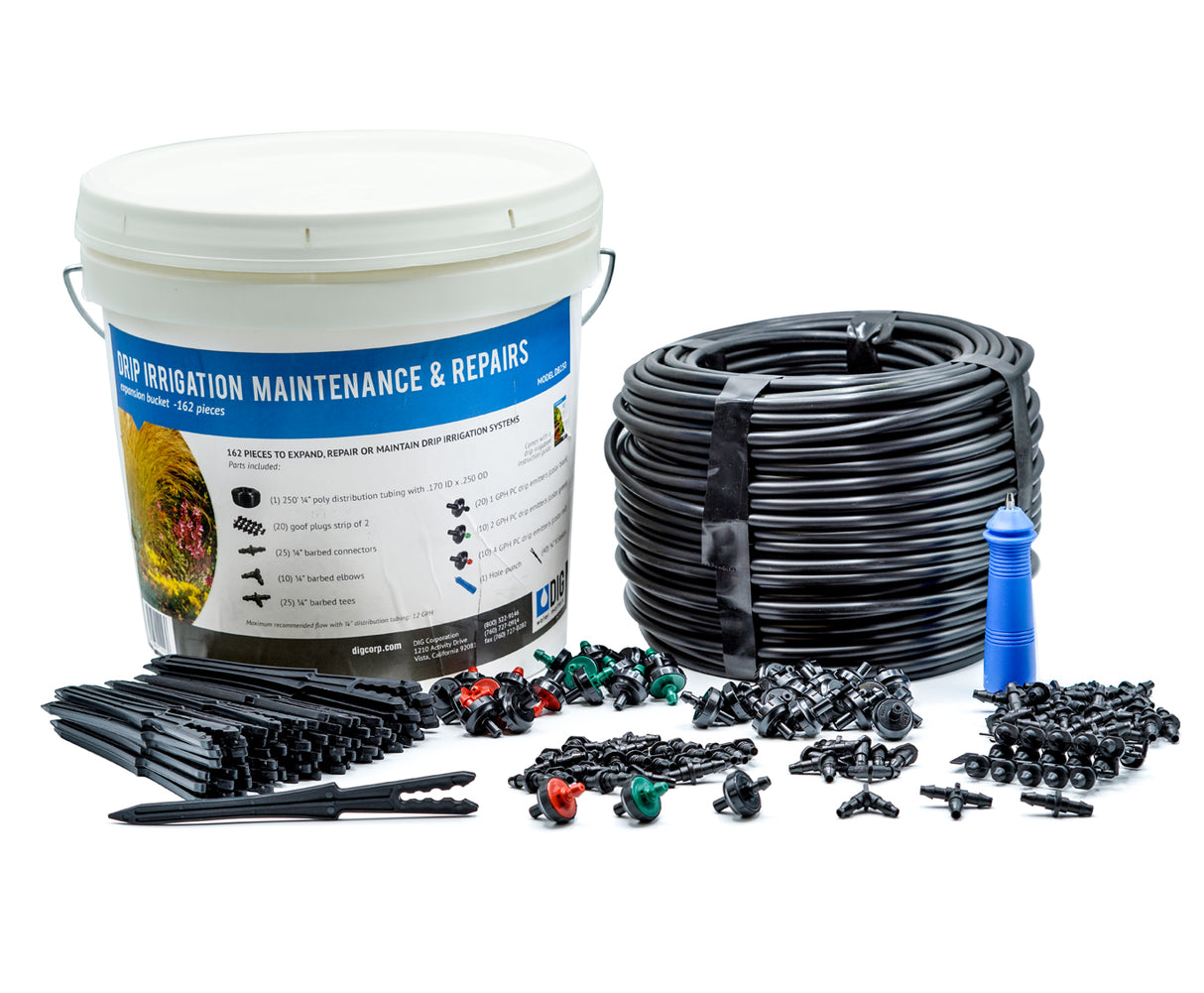

DIG - Micro Drip Irrigation Maintenance & Repair Kit (162 Piece) - DB250

$59.99
SKU DB250

DIG's DB250 Drip Irrigation Maintenance & Repair Expansion Bucket is a fully loaded 162-piece kit that is used to repair, expand or maintain your drip irrigation system. It contains all the essential 1/4" fittings, PC drippers, stakes and 1/4" micro tubing to help you keep your existing drip system maintained and operating at peak efficiency. All frequently used parts as well as a 1/4" punch tool are included in the convenient, easy-to-carry bucket, which can also be used to store all of your drip parts in one place.

This kit features our versatile, color-coded, pressure-compensating drippers in three flow rates (1, 2, and 4 GPH) to efficiently repair, add to or modify your exiting drip system. The kit is economically priced well below the cost of the individual parts combined.

Features

  • Replace or repair drippers, micro tubing and small sized connections
  • Fully loaded with 162 pieces to repair, expand or maintain drip irrigation systems
  • Forty pressure-compensating drippers in 1, 2 and 4 GPH
  • No special tools or glue are needed
  • Saves money by significantly lowering the cost of system components
  • DIG's drip irrigation products may be exempt from residential and commercial watering restrictions (check with local water provider)
  • Includes our free Drip Irrigation Guide for installing a drip system

Specification:

  • Maximum recommended flow using the 1⁄4" distribution tubing: 12 GPH
  • Premium micro tubing (poly) length: 250' with .170 ID x .250 OD
  • PC drip emitter flow rates and color code:
  • 1 GPH (4 L/H) color code – black
  • 2 GPH (8 L/H) color code – green
  • 4 GPH (12 L/H) color code – red
  • PC drip emitter operating pressure: 10-45 PSI
  • Total number of components: 162
  • UPC code: 840620100236

Box Contents

qty description
1 250' of 1/4" poly distribution tubing with .170 ID x .250 OD
20 1 GPH PC drip emitters (black)
20 goof plugs strip of 2
10 2 GPH PC drip emitters (green)
25 1/4" barbed connectors
10 4 GPH PC drip emitters (red)
10 1/4" barbed elbows
25 1/4" barbed tees
40 1/4" V stakes
1 hole punch
