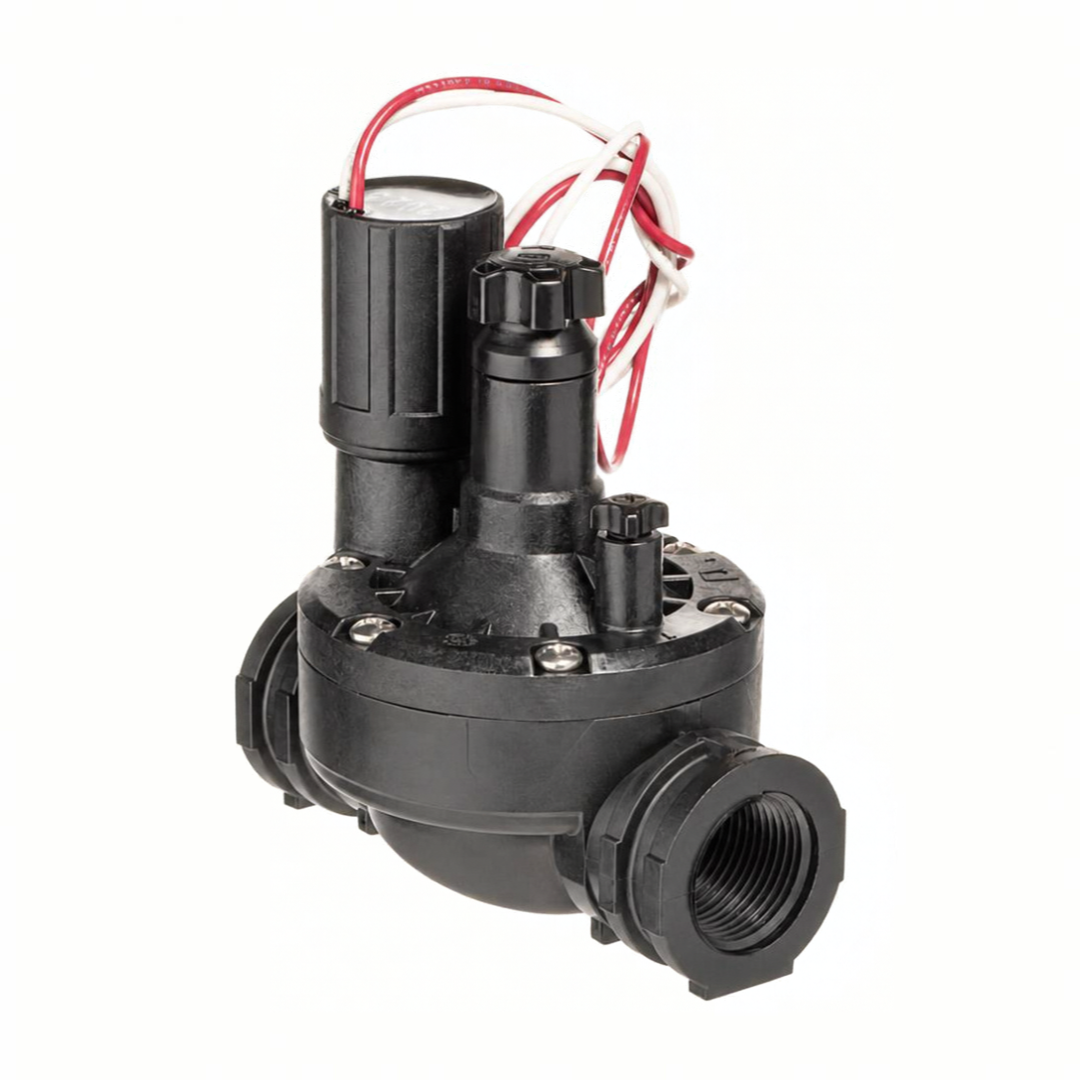

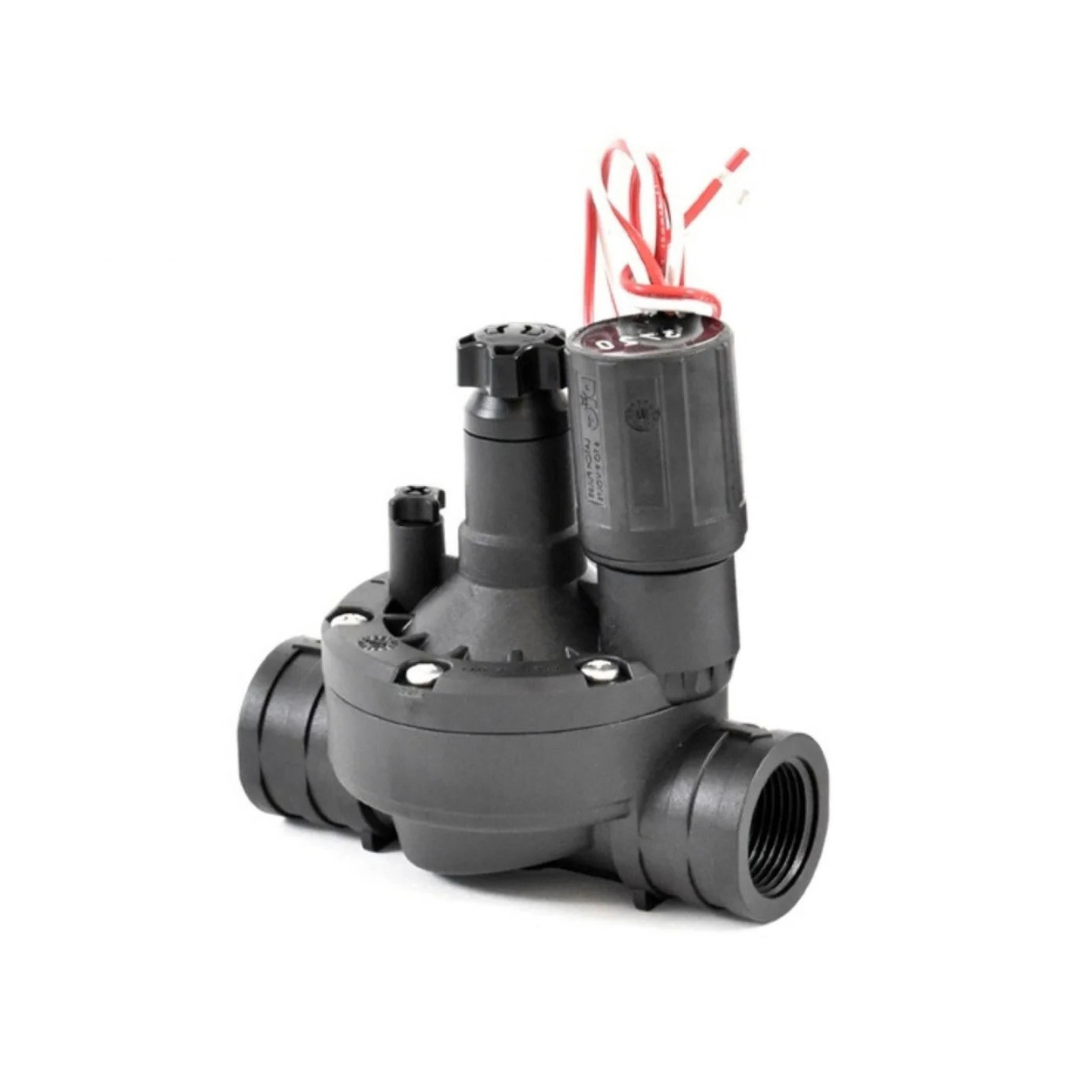

DIG - 3/4'' In-Line Valve w/ Flow Control & DC Latching Solenoid - 305DC-075

DIG  |  SKU: 305DC-075
$4252 $4295


Delivery and Shipping

Add some general information about your delivery and shipping policies.

3/4″ Inline DC Valve for use with 720A, 740A, 760A and LEIT-1 controllers

DIG’s 305DC-075 plastic inline (globe pattern) valve, with a 6-12 VDC, two-way magnetic latching solenoid are suitable for residential, commercial and agricultural irrigation systems. They support excellent hydraulic performance and long life operation. The globe valves operate with DIG’s battery operated controllers and LEIT 2 ET solar powered controller, and use an encapsulated, watertight, two-way magnetic latching solenoid that requires minimal power to operate. The 305DC-XXX series valves are constructed of weather-resistant, glass-reinforced nylon and a stainless-steel spring to provide balanced opening and closing at a pressure rate of up to 150 PSI.

Specifications

  • Type: globe valve with two-way magnetic latching solenoid
  • Operating pressure: 10 to 150 PSI, (.7 to 10.5 bar)
  • Body style: globe
  • 3/4" NPT female inlet and outlet
  • Operating flow range:
    • .1 to 28 GPM (.23 to 6.4 m3h)
  • Solenoid: 6 -12 VDC, two-way magnetic latching, normally closed, bidirectional pulse
    • Voltage rate: 6 -12 VDC
    • Coil Resistance: 4.7Ω +/- 0.3
    • Pulse Width: minimum 10 mSec
  • Operation mode:
    • Red + and white – latch to open
    • Red – and white + released to closed
  • Control orifice: 0.65 +/- 0.0002 (1.7 mm)
  • Lead wires: 18” (45 cm) UL 1015, AWG 16, 300V - red and white wires
  • Temperature range: up to 150 Fahrenheit (0-65 C)

Features

  • Constructed of glass-reinforced nylon with a stainless-steel spring; non-corrosive materials
  • High flow rate with low pressure loss
  • Compact design with minimal space
  • Simple design structure for easy maintenance
  • Bonnet secured with 6 SS screws for easy service
  • Normally closed
  • Easy inline maintenance
  • Uses encapsulated, watertight, two-way, 6 to 12 VDC magnetic latching solenoid
  • Smooth valve opening and closing prevents pressure surge hazards
  • Rugged, reinforced self-cleaning diaphragm provides reliable operation even with contaminated water
  • Balanced diaphragm supported by SS spring allows for low opening pressure and secured closing
  • Flow control handle for water flow adjustment and drip-tight manual shutoff
  • Manual internal bleed override via the solenoid

Dimensions:

  • 4.5" H x 4.25" L x 3.12" W, (11.5 cm H x 11 cm L x 8 cm W)
  • Solenoid dimension top: 3.1" (7.9 cm) L X 1.18" (3.0 cm) D
  • Solenoid dimension bottom: 3.1" (7.9 cm) L x 1.18" D (3.0 cm)
  • Valve solenoid thread housing: 3/4”-20 UNES-2A
  • Adapter thread: 11/16”-12 UN female thread X male ¾”-20male thread
  • Solenoid thread: 11/16”-12 UN
  • Material:
    • Valve body and cover: Glass reinforced nylon
    • Diaphragm: NBR
    • Metal parts and screws: Stainless Steel 303 and 430F
    • Solenoid body: Glass reinforced nylon
    • Solenoid plunger rubber cap: EPDM 80
