DIG - Drip & Micro Sprinkler Kit - GE200

Save 40%
$88.37
$52.98
SKU GE200

The GE200 Drip & Micro Sprinkler Kit is one of DIG’s bestselling kits, suitable for residential gardens planted with roses, shrubs, groundcovers, flowerbeds and trees. The kit can cover up to 700 sq. ft and can be expanded to cover more than 1000 sq. ft using additional drip tubing, micro sprayers and drip emitters. This kit contains all the parts needed to start a system from a faucet or a garden hose. The kit includes a 3/4" backflow preventer, 3/4" 25 PSI pressure regulator, 3/4" swivel adapter, 200' of premium 1/2" drip tubing with .600 ID x .700 OD, 50' of 1/4" micro tubing, 11 micro sprayer assemblies with 13" stakes and micro tubing with barbs, 20 1-GPH PC drip emitters and all the necessary parts needed to complete the installation.

Features

  • Use to water roses, shrubs, groundcovers, flowerbeds and trees; ideal for hillsides
  • Complete kit; covers up to 700 sq ft (can be easily expanded)

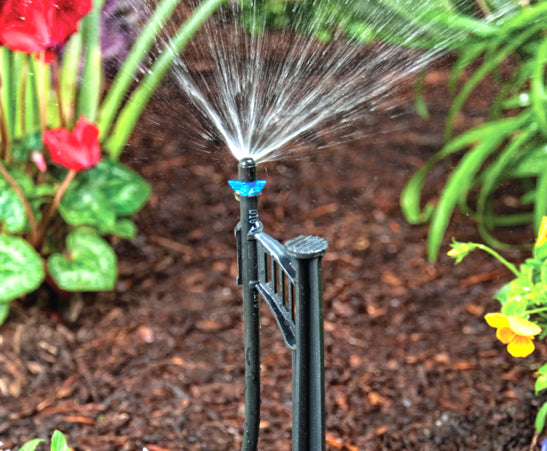

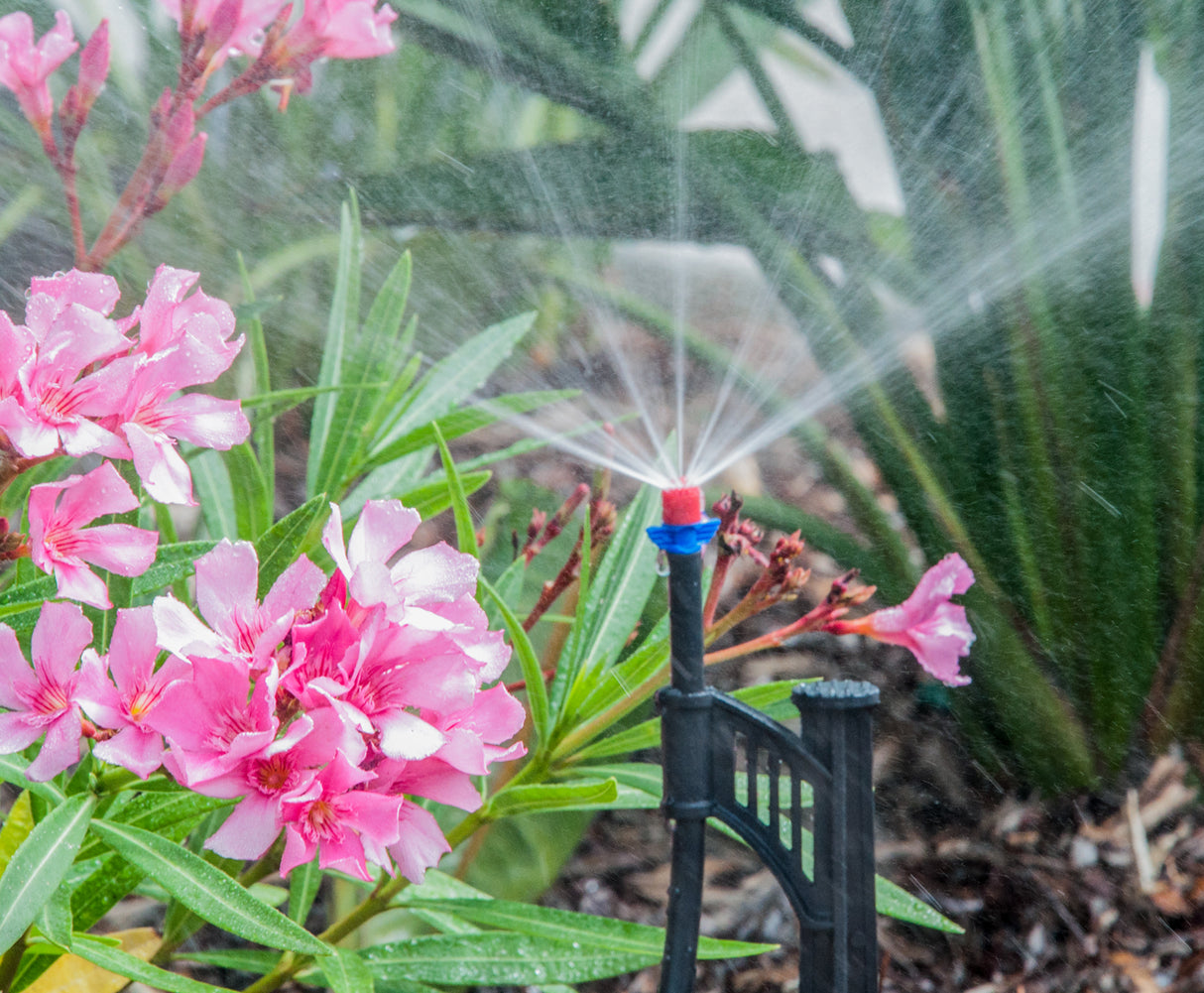

  • Contains 11 micro sprayer assemblies, including three 360°, four 180° and four 90° patterns, and 20 1-GPH PC button drip emitters
  • Applies water at a very low application rate reducing surface evaporation from leaves and soil
  • Micro sprayers are useful as water remains in the upper soil layers where the roots are developing
  • Easy to install
  • Provides flexibility in irrigation frequency and low application rate minimizes soil compaction and surface runoff
  • Designed for new and existing landscapes, including difficult terrain such as slopes and oddly shaped areas
  • No special tools or glue are needed
  • Save money by significantly lowering the cost of system components compared to conventional irrigation systems
  • DIG's drip irrigation products may be exempt from residential and commercial watering restrictions (check with local water provider)

Product specifications

  • Maximum incoming pressure: 100 PSI
  • Operating pressure: 25 to 30 PSI (25 PSI present pressure regulator included)
  • Maximum recommended flow rate: 220 GPH (3.7 GPM)
  • 3/4" FHT x MHT pressure regulator: downstream pressure preset to 25 PSI

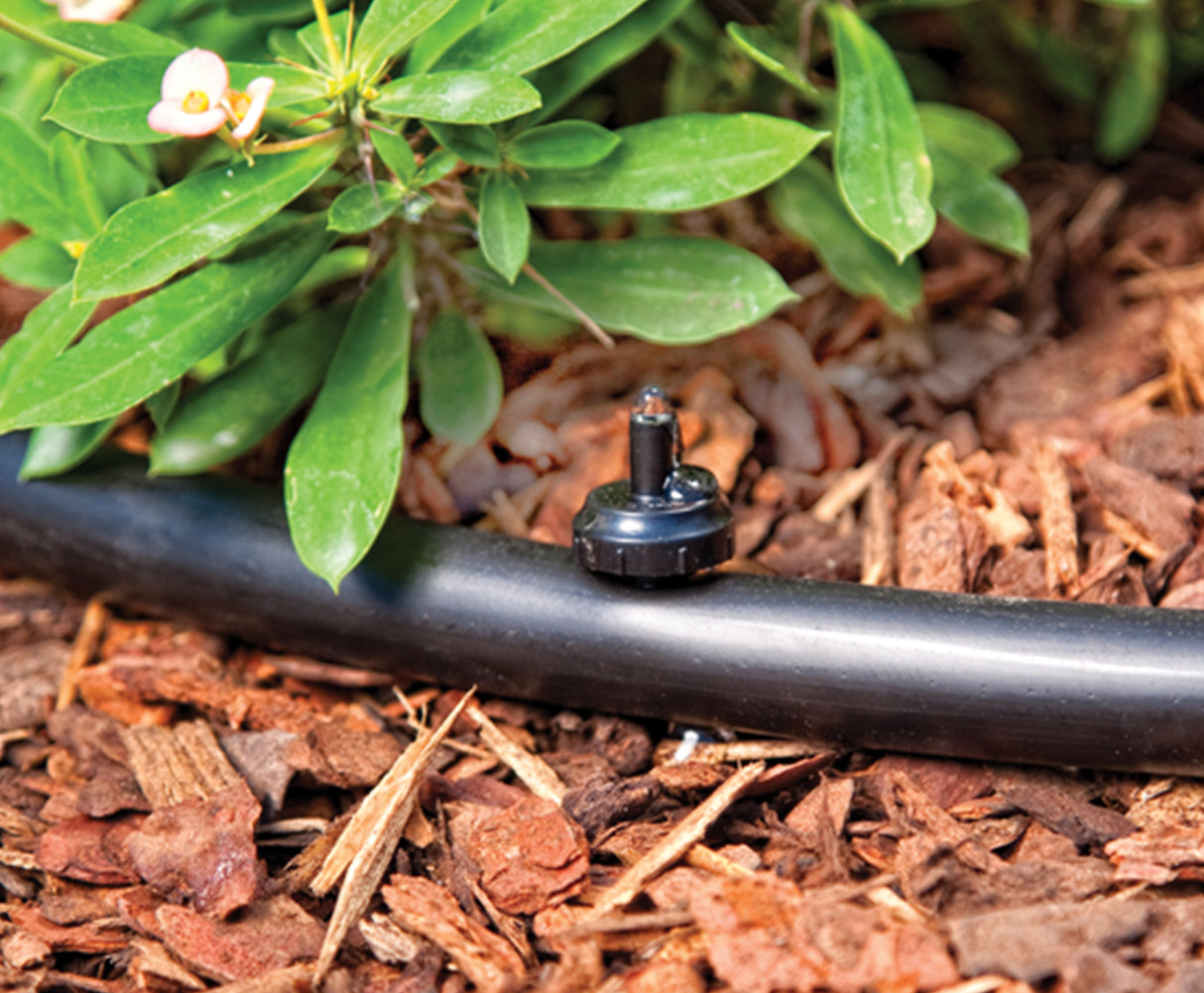

  • PC drip emitter flow rate: 1 GPH
  • Micro sprayer flow rate: 14 GPH
  • Total flow rate: 174 GPH (2.9 GPM)
  • Covers up to 700 sq.ft
  • (Can be expanded)
  • Special Features:
    • 11 Spray jet assemblies with various sprary patterns
    • Assembled with 24" microtube barb on spike
    • 20 PC drippers (1 GPH)
    • 200' of 1/2" polytube
    • 50' of 1/4" microtube

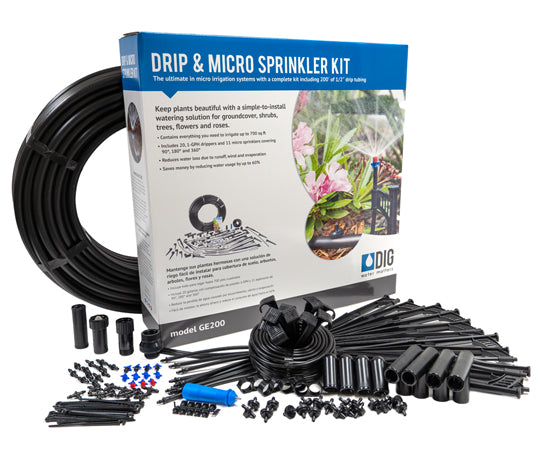

Kit Includes

  • 1 - 25 PSI pressure regulator
  • 1 - Anti-siphon valve (backflow preventer)
  • 1 - Swivel adapter with screen filter
  • 3 - 360° Spray jets on 10/32 threads
  • 4 - 180° Spray jets on 10/32 threads
  • 4 - 90° Spray jets on 10/32 threads
  • 11 - Spike with 24 in. micro tubing and barb
  • 20 - Pressure-compensating 1 GPH drippers
  • 10 - 1/4" in. Barb connectors
  • 12 - 1/4" in. Barbed tees
  • 20 - 1/4" in. Micro tubing holder stakes
  • 4 - 1/2" in. Tees
  • 1 - 1/2" in. Coupling
  • 4 - 1/2" in. Elbows
  • 4 - Figure-eight hose ends
  • 10 - 1/2" in. Tubing holder stakes
  • 10 - Goof plugs
  • 1 - 1/4" in. Micro tubing (50 ft.)
  • 1 - 1/2" in. Poly tubing (200 ft.)
  • 1 - Instructions
