DIG - DC Solenoid w/ 11/16"-12 UN Thread (10 Pack) - S-305DC-10

DIG  |  SKU: S-305DC-10
$16496 $25661

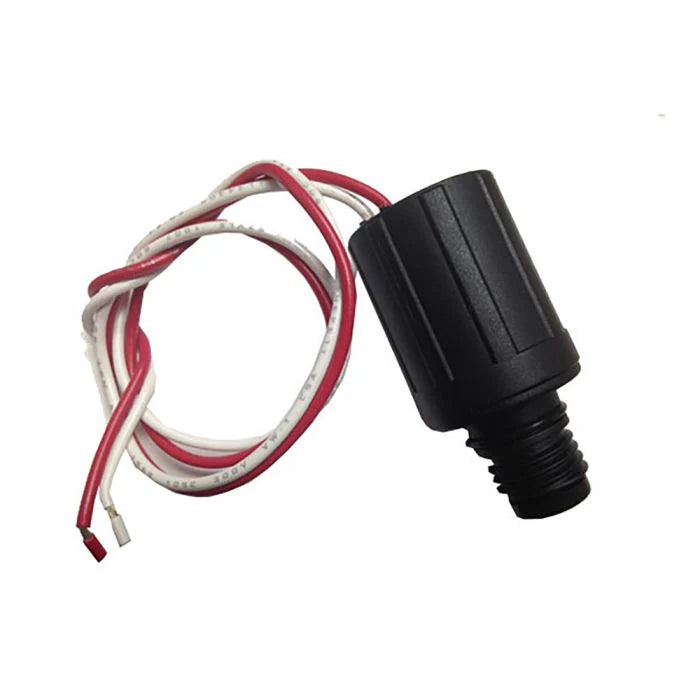

The Unimax solenoid is a 2-way magnetic latching solenoid designed for use with the LEIT-2 system on various brand name valves using an assortment of threaded adpaters. The S-305 can also operate with various 2-wire DC controllers available in the market at a distance of up to 200ft using 14 AMG wire. The S-305 uses a sealed plastic over-molding to prevent water or other contaminants from entering the solenoid housing. The normal actuation of the S-305 is via a bi-directional pulse.



Model
Description

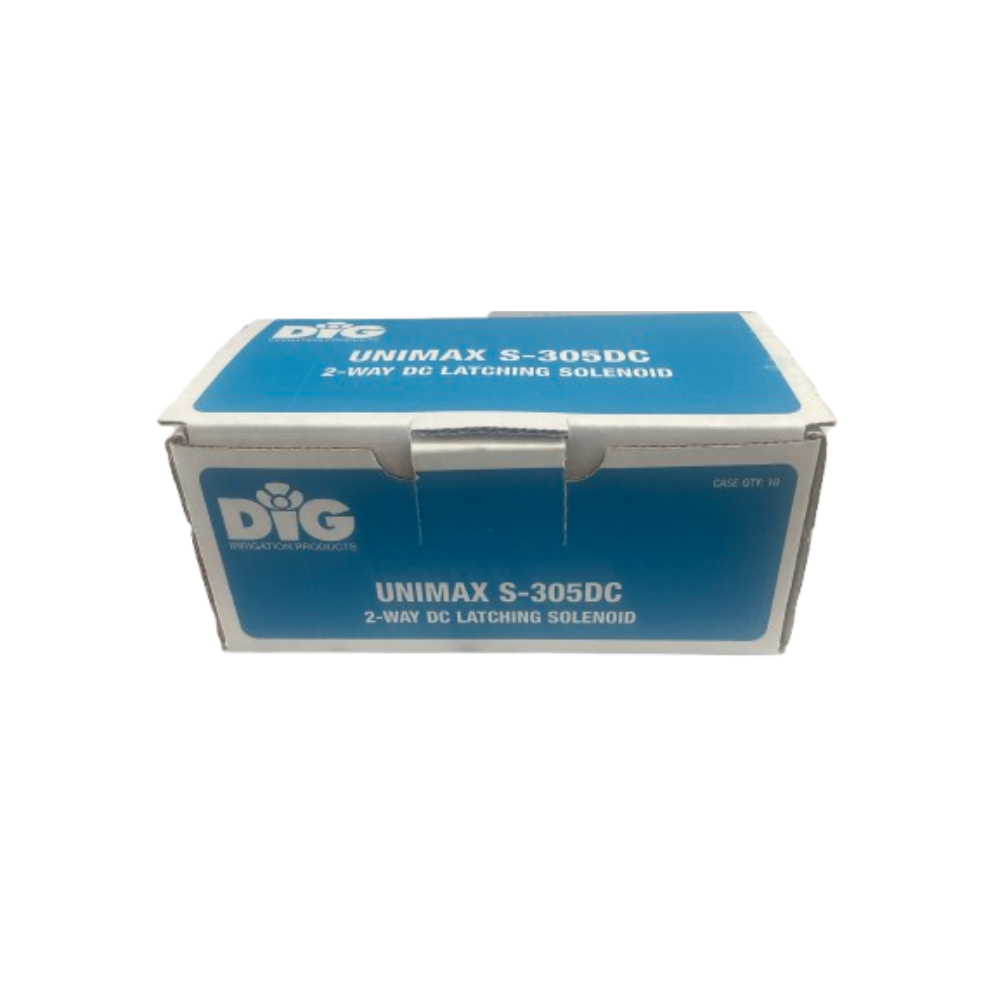

S-305DC-10

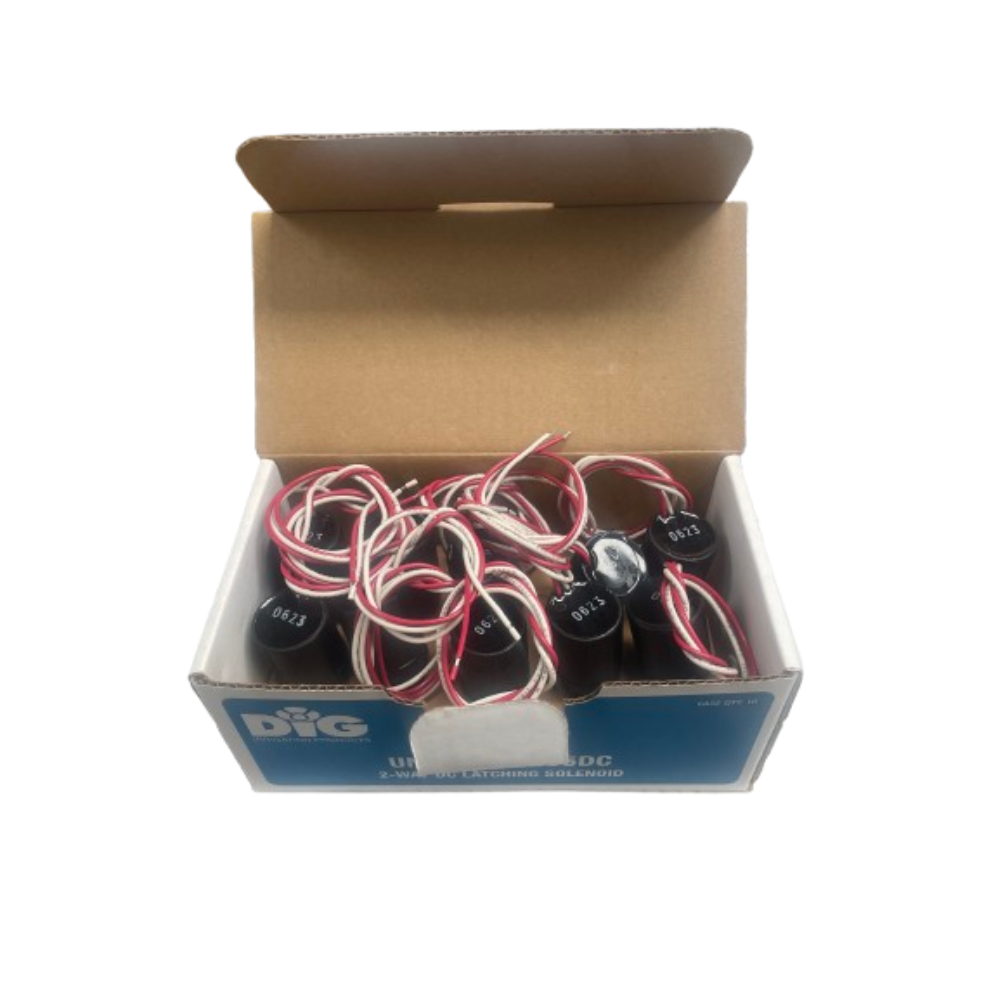

10 Pack DC Solenoid with internal bleed and manual override 6-9 volt



Adapter Ordering Information

PART # DESCRIPTION
30-920 BERMAD series 200, HIT series 500, DOROT series 80,GRISWOLD series 2000, DW and BUCKNER series VB valves
30-921 RAIN BIRD DV, DVF, PGA, PEB (1 in. only), GB, EFB-CP, BPE, PESB (1 in. only) and ASVF valves
30-922 HUNTER series ASV, HPV, ICV, PGV, SRV, IBV and ASVF valves
30-924 IRRITROL series 100, 200B, 205, 217B, 700, 2400, 2500, 2600 and TORO series 220, P220 valves, K-rain Pro Series valves
30-925 SUPERIOR series 950, HUNTER HBV and TORO series 252 valves (1.5 in. and larger)
30-926 RAIN BIRD series PEB and PESB (1 1/2 in. and 2 in. only) valves

  • Adaptable to a wide range of valves using our valve adapters
  • Sealed plastic over molding technique for water proof construction
  • Encapsulated plunger and spring for reliable operation
  • Internal bleed, manual override for manual ON/OFF
  • Valve Adapters:
    • Available for a wide range of plastic or brass valves
    • Made of durable plastic



  • Solenoid Thread: 11/16" -12UN
  • Operating Pressure: 10-150 PSI
  • Control Orifice: .62" +/- .001
  • Temperature Range: 32-170 degrees
  • Leads: 18" red/white



  • 2-way magnetic latching, normally closed, bi directional pulse
  • Coil Operating Date:
    • S-305: coil resistance 5+/- .03 ohms, minimum pulse 10 mS duration at 6-9 volts
    • Red + and White - to latch open
    • Red - and White + to latch close



  • Solenoid Housing Over Mold: Nylon
  • Solenoid Housing Base: Nylon
  • Inside Housing Stainless Steel 430F
  • Plunger Rubber Cap: EPDM
  • "O" Ring: Buna-N
  • Adapter Materials:
    • Adapter: Nylon
    • "O" Ring: Buna-N
    • Sleeve: Poly
