The MP Series Pop-Up Micro Sprayers are designed to provide solutions where low pressure and low flow rate are required. Pop-Ups are helpful where conventional sprinkler systems or drip irrigation would not be practical. The MP series utilizes double seals to ensure reliable operation and long-term performance.

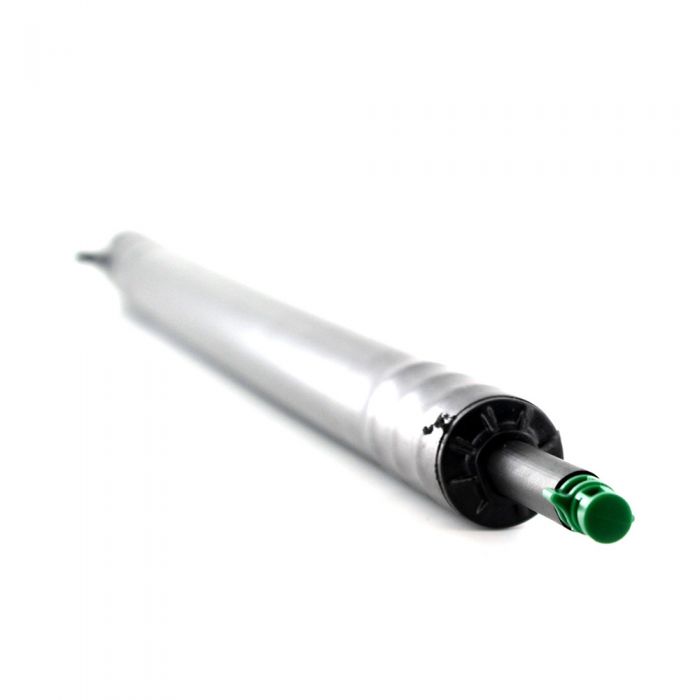

MP-125 1/4' barbed side inlet - 180 degree spray head

• 12" Pop-Up length
• Unique design incorporates a pressure activated, low friction, upper stem seal and a second stage piston seal to ensure positive sealing.
• Can be installed on any size 1/2" poly tubing
• Can be used with 1/4" distribution tubing
• Rugged materials can withstand adverse conditions
• Install below grade
• Flow Rates: .15 -.63 GPH
• Operating Pressure: 15-35 PSI
• Wetting Diameter: up to 5'
• Trajectory: Flat
• Available with 1/2" MNPT thread or 1/4" barbed side outlet
• Precipitation Rate: 2.0-2.8 inch/hour
• Filter Requirement: 120 Mesh
• Body and Piston: Semi-Rigid Polypropylene
• Seals: EPDM and Vinyl
• Base: High Impact Plastic
• Spring: Stainless Steel 304
