DIG - Bluetooth Hose End Timer - BOHE-BT

Save 25%
$59.99
$44.98
SKU BOHE-BT

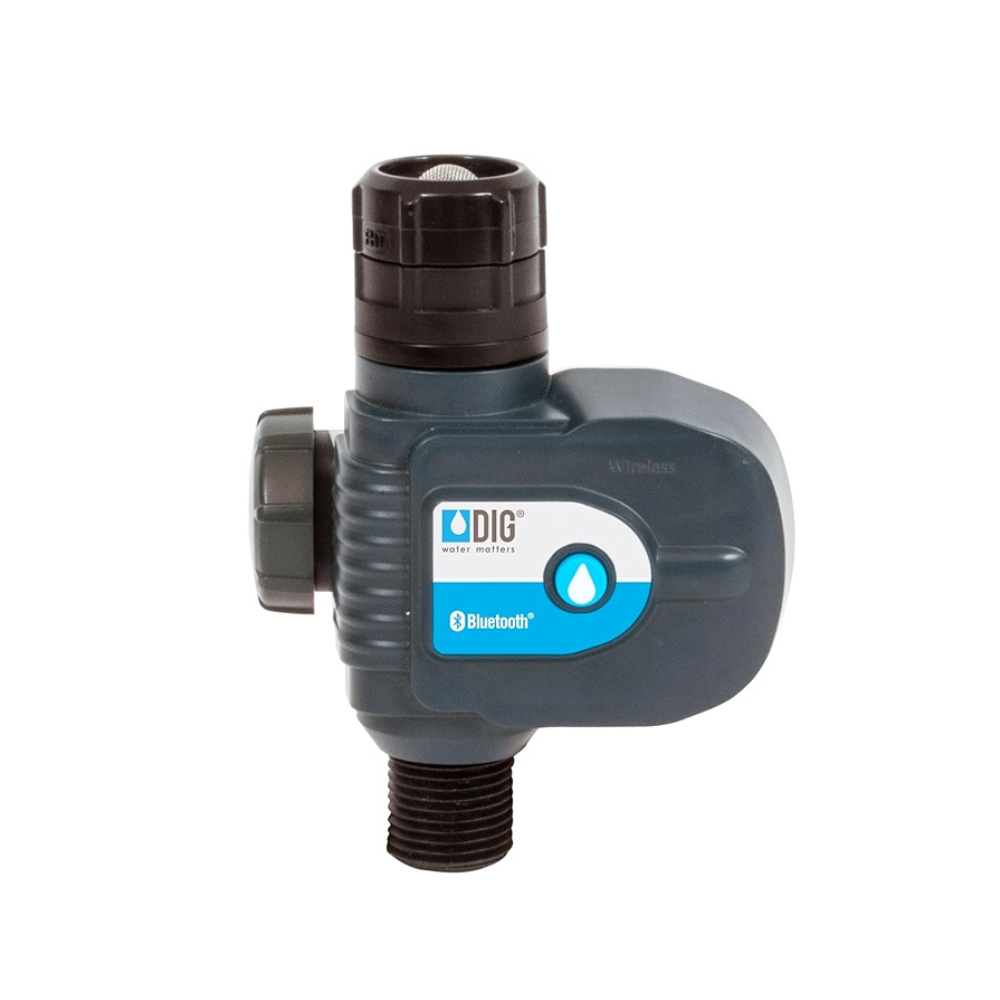

BOHE-BT Bluetooth® Hose End Timer

DIGs BOHE-BT Bluetooth Hose End Timer (tap timer) features Low Energy Bluetooth wireless technology combined with a full-function, waterproof timer to provide long-lasting, reliable irrigation control via your smartphone or tablet. Download DIGs free DIG BTT app to control any number of DIG Bluetooth hose end timers (tap timer) and controllers through supported Android or iPhone smart devices from up to 50 (15 m), line of sight.

The BOHE-BT is ideal for use in residential home garden applications or where AC power is unavailable. It features a waterproof design (IP 64) and can operate for up to one year on two AA alkaline batteries.

BOHE-BT Battery Powered Bluetooth Hose End Timer with 3/4" FHT X 3/4" MHT



Features

  • Operates with any supported Android or iPhone smart device
  • Instantaneous communication with smartphone once connected

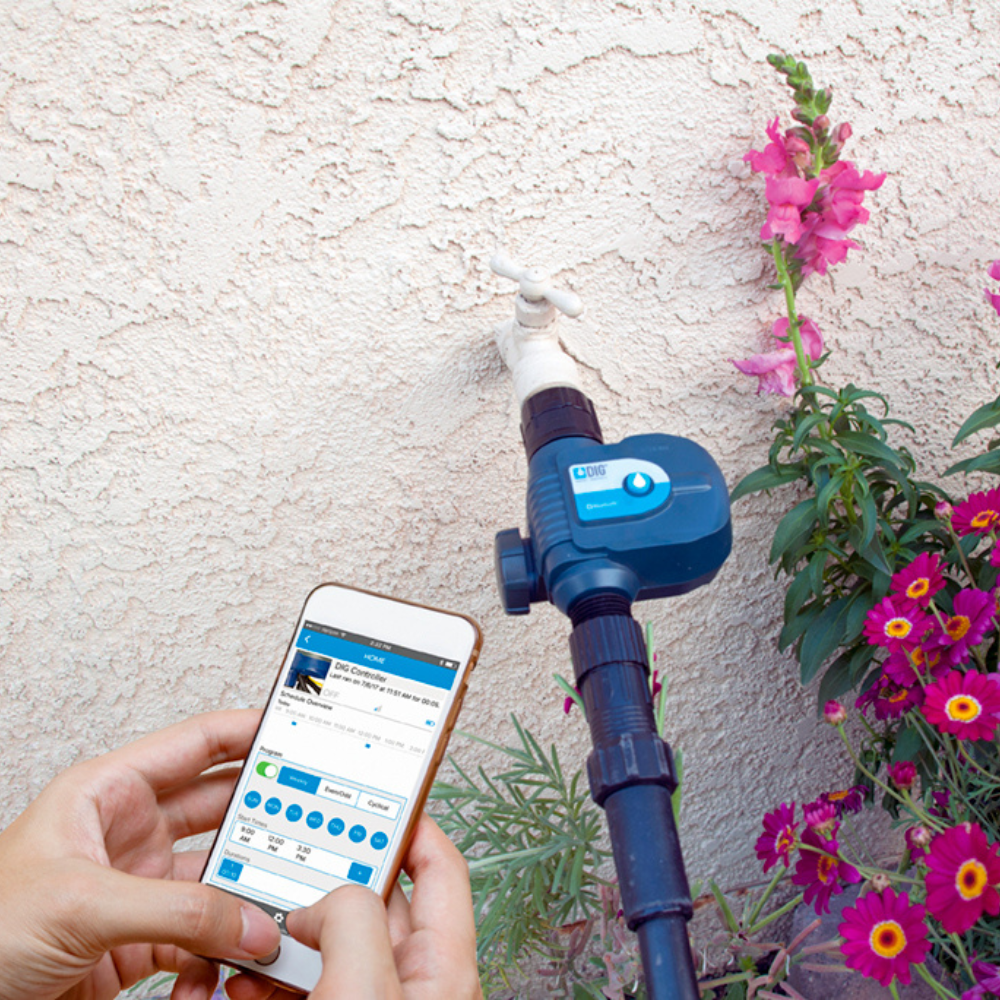

  • Programmed entirely using accompanying smartphone app
  • FCC and EC certified Bluetooth enabled
  • Easy to set up, install and operate

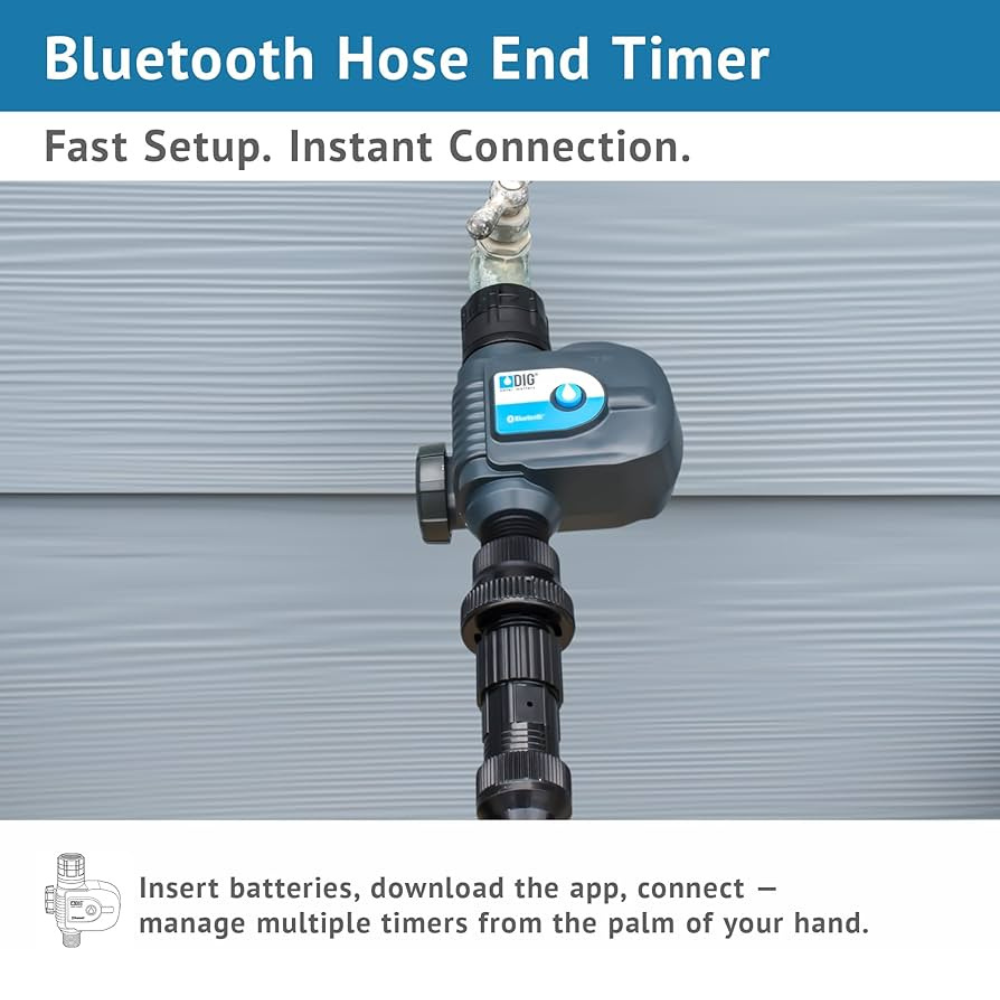

  • Simply install two AA batteries into the waterproof timers battery compartment and download DIGs BTT free app to your smartphone, then connect and control any number of DIGs bluetooth timers from the palm of your hand
  • Available in the following languages, English, Spanish, Italian, Greek, French, Portuguese, Hebrew, Russian and Chinese Simplified (with more to come)
  • Bluetooth communication range: up to 50 (15 m)
  • Non-volatile memory retains program and timer integrity (excluding time)
  • FCC, EU certified, Bluetooth compliance
  • Manual irrigation cycle can be performed via the app, or the timers manual program button or via the solenoid
  • Semi-automatic, automatic or manual operation
  • Available with 3/4" with FHT or BSP thread
  • Latching solenoid with encapsulated plunger for reliable operation
  • Completely waterproof (IP64 certified) - can operate in harsh environments
  • Environmentally friendly; utilizes RoHS compliant components
  • One button to reset the timer to factory defaults or to run manually without a smartphone
  • Battery life up to one year
  • Three-year warranty

Specifications

  • Type: DC latch
  • Waterproof: IP64 certified
  • Connection and program mode: Android or iPhone smartphone, Bluetooth®
  • Controller power input: constant 11-volt
  • Operation interface: one button for reset and manual run
  • Power source: two AA alkaline batteries (not included)
  • Solenoid with enclosed plunger: two-way magnetic latching, normally closed, 7-12 Volt DC with two wire
  • Operating pressure: 10 to 120 PSI (.7 to 8.3 bar)
  • Flow range: up to 14.2 GPM (up to 53 L/H)
  • Temperature range: 38-130°F (3-54°C)
  • Inlet and outlet: female hose thread (FHT x MHT) or British standard thread (FBSP X MBSP)
  • Materials:
    • Timer housing: high-impact plastic
    • Inline valve and solenoid: glass-reinforced nylon

Programming features via smartphone

  • Graphical representation of programming schedule
  • Weekly, Even/Odd days of the month, or 1 to 30-day schedules
  • Five start times per day
  • Program run time from 1 minute up to 11 hours and 59 minutes in 1-minute increments

Hose End Timer Setting

  • View remaining battery life, connection strength, timer current watering status, and last watered information easily from the app
  • System activation feature
  • Rain delay option of up to 99 days with automatic restart for water conservation
  • Budgeting by month of up to 200% in 5% increments
  • Up to nine scheduled off dates per year (preventing the controller from operating on those specific days)
  • Up to 12 months of irrigation run time history information in the palm of your hand
  • Customization through smartphone to name the controller
  • Customization through the smartphone Assigning a picture to a controller using the camera
  • Password protection capabilities

Manual run

  • Manual run with customization duration

Controller Scanning Screen

  • View previous connection information of all timers previously connected to, if you have more than one
  • Contact information to DIG

Pressure Versus Flow rate

Pressure in PSI Flow rate in GPM Flow rate in L/H
10 3.8 14.38
20 7.4 28.01
30 8.6 32.55
40 10.1 38.23
50 10.8 40.88
60 11.1 42.01
70 11.8 44.66
80 12.2 46.18
90 12.7 48.07
100 13.8 52.23
110 13.9 52.61
120 14.2 53.75
