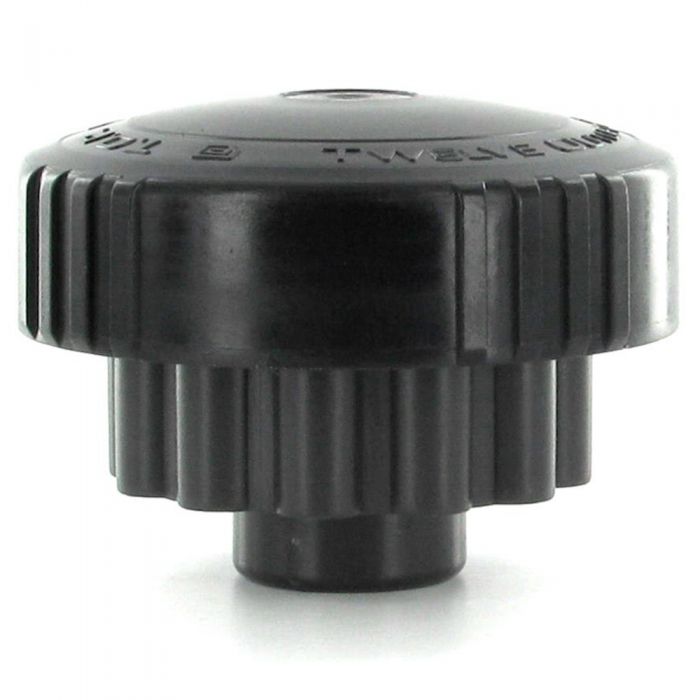

DIG - T.O.P 12-Outlet Manifold - TOP-000

The TOP concept is designed for first time installations or retrofitting an existing sprinkler riser into an efficient 12-Outlet drip irrigation system. The TOP concept utilizes unique self cleaning, pressure compensating emitters enabling long runs with even water distribution from all outlets.

Features

• Use with 1/8" in. (.187 OD) distribution tubing
• or 1/4" in. (.150-.160 ID) distribution tubing when you purchase a bag of T.O.P Converter Barbs.
• 10-012-B12 (Red)
• 10-013-B12 (Green)
• 10-017-B12 (Black)

• Allows for 12 individual pressure compensating, self flushing emitters, in multiple flow rates, while incorporating a self flushing dseign to ensure effortless passage of water and minimize clogging (sold separately)
• Interchangeable emitters available for variable flow rates in a single head (sold separately)
• Color-coded barbs easily identify flow rate at each zone (sold separately)
• Each emitter individually filtered - approx 80 mesh
• Backup mini-disk filter
• Rugged materials to withstand the most adverse conditions
• Install above grade or place below grade in a 6" emitter box
• Operating Pressure: 15-50PSI
• Used with 4mm distribution tubing
• Inlet size: 1/2" in. NPFT
• Filter requirement: 120 mesh
