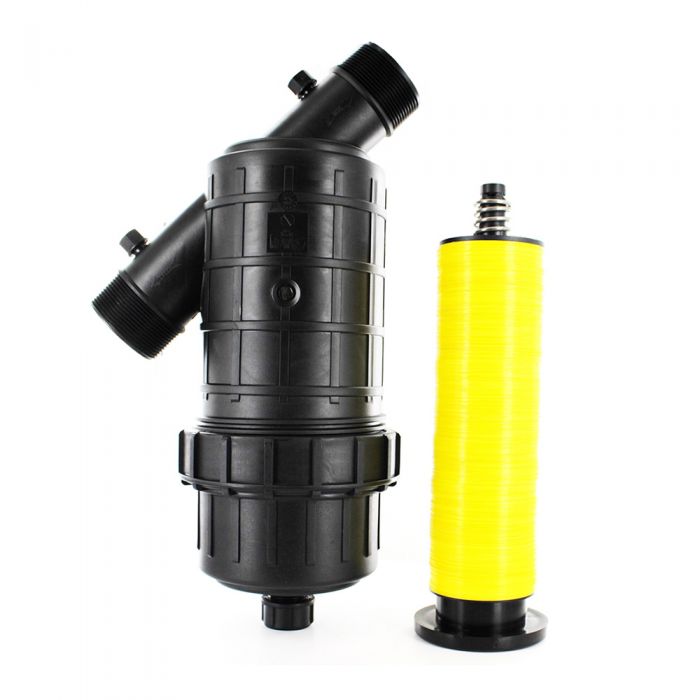

DIG - 80 Mesh Polyester Screen Filter 2" - P80-080D

Save 32%
$146.99
$99.99
SKU P80-080D

The P80 filters are compact and cost effective disc filters with outstanding performance in a wide variety of situations and irrigation conditions.


DIG - P75 and P80 FILTERS:

DIG P75-080DL 1 1/2" MNPT FILTER WITH 80 MESH DISC (YELLOW)
DIG P75-150DL 1 1/2" MNPT FILTER WITH 150 MESH DISC (BLACK)
DIG P80-080D 2" MNPT FILTER WITH 80 MESH DISC (YELLOW)
DIG P80-150D 2" MNPT FILTER WITH 150 MESH DISC (BLACK)


DIG - Replacement Mesh Discs:

DIG 17-041D 80 MESH DISC REPLACEMENT FOR 1 1/2" FILTERS
DIG 17-043D 150 MESH DISC REPLACEMENT FOR 1 1/2" FILTERS


Sediments accumulate on the outer face of the stacked discs, allowing clean water to flow through the stacked discs out of the middle of the filter
Disc elements provide in-depth filtration to retain organic matter
Hydraulic pressure during the filter process causes fastening of the disc and allows for efficient filtering
Discs have excellent resistance to most common chemicals
Easy maintenance; the discs can be extracted for easy cleaning
Interchangeable disc and stainless steel screen elements provides a wide range of filtration degrees
Operating Pressure: up to 120 PSI
Temperature Range: up to 130 degrees farenheit
MNPT inlet and outlet


Filter Materials:

Housing: Polypropylene
O Ring: EPDM
Pressure Testing Ports: Polypropylene
Pressure Testing Seals: Natural Rubber BR


Disc Materials

Grooved Discs: Polypropylene
Disc Cylinder Assembly: PBT
Tightening Spring: Stainless Steel 304
