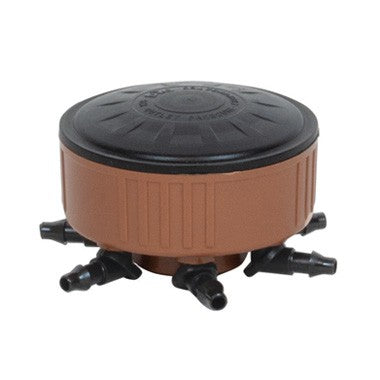

DIG - 6-Outlet Drip Manifold w/ Side Outlet (4.5 GPH) - 06-504

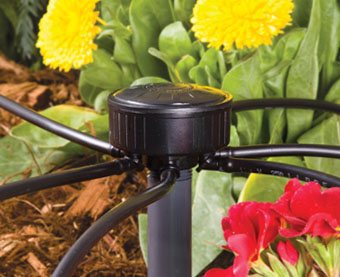

The 6-outlet drip irrigation manifold can be used to convert an existing 1/2" sprinkler riser to a 6-outlet drip zone. Extend 1/4" micro tubing from the drip head to plants and secure the micro tubing with a 1/4" stake. It may be used with other drippers or with 1/4" laser drilled soaker hose.

Features

• Side Outlets with 4.5 GPH per outlet - Black
• Large water passages with rolling diaphragm allow debris to pass through without clogging
• Individual flow-regulated devices for each outlet
• Rugged materials to withstand adverse conditions
• Install above grade or place below grade in a 6” emitter box
• Barbed elbow outlets to hold 1/4” distribution tubing
• Color-coded body for easy identification

Specifications

• Flow rate: 4.5 GPH (17 L/H)
• Operating pressure: 15-50 PSI (1-3.5 BAR)
• Temperature range: up to 122°F (50°C)
• Inlet size: 1/2” FNPT
• Outlet size: 1/4” Barbed Elbow
• Use with 1/4” (.150"-.160” ID) distribution tubing
• Filter requirement: min. of 80 mesh
• Body, covers and flow regulating device: high-impact plastic
• Diaphragms: silicon
• Barbed outlets: acetal

Dimensions

• 2.25” W x 1.5” H (57 mm W x 38 mm H)

** High water temperature in a micro irrigation lateral will influence the flow discharge.
