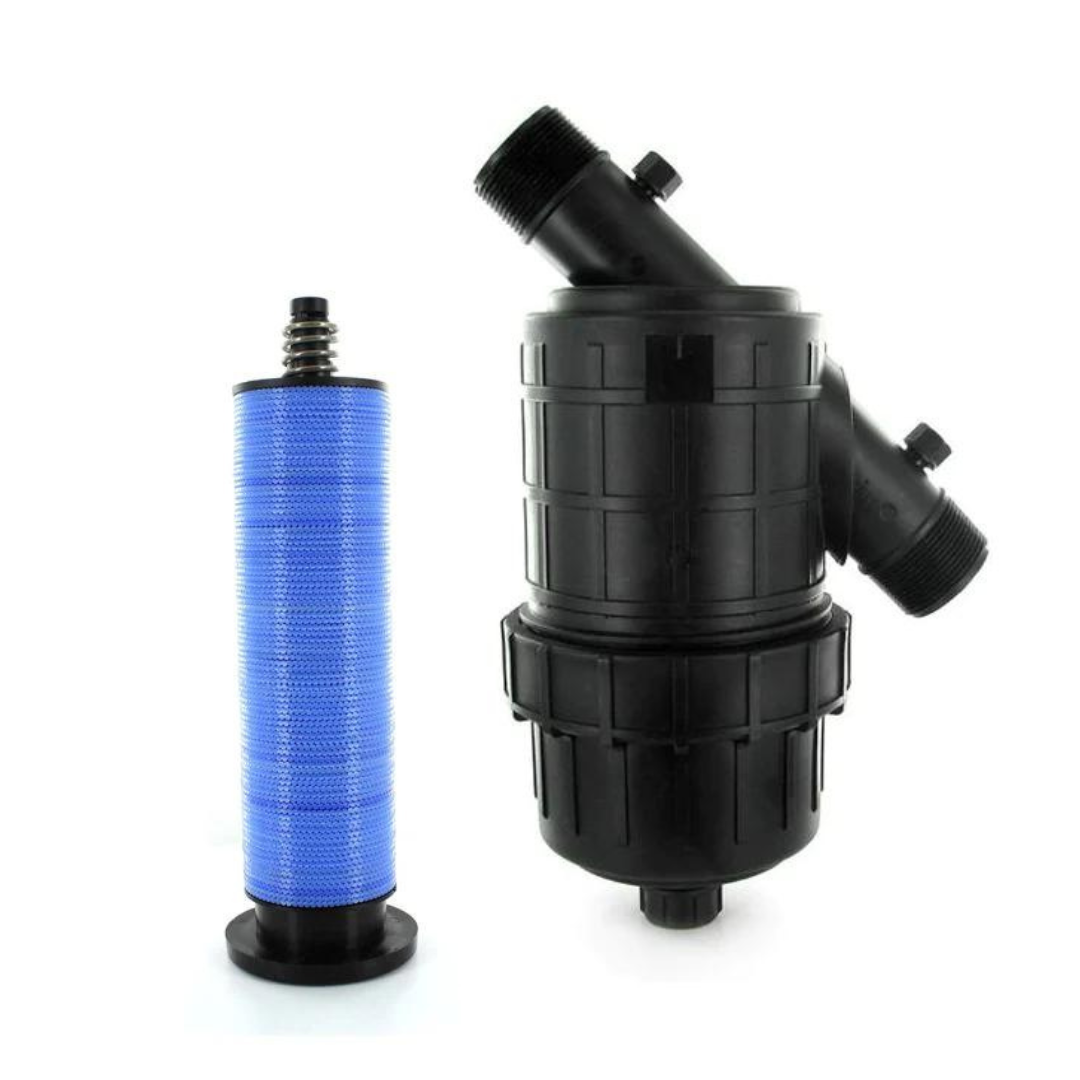

DIG - 40 Mesh Polyester Screen Filter 2" - P80-040D

Save 38%
$150.85
$92.98
SKU P80-040D

The P80 filters are compact and cost effective disc filters with outstanding performance in a wide variety of situations and irrigation conditions.


Features & Benefits

Sediments accumulate on the outer face of the stacked discs, allowing clean water through the stacked discs out of the middle of the filter
Disc elements provide in-depth filtration to retain organic matter
Hydraulic pressure during the filter process causes fastening of the disc and allows for efficient filtering
Discs have excellent resistance to most common chemicals
Easy maintenance; the discs can be extracted for easy cleaning
Interchangeable disc elements provides a wide range of filtration degrees

Disc Materials


Grooved Discs: Polypropylene
Disc Cylinder Assembly: PBT
Tightening Spring: Stainless Steel 304
Filter Materials
Housing: Polypropylene
O-ring: EPDM
Pressure Testing Ports: Polypropylene
Pressure Testing Seats: Natural Rubber BR


Specifications

Operating Pressure: Up to 120 PSI (8.4 BAR)
Temperature Range: Up to 130F (54.4C)
