DIG - 4 GPH Flag Drip Emitters - 06-007

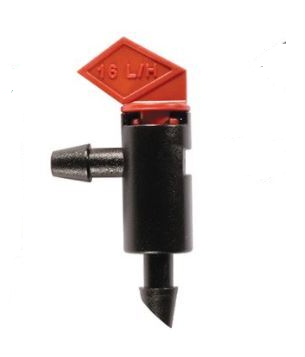

Flag Drip Emitters

The flag drip emitters, available with flow rates of 1, 2 and 4 GPH, have a side barbed outlet for extending 1/4" distribution tubing to the plant location. These spiral flow emitters feature a two-piece construction so that the top insert can be twisted and pulled apart for easy cleaning, and they have a recommended operating pressure of 10-20 PSI with a nominal operating pressure of 15 PSI.

Features

• Self-tapping barbed inlet for easy installation

• Outlet barb for use with 1/4" (.150"-.160" ID) distribution tubing

• Twist-open top with lock for secure operation under pressure and for easy cleaning
• Available in three colors for easy flow-rate identification

• Spiral flow through a large-flow-path water passage reduces likelihood of clogging
• Durable high-impact plastic
• Resistant to chemicals and fertilizers used in landscape application
• Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions

Specifications

• Flow rates and color codes:

  • 1 GPH (4 L/H) color code – black

  • 2 GPH (8 L/H) color code – green

  • 4 GPH (12 L/H) color code – red
• Operating pressure: 10-20 PSI (.7-1.4 BAR)

• Inlet side: 1/4" self-tapping barb
• Outlet side: 1/4" barb
• Filter requirement: minimum of 150 mesh
• Material: body and cover: polypropylene
