DIG - 3'' MPT SUPRA-TS Semi-Automatic Screen Filter (155 Mesh) - PN3SAS-155
DIG - 3'' MPT SUPRA-TS Semi-Automatic Screen Filter (155 Mesh) - PN3SAS-155 is backordered and will ship as soon as it is back in stock.
Why so “cheap” at CheapSprinklers? Low prices by design — same parts, no compromise
Our prices are lower because of how we run our business — not because the product is different — and we pass those efficiencies directly on to you.
You’re receiving the same brand-new, factory-sealed item sold by big-box, supply-house, or bloated online-warehouse sellers — delivered direct to you, for less.
- Bulk Purchasing: We buy in high volume to lower per-unit cost
- Low Overhead: No physical storefronts or unnecessary middlemen
- Price-First Model: Our business is built around keeping everyday prices as low as possible — so you can put the savings toward other projects or your business.
- Fast & Efficient Fulfillment: Streamlined US warehouse operations keep costs down and orders moving fast.
The Result: Genuine products with full manufacturer warranty — delivered fast, without paying inflated big-box, supply-house, or bloated online-warehouse markups for the same parts.
CheapSprinklers Product Guarantee How we guarantee authenticity and warranty coverage
All products sold by CheapSprinklers are brand new and factory sealed. This DIG Drip Filter (PN3SAS-155) is sourced directly from DIG and ships from us in new-in-box retail packaging.
We’ve been sourcing and supporting irrigation products for professionals and DIYers through both brick-and-mortar and online channels since 1981.
If there’s ever an issue, CheapSprinklers stands behind what we sell and will help coordinate any warranty claim or replacement.
- Genuine New DIG Drip Filter: no knockoffs, no refurbished, no old stock
- Factory Sealed: shipped in original new-in-box retail packaging
- Current Production Inventory: no discontinued or clearance stock
- Complete DIG Warranty: full manufacturer coverage begins when your order is delivered
The Result: Peace of mind. You’re installing top-quality equipment — and if there’s ever an issue with this Drip Filter, you’re fully supported by CheapSprinklers and DIG.

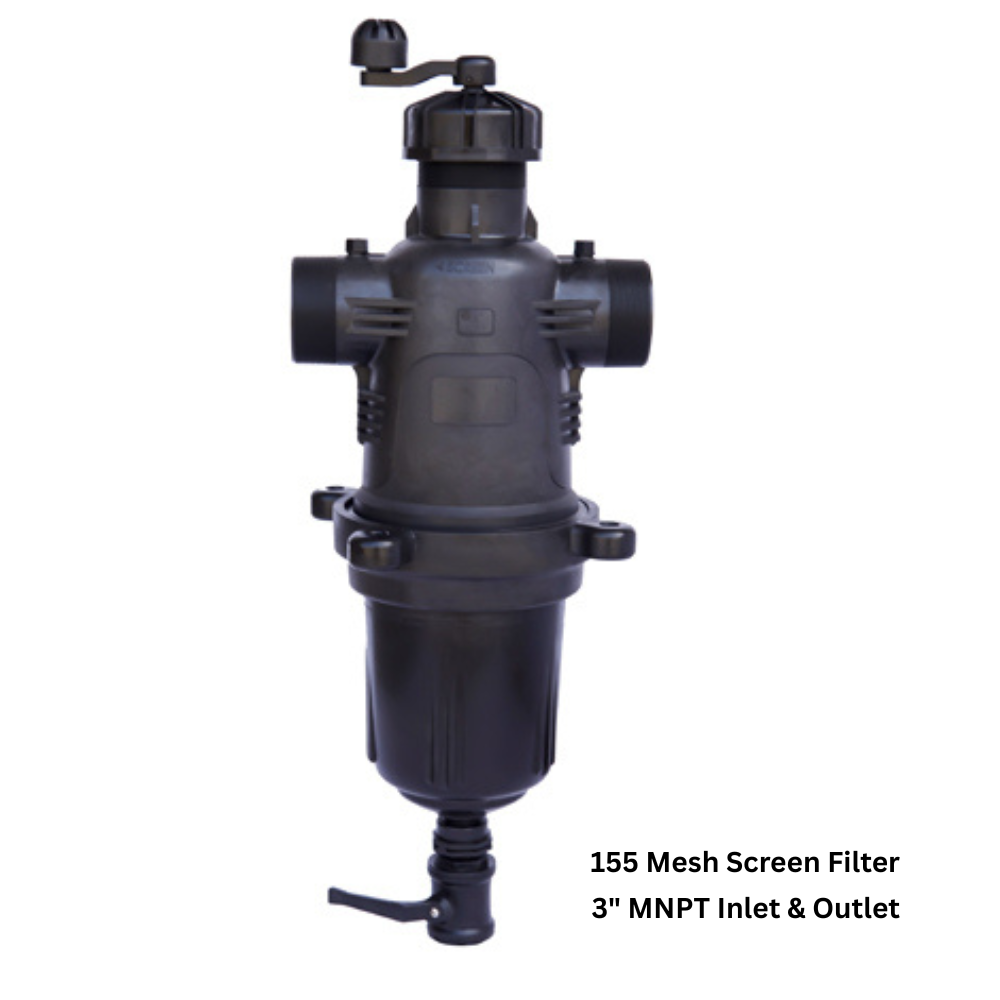

3″ MPT SUPRA-TS™ Series Semi-Automatic Screen Filter w/ 155 Mesh Screen
DIG Introduces the innovative and and patented SUPRA-TS™ semi-automatic screen filter series, for easy effective filtration. The plastic filters are designed for long life and service in hard conditions, utilizing a user-friendly flushing cycle by opening the drain valve and rotating the handle, eliminating the need for manual filter cleaning and expensive fully automated systems.
Applications
- Agriculture, landscape irrigation, industrial processes, and aquaculture applications for maintaining water quality, particularly protecting drip emitters, micro sprinklers, and other sensitive applications.
- Supports installation with low quality water sources.
Specifications
- Maximum working pressure: up to 145 PSI (10 bar)
-
Maximum recommended flow rate: 220 GPM (40 m³/h)
- Screen Mesh Size: 155 mesh (Green)
- Filtration area: 147 square inches (950 cm²)
- Connection Size: 3” MPT Inlet and Outlet | Flush valve: 2” | Secondary service port: ½”
- Maximum operating temperature: 60°C (140°F)
- Semi-automatic flushing data requirements: Overhead handle flushing time: 15–30 seconds | Secondary port flushing time: 10 seconds | Minimum flushing pressure: 29 PSI (2 bar) | Flushing flow rate at 30 PSI (2 bar): 40 GPM (9 m³/h) | Flushing flow rate at 43 PSI (3 bar): 52 GPM (12 m³/h)
- Construction materials: Filter body & cover: RPA (reinforced polyamide), PP | Seals: EPDM | Filter elements (spine): RPP (reinforced polypropylene)
Features
- Simple Operation: The cleaning process is quick and easy, requiring the opening of the flush valve at the filter bottom and a quarter turn of the overhead handle for 15–30 seconds.
- High Efficiency: Provides better protection by filtering smaller particles than semi-automatic screen filters of the same filtration grade.
- Small Footprint: Compact design fits a wide range of applications in various locations.
- Versatile Applications: Suitable for agriculture, landscape irrigation, and industrial use.
- Options: Clogging indicator allows for easy monitoring of filter head-loss conditions.
- Flow Rate Capability: 110 GPM
- Large Filtration Area: Achieves higher organic and inorganic contaminant holding capacity and lower flushing frequency.
-
Construction: Made from polymeric materials with high resistance to corrosion and chemicals, and UV-protected for longer life.
Manuals & Literature
-
Box QuantityN/A
