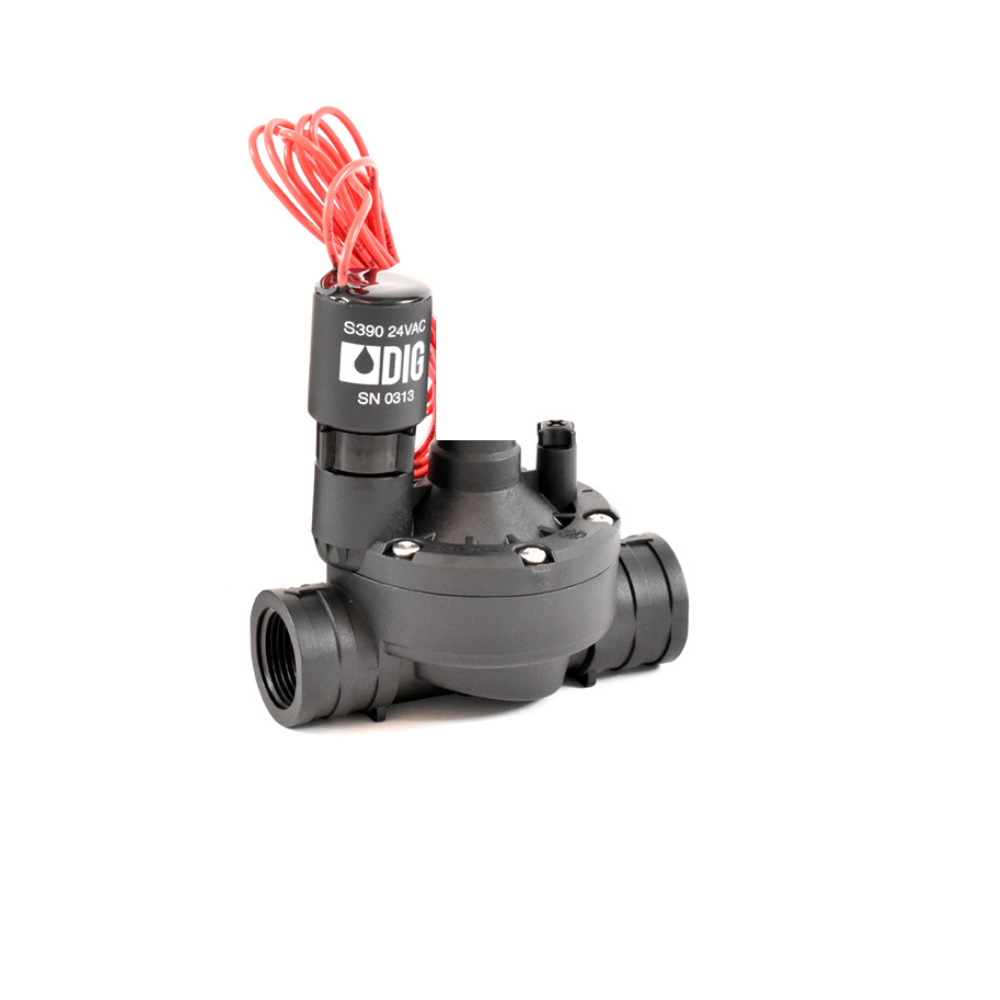

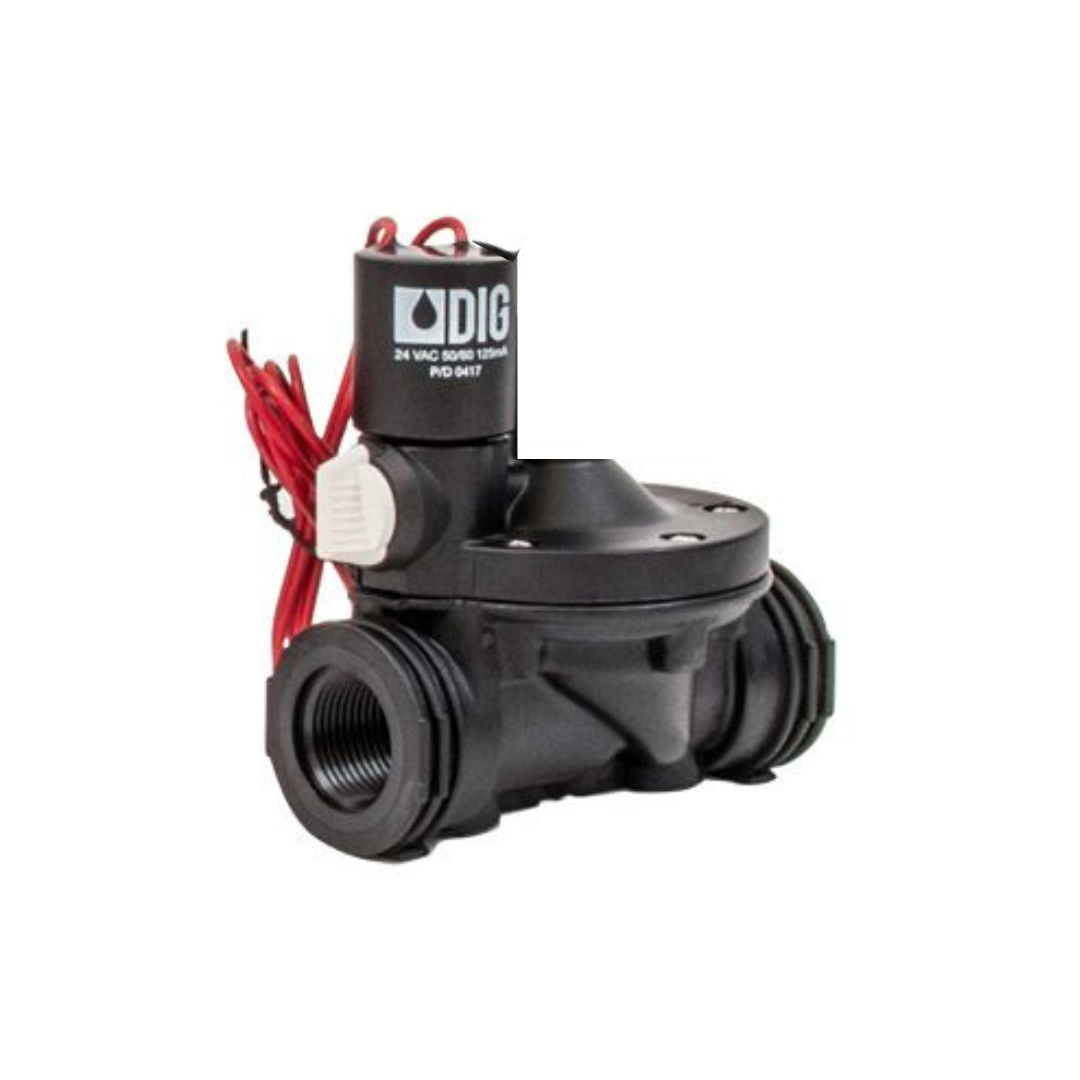

DIG - 3/4" In-line Valve w/ 24 VAC Solenoid (No Flow Control) - 33-001

DIG  |  SKU: 33-001
$2276 $3540


3/4″ In-line AC valve, No Flow Control

DIG's 3/4'', 24VAC heavy-duty plastic inline control valves are designed for reliable operation with superior hydraulic performance. The plastic control valves demonstrate exceptional performance for optimal control of any irrigation system, featuring an internal manual opening via the solenoid for smooth opening and closing. The 24 VAC plastic control inline valves are suitable for above- or below-grade installation in residential and commercial applications.

Specifications
  • Body Style: inline (globe) valve
  • Operating pressure: 10 to 150 PSI (.7 to 10.5 bar)
  • Valve size: 3/4" FNPT
  • Operating flow range: 0.1 to 28 GPM (.23 to 6.4 m3h)
  • Solenoid: 24 VAC (50 -60 cycles)
    • Current: .032A (7.7 VA)
    • Holding Current: 0.16A (3.84 VA)
    • Power Consumption: 1.7/2.2 watts
  • Material:
    • Body: glass-reinforced nylon
    • Bonnet: glass-reinforced nylon
    • Solenoid: glass-reinforced nylon
    • Spring and pins: Stainless steel
    • Diaphragm: Nylon fabric reinforced polyisoprene (NR)
  • Dimensions:
    • 4.5" H x 4.25" L x 3.12" W, (11.5 cm H x 11 cm L x 8 cm W)
    • Valve solenoid thread housing: 3/4"-20 UNES-2A
Features
  • Constructed of a UV-resistant, glass-reinforced nylon bonnet with a stainless steel spring and non-corrosive materials
  • High flow with low pressure loss
  • Operates in a wide range of flow rates
  • Normally closed
  • Manual or automatic operation
  • Smooth valve opening and closing prevents pressure surge hazards
  • The valve's only moving component is its diaphragm with no shaft, seals, or bearings within the water passage
  • Unobstructed flow path for higher flow rate with lower head loss
  • Highly durable to chemical use with an irrigation system
  • Flexible balanced diaphragm and seal
