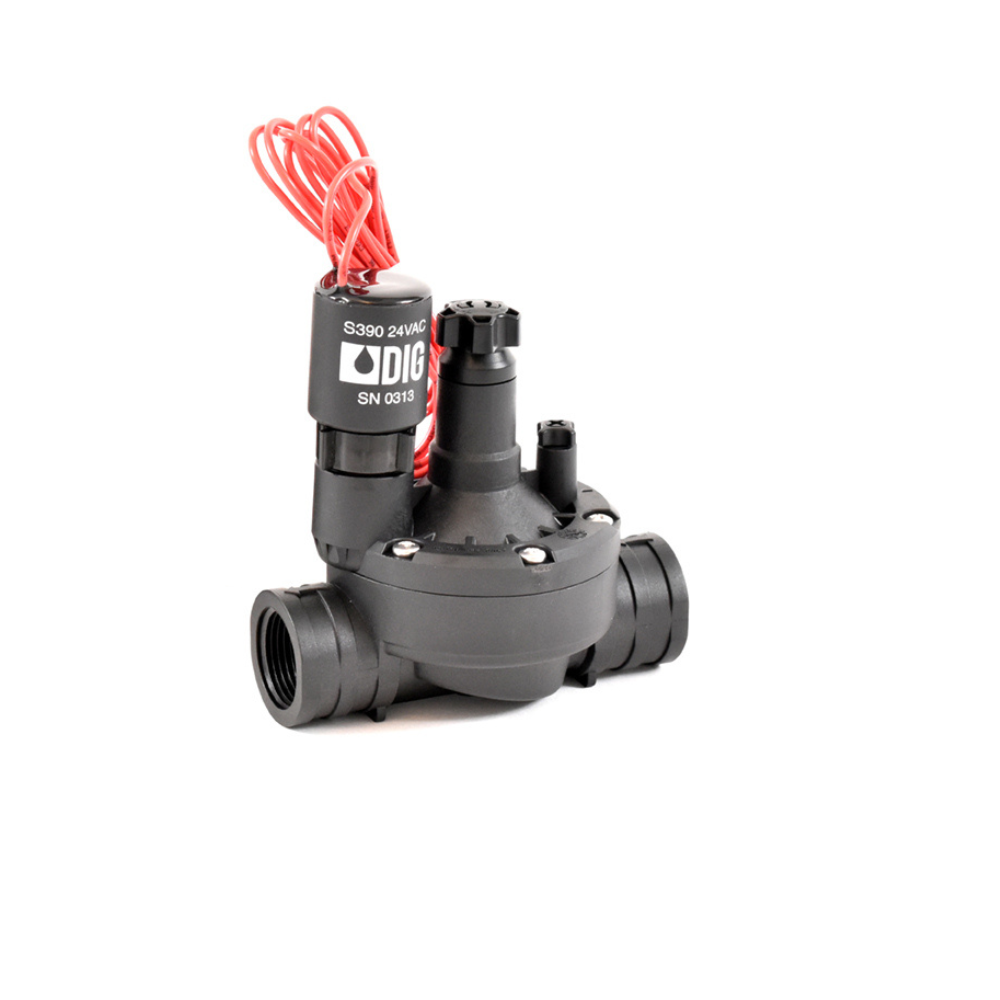

DIG - 3/4" In-line Valve w/ Flow Control & 24 VAC Solenoid - 170SV-075

3/4″ In-line AC valve with Flow Control (Old Part# 33-014)

DIG’s 3/4” 24VAC heavy-duty plastic inline control valves are designed for reliable operation with superior hydraulic performance. The durable plastic control valves demonstrate exceptional hydraulic performance for optimal control of any irrigation system, featuring a flow control handle for flow adjustment and manual shutoff, and internal manual opening via the solenoid for smooth opening and closing. The 24 VAC plastic control inline valves are suitable for above- or below-grade installation in residential and commercial applications.

Specifications

• Body Style: inline (globe) valve
• Operating pressure: 10 to 150 PSI (.7 to 10.5 bar)
• Valve size: 3/4" FNPT
• Temperature Range: up to 135º Fahrenheit (0-57º C)
• Operating flow range: 0.1 to 20 GPM (0.23 to 4.54 m3h)
• Solenoid: 24 VAC (50 -60 cycles)
  • Current: .032A (7.7 VA)
  • Holding Current: 0.16A (3.84 VA)
  • Power Consumption: 1.7/2.2 watts
• Material:
  • Body: glass-reinforced nylon
  • Bonnet: glass-reinforced nylon
  • Solenoid: glass-reinforced nylon
  • Spring and pins: Stainless steel
  • Diaphragm: Nylon fabric reinforced polyisoprene (NR)

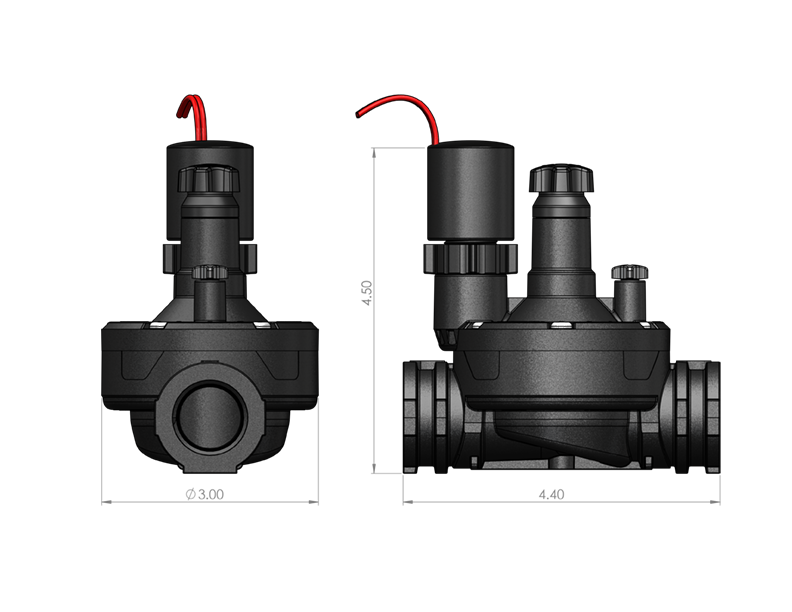

• Dimensions:
  • 4.5" H x 4.40" L x 3.00" W, (11.5 cm H x 11 cm L x 8 cm W)
  • Valve solenoid thread housing: 3/4"-20 UNES-2A

Features

• Designed for reliable operation and excellent hydraulic performance
• Features a flow control handle for flow adjustments and manual shutoff to zero
• Very low flow feature for a wide range of applications

• Internal and external manual opening
• Normally Closed
• 3/4″ globe style
• Rugged, reinforced self-cleaning diaphragm provides reliable operation
• High impact nylon reinforced body and cover
• High durability to chemical use with an irrigation system
• Accepts DIG latching solenoid for use with DIG battery operated controller
• For drip applications, use a minimum of 150 mesh screen or disc filter installed upstream
• 170SV-075 is a direct replacement for the DIG 33-014 valve.
