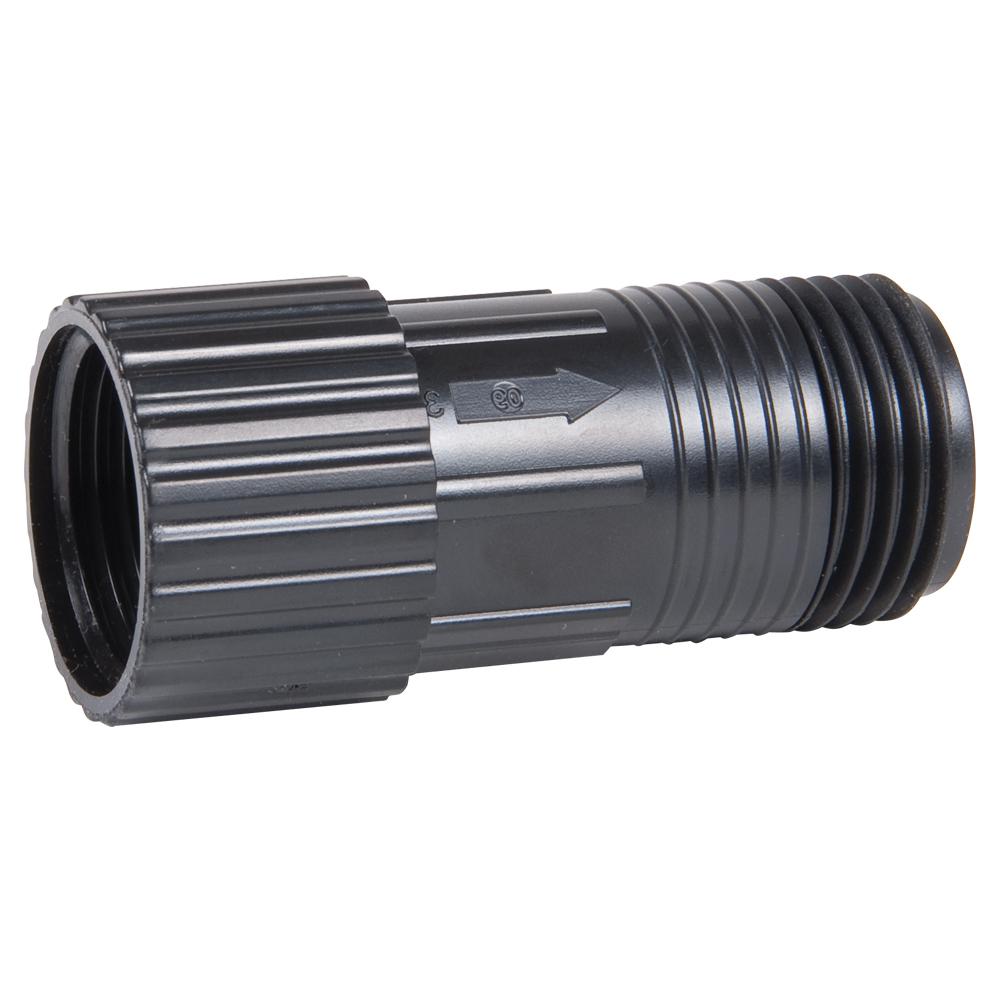

DIG - 25 PSI Pressure Regulator (3/4'' FPT x MPT) - D46P

25 PSI Preset Pressure Regulator Inlet 3/4 in. FPT x Outlet 3/4 in. MPT "“ (grey)

DIG's 25 PSI preset pressure regulators (hose thread) are used to reduce and regulate the incoming pressure of a household's water entering a drip irrigation or micro sprinkler system to the appropriate operating pressure of 25 PSI, which is within the range of recommended operating pressures for a micro irrigation system. The pressure regulators' design includes few moving plastic parts and a diaphragm which regulates itself in reaction to the overall system back pressure. They offer exceptional pressure control and provide consistent outlet pressures over a wide range of incoming pressures.

Features

• Available with 3/4" female hose thread or pipe thread to fit all standard hose or pipe thread connections
• Reduces incoming water pressure to the ideal working pressure for a drip system
• High-strength ABS construction for durability
• Compact construction of non-corrosive plastic materials
• Low pressure loss and high flow rate
• DIG's drip irrigation products may be exempt from residential and commercial watering restrictions (check local codes)

Product specifications

• Operating pressure: up to 100 PSI
• Flow rate: up to 10 GPM
• Preset pressure: 25 PSI
• Size:
  • Model D46 3/4" female hose thread x 3/4" male hose thread (FHT x MHT)
  • Model D46P 3/4" female pipe thread x 3/4" male pipe thread (FNPT x MNPT)
• Color: black for hose thread and gray for pipe thread
• Temperature range: up to 130°F
• Materials:
  • Body: high impact plastic
