DIG - 1 1/2'' MPT Drip Filter w/ Stainless Steel Screen (200 Mesh) - P75-200L

DIG  |  SKU: P75-200L
$7464 $7539


Delivery and Shipping

Add some general information about your delivery and shipping policies.

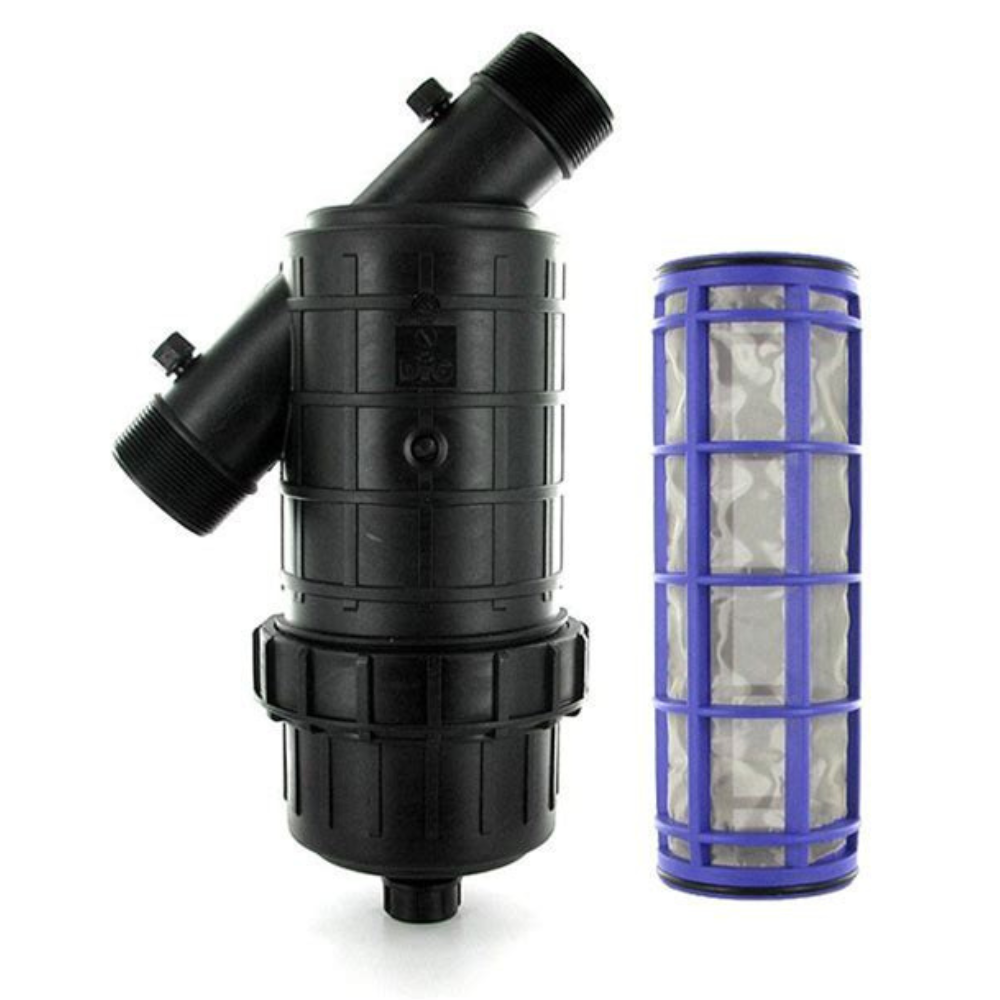

DIG’s 1-1/2″ plastic screen filters with pipe thread are commonly used in commercial and agriculture installations to protect drip irrigation, micro sprinklers and other low-flow systems from debris that might enter the line and cause blockage of the emitters. The low-maintenance screen filters provide reliable and trouble-free operation by removing fine sand and other particles that could otherwise block the small water passages of the drip and micro sprinklers.

Specifications

  • Flow rates: Up to 66 GPM (20 m3/h)
  • Screen filtration area: 85.6 sq. inch (552 cm2)
  • Operating pressure: up to 120 PSI (8.4 BAR)
  • Temperature range: up to 130°F (54°C)
  • Stainless-steel screen: 200 mesh
  • Inlet and outlet size: 1-1/2" MNPT with 3/4" MPT cap
  • Filter Materials
    • Housing: polypropylene
  • Screen: Stainless steel with polyester body
    • O-ring: EPDM
    • Pressure testing port: polypropylene
    • Pressure testing seals: natural rubber BR

Features

  • Large filter area and low friction loss allows long intervals between cleaning
  • All-purpose filter with a wide range of stainless-steel screens from 80 to 180 microns to suit a wide range of filtration requirements
  • Designed to reduce operating costs and deliver high quality filtrate in a minimum space
  • Screens have excellent resistance to most common chemicals
  • Easy maintenance – the screen can be extracted from the filter for cleaning
  • Interchangeable screen and disc elements within the filter
  • Access point on the inlet and outlet side for pressure measurement test
  • Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions
