DIG - 3/4'' FHT x MHT Drip Filter w/ Polyester Screen (200 Mesh) - P09-200
DIG - 3/4'' FHT x MHT Drip Filter w/ Polyester Screen (200 Mesh) - P09-200 is backordered and will ship as soon as it is back in stock.

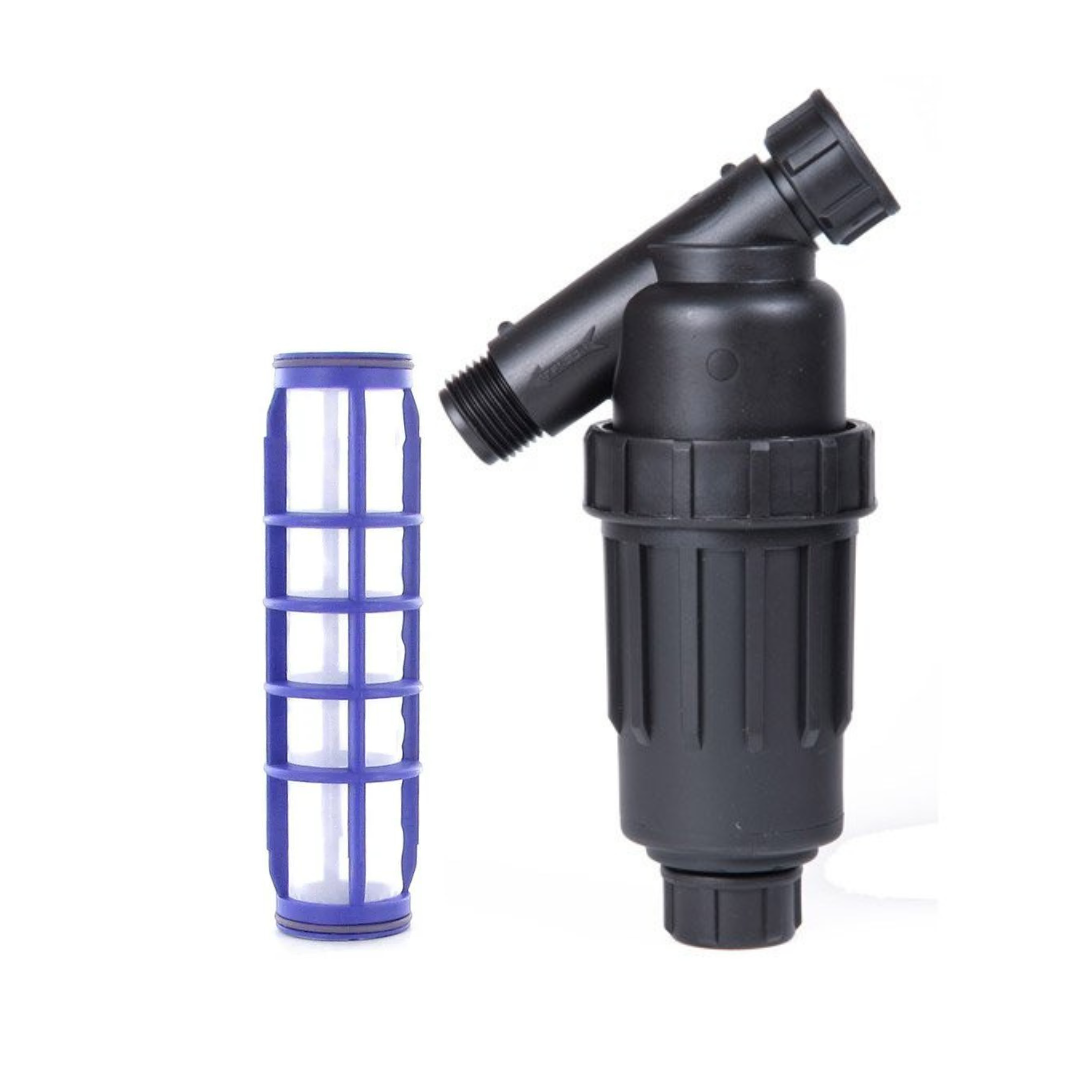

3/4″ FHT x MHT Plastic Screen Filter w/ 200 Mesh Poly screen & flush cap
DIG’s heavy-duty plastic screen filters with hose thread are commonly used in residential and commercial installations to protect a drip irrigation system from debris that might enter the line and cause blockage of the emitters. The low maintenance, inexpensive screen filters provide reliable and trouble-free operation by removing fine sand and other particles that could otherwise block the small water passages of the drip and micro sprinklers.
Specifications
- Flow rates: Up to 13 GPM (3.5 m3/h)
- Screen filtration area: 14.9 sq inch (96 cm2)
- Operating pressure: up to 120 PSI (8.4 BAR)
- Temperature range: up to 130°F (54°C)
- 200 Mesh Polyester screen
- Inlet and outlet size: 3/4" Female Hose Thread x Male Hose Thread with 3/4" FHT cap
- Materials:
- Housing: polypropylene
- O-ring: EPDM
- Pressure testing port: polypropylene
- Pressure testing seals: natural rubber BR
Features
- All-purpose filter with a 200 mesh polyester screen
- Screens have excellent resistance to most common chemicals
- Color-coded replacement screens for easy identification
- Large filter area and low friction loss allows long intervals between cleaning
- Flush cap for easy flushing of particles trapped in the bottom of filter.
- Recommended to be installed and used after the control valve.
- Easy maintenance – the screen can be extracted from the filter for easy cleaning
- Interchangeable screen and disc elements
- Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions
Chemical Resistance
- Excellent resistance to most mineral acids
- Limited resistance to alkali depending on concentration and temperature
- Excellent resistance to low concentration of lye
- Screen Materials
- Cylinder: polyester
- Screen: polyester
- O-ring: EPDM
