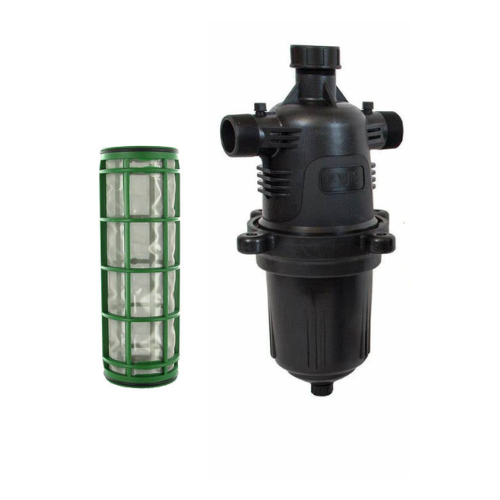

DIG - 2'' MPT 'T' Drip Filter w/ Stainless Steel Screen (200 Mesh) - PN2TMPT-200

DIG’s Heavy Duty 2″ MPT screen filters with reinforced bodies incorporate an easy-to-remove filter cover and feature robust housing design, including a large filtration area to ensure high performance and long life. The 2” filters accept a wide range of interchangeable, color-coded screens and disc elements to suit any specific application for wells and municipal water supplies. The large filtration area offers nominal head loss and high flow rates. 2” "T" angle version for use in agriculture, turf, greenhouse and nursery applications.

• Primary, secondary or backup filtration for the protection of irrigation systems against clogging in agriculture, municipalities, greenhouses, nurseries, landscapes and turf.

Specifications

• Flow rates: Up to 110 GPM (25 m3/h)
• Screen filtration area: 147 sq inch (950 cm2)
• Operating pressure: up to 150 PSI (10 BAR)
• Temperature range: up to 140°F (60°C)
• Available with a manual drain valve located at the bottom of the filter and with two pressure testing ports
• 200 Mesh Stainless Steel screen (Green)
• Horizontal, vertical inlet and vertical outlet
• Inlet and outlet size: 2" MNPT with 3/4" NPT Flush Cap
• Filter weight: 10 lb (4.6 kg)
  • Filter dimensions:
  • Thread to thread: 11" (28 cm)
  • Height of thread to bottom: 17.5" (45 cm)
  • T-filter: Height of thread to bottom: 22.8" (58 cm)
• Filter Materials:
  • Housing and cover: PP and GF
  • Locking ring: PA and GF
  • O-ring: EPDM
  • Screen spine: PP and stainless steel
  • Pressure testing port: polypropylene
  • Pressure testing seals: natural rubber

Features

• Special locking grip rings design enables easy opening of the filters without the use of tools, even after months under operation.
• A wide range of filtration degrees for various applications
• Large filter area with low friction loss allows long intervals between cleaning
• Greater filtration capacity for effective protection of the irrigation system
• Can operate under pressure of up to 150 PSI
• Designed to reduce operating costs and deliver high quality filtrate in a minimum space
• Made of superior strength material for excellent mechanical strength, and corrosion resistance for most common chemicals
• Easy maintenance – the screen can be extracted from the filter for cleaning
• Interchangeable screen elements
• Access point on the inlet and outlet side for pressure measurement test
• Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions
