DIG - 2'' MPT SUPRA-TS Semi-Automatic Screen Filter (80 Mesh) - PN2SAS-080
DIG - 2'' MPT SUPRA-TS Semi-Automatic Screen Filter (80 Mesh) - PN2SAS-080 is backordered and will ship as soon as it is back in stock.

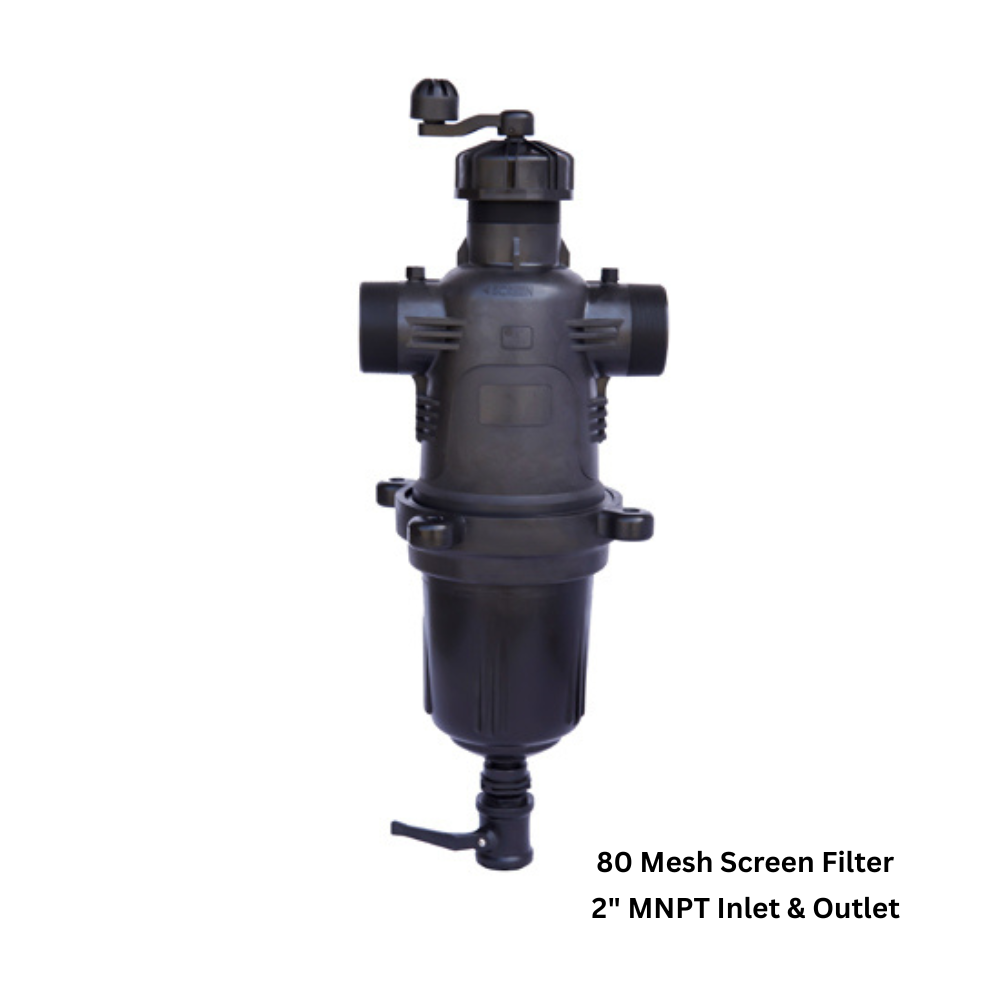

2″ MPT SUPRA-TS™ Series Semi-Automatic Screen Filter w/ 80 Mesh Screen
DIG Introduces the innovative and and patented SUPRA-TS™ semi-automatic screen filter series, for easy effective filtration. The plastic filters are designed for long life and service in hard conditions, utilizing a user-friendly flushing cycle by opening the drain valve and rotating the handle, eliminating the need for manual filter cleaning and expensive fully automated systems.
Applications

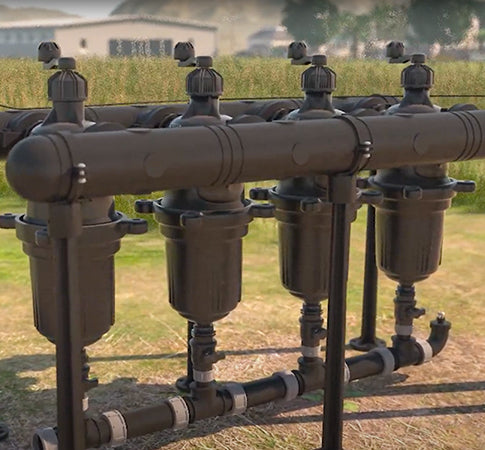

- Agriculture, landscape irrigation, industrial processes, and aquaculture applications for maintaining water quality, particularly protecting drip emitters, micro sprinklers, and other sensitive applications.

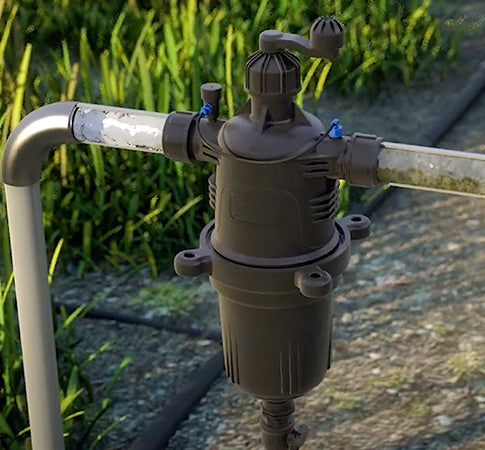

- Supports installation with low quality water sources.
Specifications
- Maximum working pressure: up to 145 PSI (10 bar)
-
Maximum recommended flow rate: 110 GPM (25 m³/h)
- Screen Mesh Size: 80 mesh (yellow)
- Filtration area: 147 square inches (950 cm²)
- Connection Size: 2” NPT Inlet and Outlet | Flush valve: 2” | Secondary service port: ½”
- Maximum operating temperature: 60°C (140°F)
- Semi-automatic flushing data requirements: Overhead handle flushing time: 15–30 seconds | Secondary port flushing time: 10 seconds | Minimum flushing pressure: 29 PSI (2 bar) | Flushing flow rate at 30 PSI (2 bar): 40 GPM (9 m³/h) | Flushing flow rate at 43 PSI (3 bar): 52 GPM (12 m³/h)
- Construction materials: Filter body & cover: RPA (reinforced polyamide), PP | Seals: EPDM | Filter elements (spine): RPP (reinforced polypropylene)
Features
- Simple Operation: The cleaning process is quick and easy, requiring the opening of the flush valve at the filter bottom and a quarter turn of the overhead handle for 15–30 seconds.
- High Efficiency: Provides better protection by filtering smaller particles than semi-automatic screen filters of the same filtration grade.
- Small Footprint: Compact design fits a wide range of applications in various locations.
- Versatile Applications: Suitable for agriculture, landscape irrigation, and industrial use.
- Options: Clogging indicator allows for easy monitoring of filter head-loss conditions.
- Flow Rate Capability: 110 GPM
- Large Filtration Area: Achieves higher organic and inorganic contaminant holding capacity and lower flushing frequency.
-
Construction: Made from polymeric materials with high resistance to corrosion and chemicals, and UV-protected for longer life.
