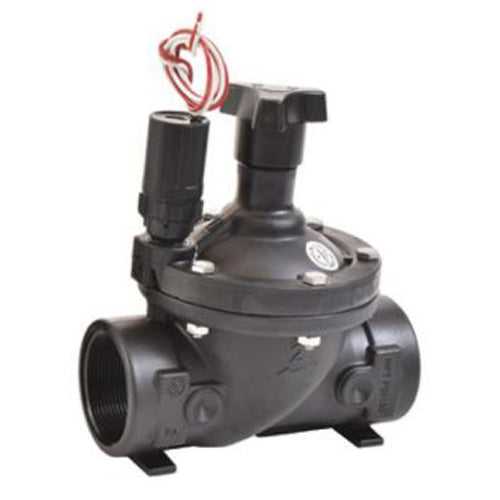

DIG - 2'' In-Line Valve w/ Flow Control & DC Latching Solenoid - 305DC-200
DIG - 2'' In-Line Valve w/ Flow Control & DC Latching Solenoid - 305DC-200 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
2″ Inline DC Valve for use with 720A, 740A, 760A and LEIT-1 controllers
DIG’s 305DC-200 series plastic inline globe valves with a 6-12 VDC, two-way magnetic latching solenoid operate with DIG’s battery operated controllers and LEIT. The globe valves use an encapsulated, watertight, two-way magnetic latching solenoid that requires minimal power to operate. The 305DC-200 are heavy-duty control valves constructed of weather-resistant, glass-reinforced nylon and a stainless steel spring to provide superior hydraulic performance with balanced opening and closing at a pressure rate of up to 150 PSI.
Specifications
- Type: globe valve with two-way magnetic latching solenoid
- Operating pressure: 10 to 150 PSI, (.7 to 10.5 bar)
- Body style: globe
- 2" NPT female inlet and outlet
- Operating flow range:
- 30 to 160 GPM (6.8 to 36 m3h)
- Solenoid: 6 -12 VDC, two-way magnetic latching, normally closed, bidirectional pulse
- Voltage rate: 6 -12 VDC
- Coil Resistance: 4.7Ω +/- 0.3
- Pulse Width: minimum 10 mSec
- Operation mode:
- Red + and white – latch to open
- Red – and white + released to closed
- Control orifice: 0.65 +/- 0.0002 (1.7 mm)
- Lead wires: 18” (45 cm) UL 1015, AWG 16, 300V - red and white wires
- Temperature range: up to 150 Fahrenheit (0-65 C)
Features
- Constructed of glass-reinforced nylon with a stainless steel spring; non-corrosive materials
- High flow with low pressure loss
- Normally closed
- Easy inline maintenance
- Smooth valve opening and closing prevents pressure surge hazards
- Rugged, reinforced self-cleaning diaphragm provides reliable operation even with contaminated water
- Flow control handle for water flow adjustment and manual shutoff
- Manual internal bleed override via the solenoid
Dimensions:
- Valve dimension: 2": 8.5" H x 6.12" L x 5.75" W, (21 cm H x 16 cm L x 14.5 cm W)
- Solenoid dimension top: 3.1" (7.9 cm) L X 1.18" (3.0 cm) D
- Solenoid dimension bottom: 3.1" (7.9 cm) L x 1.18" D (3.0 cm)
- Valve solenoid thread housing: 3/4”-20 UNES-2A
- Adapter thread: 11/16”-12 UN female thread X male ¾”-20male thread
- Solenoid thread: 11/16”-12 UN
- Material:
- Valve body and cover: Glass reinforced nylon
- Diaphragm: Nylon fabric reinforced polyisoprene (NR)
- Metal parts and screws: Stainless Steel 303 and 430F
- Solenoid body: Glass reinforced nylon
- Solenoid plunger rubber cap: EPDM 80
-
