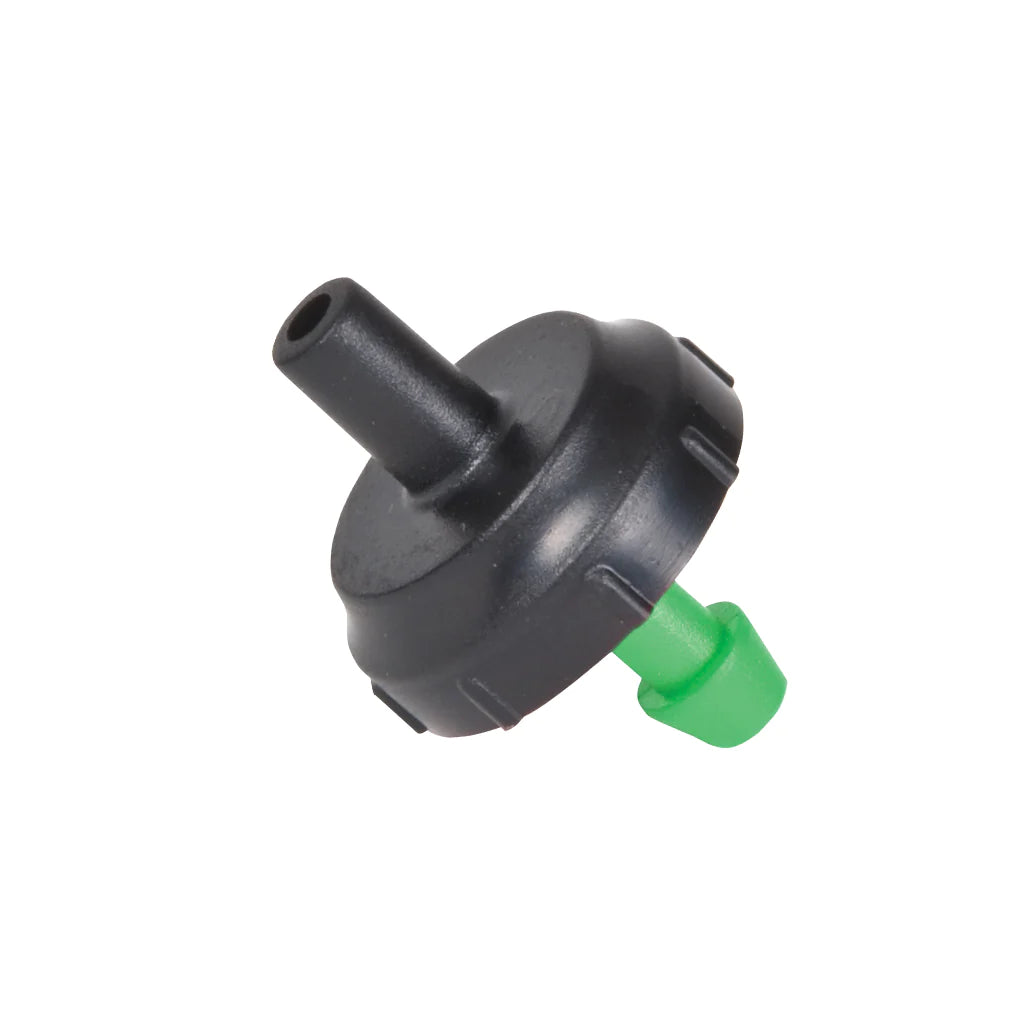

DIG - 2 GPH Pressure Compensating Button Dripper - 06-015

DIG Pressure Compensating (PC) Drip Emitters are designed to produce a consistent flow rate over a pressure range of 10 to 45 PSI. The PC Drip Emitters are continuously adjusting to varying water pressures, ensuring a constant flow from each drip emitter regardless of pressure fluctuations or varying elevations along the line. Used for shrubs groundcovers and trees, the PC Drip Emitters offer a convenient way to water both new and existing landscapes, including difficult terrain such as slopes, oddly shaped areas and sites with high winds.

Specifications

• Flow rates and color codes:
  • 2 GPH (8 L/H) Color Code - Green
• Operating pressure: 10-45 PSI (.7-3.5 BAR)
• Inlet size: 1/4" (4 mm) barb
• Outlet size: .2" (5 mm) male nipple
• Materials: High impact ABS
• Diaphragm: silicone
  • Filter requirement: minimum of 150 mesh

Features

• The labyrinth water passage with floating silicon diaphragm design provides a self-cleaning mechanism at the water outlet
• Barbed inlet for installation into drip tubing or 1/4" distribution tubing
• Male nipple outlet for a placement of multi outlet adapter or bug caps
• Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions
• Available in three color-coded flow rates for easy identification
• Pressure compensation enables the use of longer laterals with smaller diameter tubing.

Dimensions

• .95" W x 1" H (24 mm W x 25 mm H)
