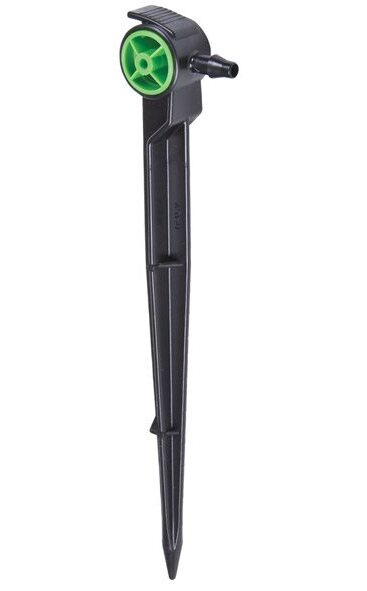

DIG - 2 GPH Pressure Compensating Dripper on Stake - 06-055
DIG - 2 GPH Pressure Compensating Dripper on Stake - 06-055 is backordered and will ship as soon as it is back in stock.

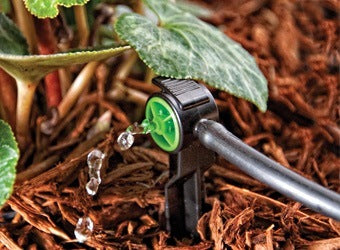

DIG's PC Drip Emitter Stakes with a barbed inlet are turbulent-flow-path pressure compensating drip emitters, designed to produce a consistent flow rate of 2 GPH under a pressure range of 10 to 40 PSI. The emitter stakes contain a diaphragm that continuously adjusts to varying water pressures regardless of elevation or any pressure fluctuation along the laterals, ensuring even and consistent flow rates from each drip emitter. They can be used for any type of planting, including pots and baskets, and with long runs of drip tubing. Use 1/4" micro tubing to extend the emitter stakes from the drip tubing directly to the plant.
Product Specifications
- Maximum operating pressure: up to 40 PSI
- Recommended operating pressure: 25 PSI (25 PSI pressure regulator is recommended)
- Pressure compensating range: 10 to 40 PSI
- Flow rate: black with 2 GPH
- Height (with stake): 5.7"
- Model: 2 GPH, Green
- Filter requirement: minimum of 150 mesh
- Material:
- Housing: polypropylene
- Stake: polypropylene
- Diaphragm: silicone
Features
- Ideal for all plant layouts, including planter boxes, window boxes, closely planted shrubs, vines and roses, or around roses, shrubs and trees
- Efficient and simple design combines PC drip emitter and stake
- Used for commercial and residential applications
- Allows water to drip directly to the root zone, delivering a constant deep watering
- Turbulent flow path and pressure compensating with predefined flow rate
- Secure and easy installation into micro tubing without glue or clamps
- Rugged materials can withstand adverse conditions
- Provides uniform flow rate from each drip emitter stake along the line
- Made with high-impact UV-resistant plastic
- Built-in diaphragm ensures constant flow rates at a range of 15 to 40 PSI
- DIG's drip irrigation products may be exempt from residential and commercial watering restrictions (check local codes)
*This information is based on flat terrain with 0% elevation
-
